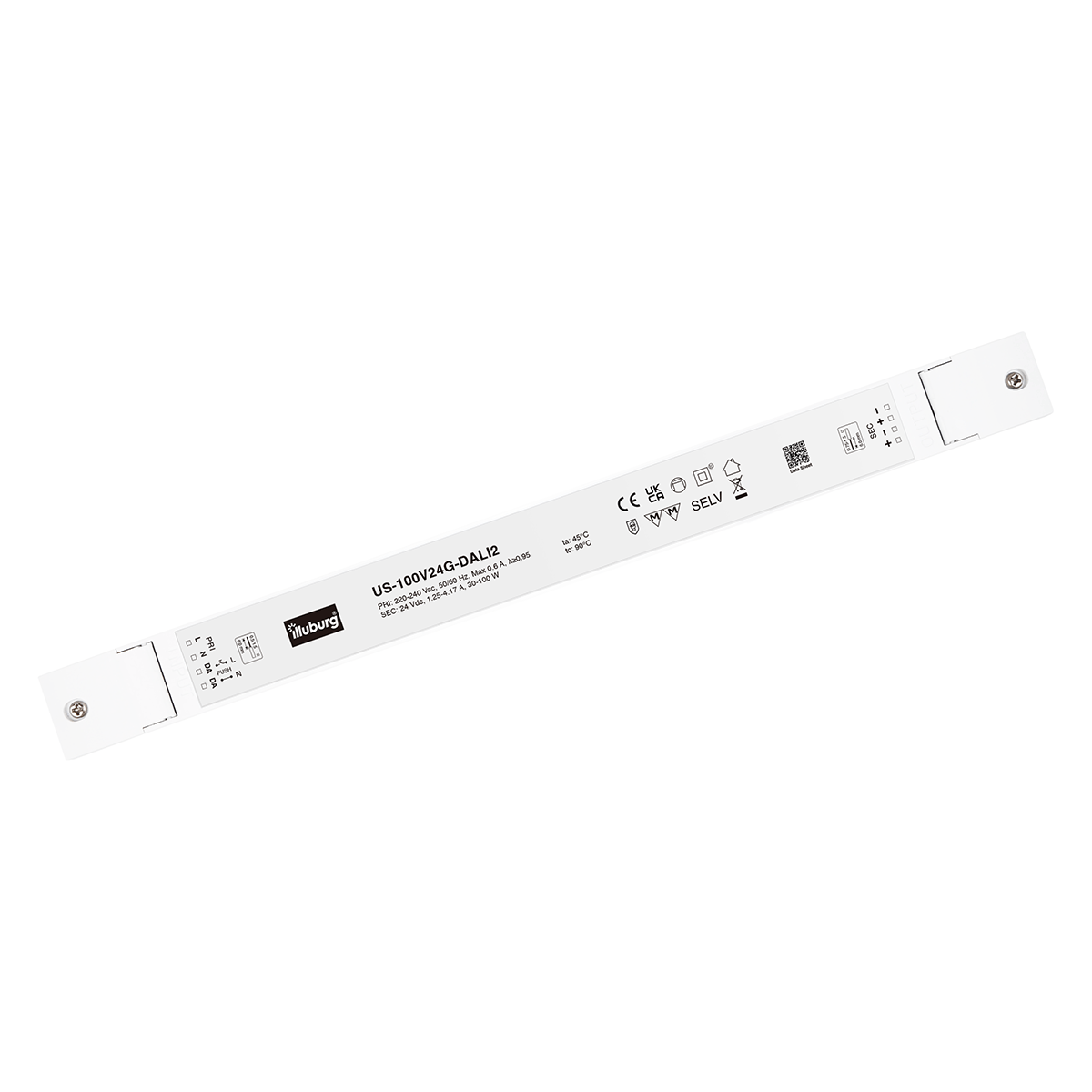

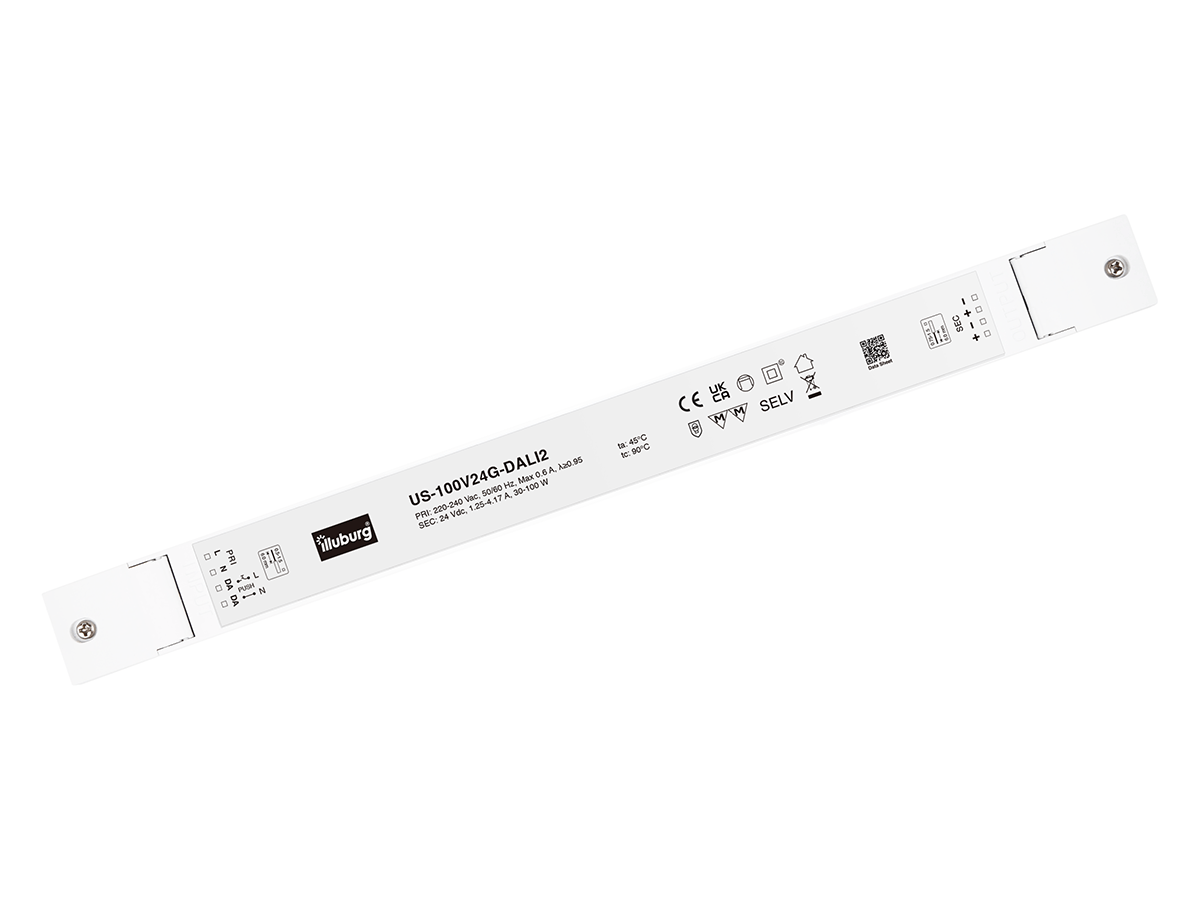

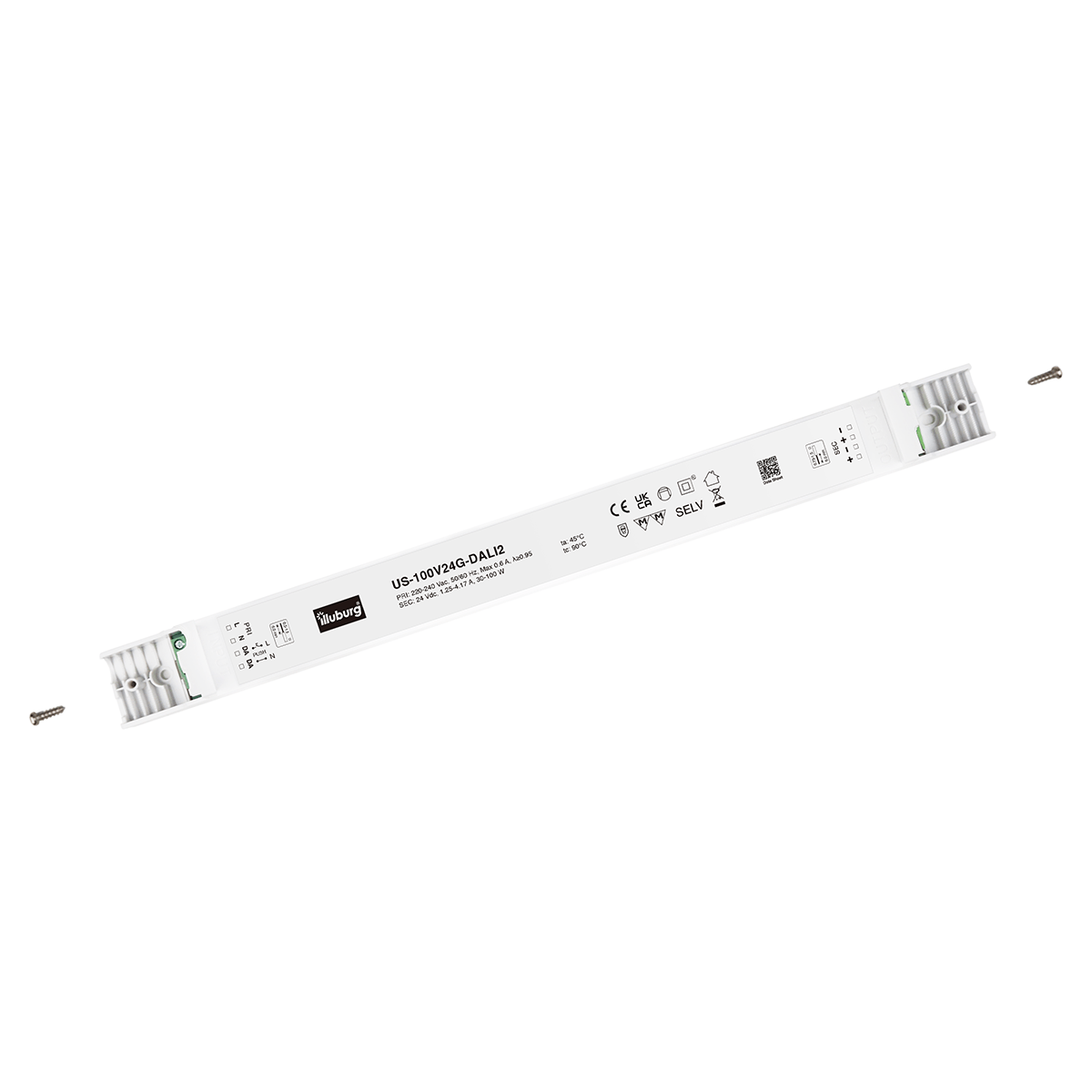

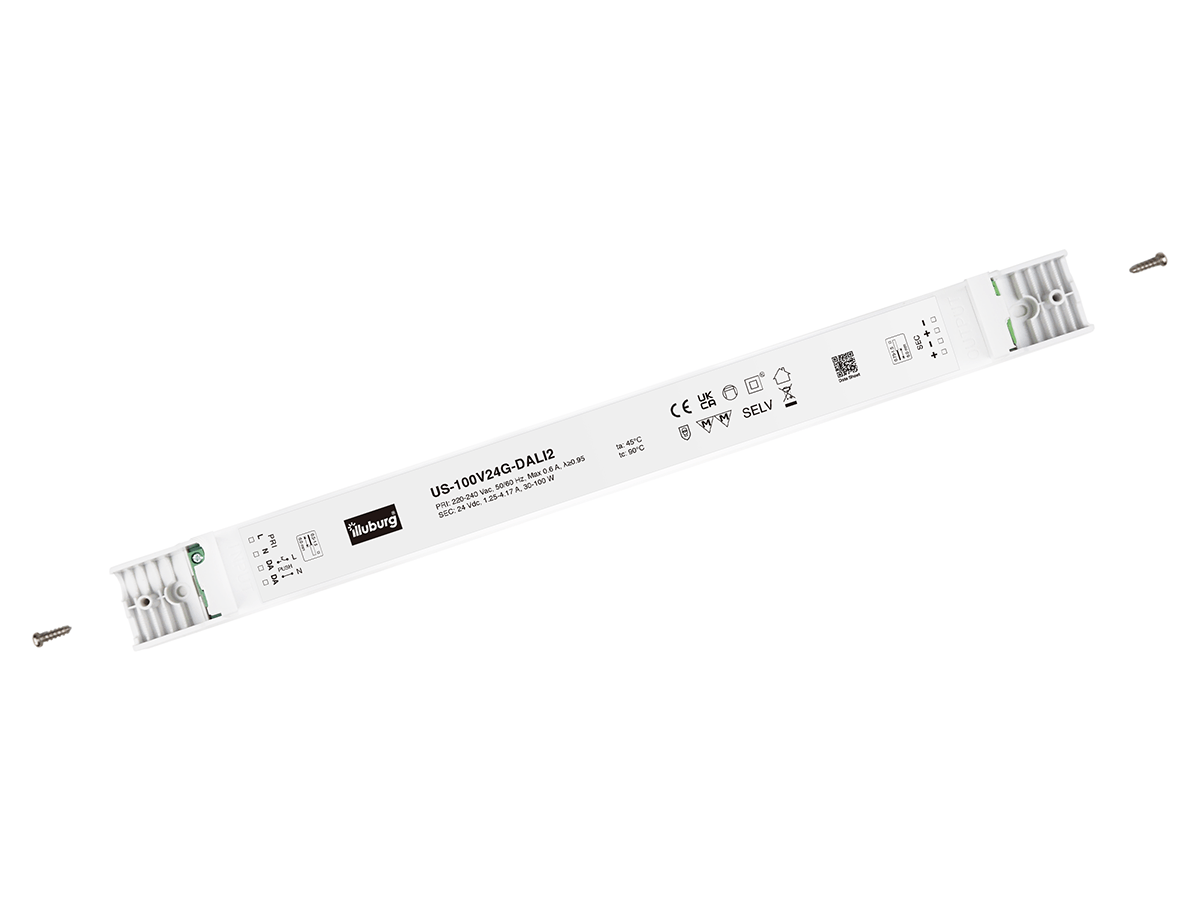

US-100V24G-DALI2
LED power supply for 24 Vdc constant voltage
1.25…4.17 A (30…100 W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.95 |
Input Current | 0.6 A max. |
Inrush Current | 50 A max. |
Output Voltage | 24 Vdc |
Output Current | 1.25…4.17 A |
Output Power (nominal) | 30…100 W |
Efficiency | ≥ 92 % |
Life Time | > 60,000 h Full Load, 230 Vac |
Dimming mode | DALI-2, PUSH (pri.) |
Operating Condition
Operating temperature range (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 90 °C |
Permitted rel. Humidity | 5…85 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overcurrent Protection | Yes * 120 % -180 % |
Overvoltage Protection | Yes * 110 % – 150 % |
Overheating Protection | Yes * 90 < Tc < 110 ℃ |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 62493 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Dali Normen (DT-6) | IEC 62386-101, IEC 62386-102, IEC 62386-207 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Screw terminal |
Cable Cross-Section, input side | 0.5…1.5 mm² |
Cable Cross-Section, output side | 0.75…1.5 mm² |
Cable Preparation Length, input side | 6 mm |
Cable Preparation Length, output side | 6 mm |
Dimension
Connection
