24Vdc constant, 100W, IP67, 156x48x33mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 14,99€ |
| 5 - 9 | 14,69€ |
| 10 - 19 | 14,39€ |
| 20 + | 14,09€ |
LS7-100V24P
14,99€
In stock
In stock
Description

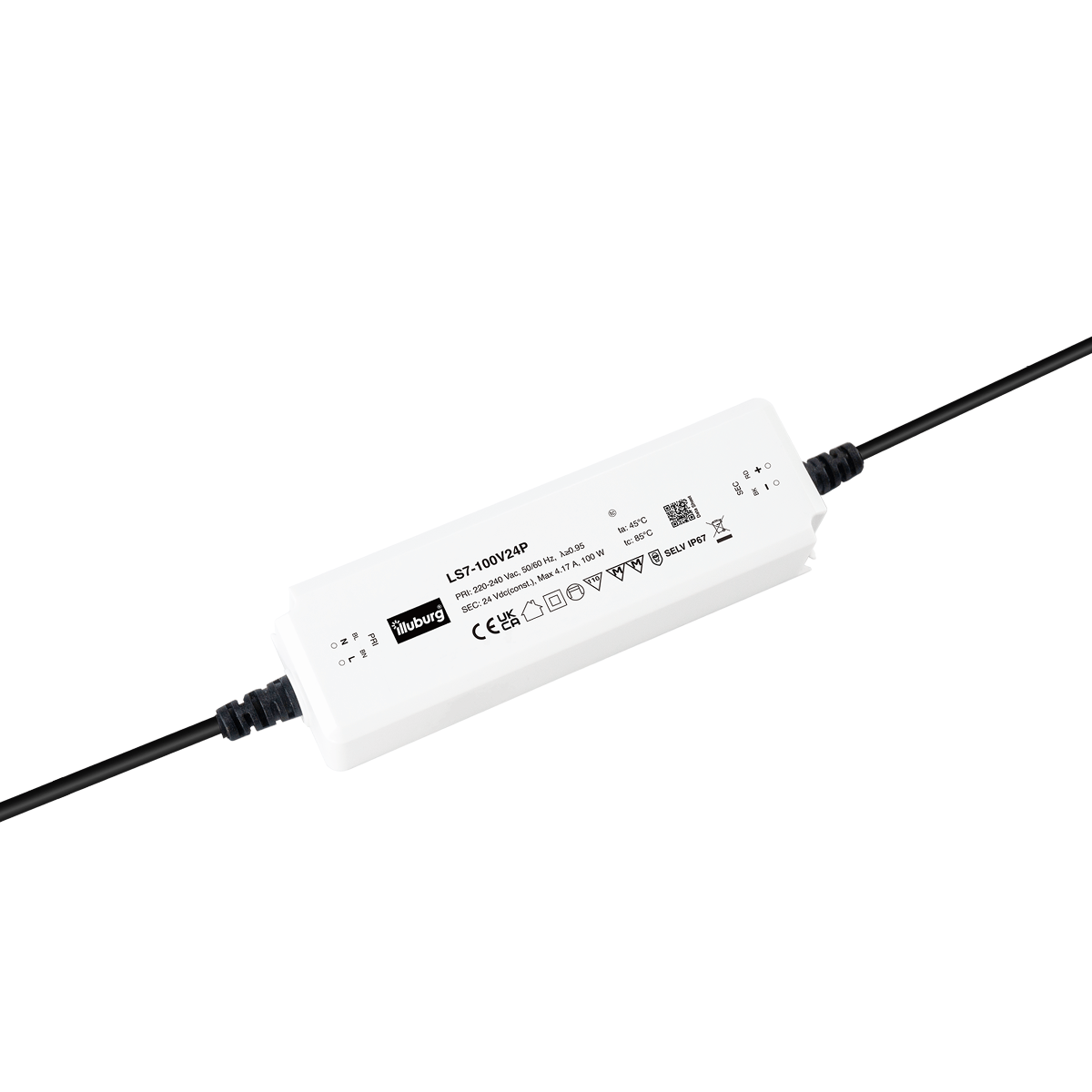

LS7-100V24P
LED power supply for 24 Vdc constant voltage
4.17 A (100 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input Voltage (range) | 198…264 Vac |
| Rated input voltage (AC) | 220…240 Vdc |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load |
| Input Current | 0.485 A max. |
| No-Load Loss | ≤ 0.5 W |
| Inrush Current | 100 A max. |
| Output Voltage | 24 Vdc |
| Output Current | 0…4.17 A |
| Output Power (nominal) | 100 W max. |
| Efficiency | ≥ 90 % Full Load |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. humidity during operation | 5…85 % |
| Protection Class | Class II |
| Type of Protection | IP67 |
Protection
| Short Circuit Protection | Yes(*) |
| Overload Protection | Yes(*) |
(*) The output turns off and can be restored after correcting the problem and restarting the power supply.
Standards & Certificates
StandardsEN 61347-1, EN 61347-2-13
EN 62493, EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
EN 62493, EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
| Approval Marks | CE，UKCA | RoHS Compliant | Yes |
Installation
| Type of installation | Built in installation |
| Cable length, input side | 300 ± 10 mm |
| Cable length , output side | 300 ± 10 mm |
| Cable cross-section, input side | 2 x 1.0 mm² |
| Cable Cross-Section, output side | 2 x 18 AWG |
| Cable Preparation Length, input side | 6 mm tinned |
| Cable Preparation Length, output side | 6 mm tinned |
Dimension
Connection
