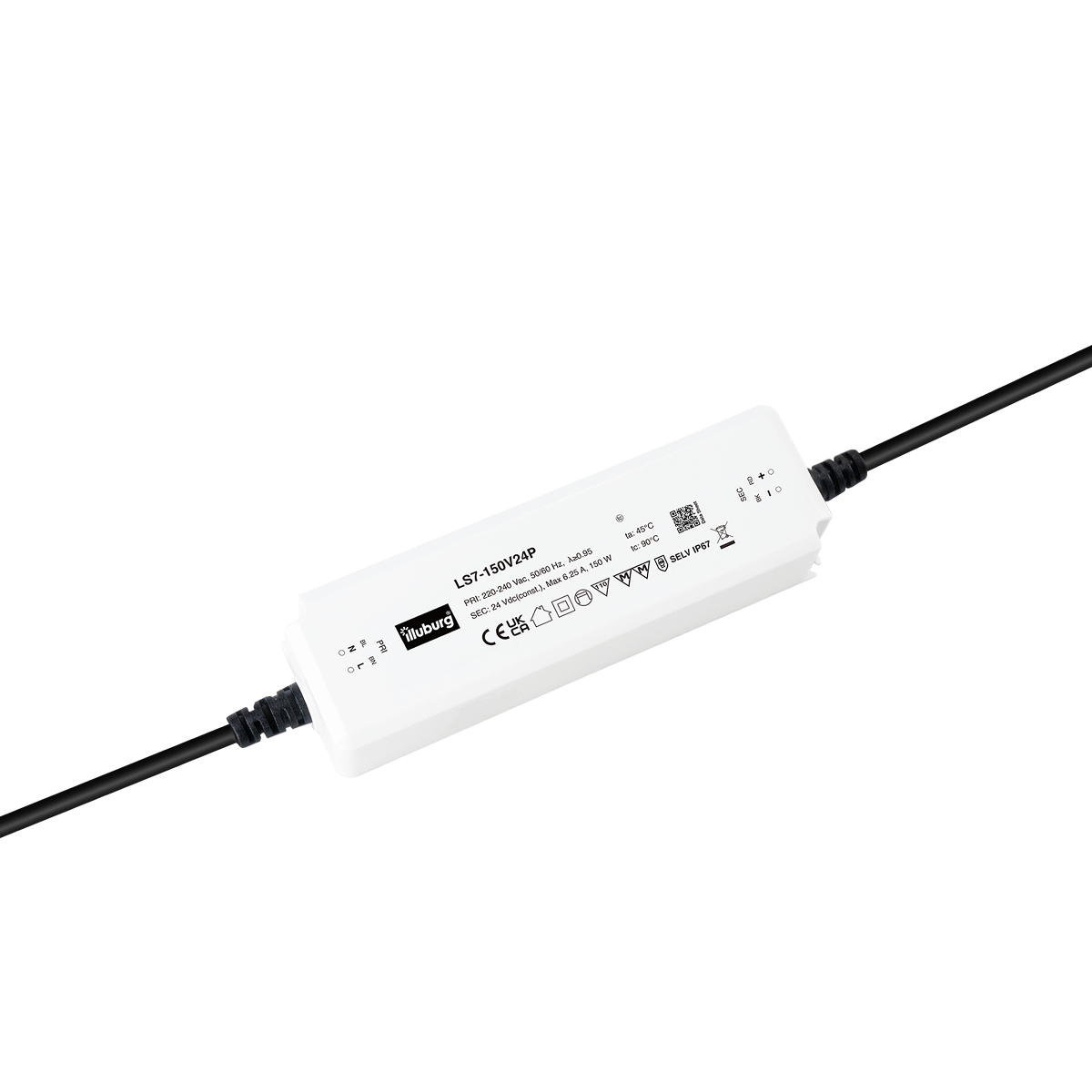

LS7-150V24P
LED power supply for 24 Vdc constant voltage
6.25 A (150 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.95 Volllast |
Input Current | ≤ 0.73 A max. |
No-Load Loss | ≤ 0.5 W |
Inrush Current | 75 A max. |
Leakage Current | < 0.7 mA |
Output Voltage | 24 Vdc |
Output Current | 0…6.25 A |
Output Power (nominal) | 150 W max. |
Efficiency | ≥ 92 % Full Load |
Life Time | > 50,000 h |
Dimmable | No |
Operating Condition
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 90 °C |
Protection Class | Class II |
Type of Protection | IP67 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * 120…150% |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Normen | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Cable Length, input side | 300 ± 10 mm |
Cable Length, output side | 300 ± 10 mm |
Cable Cross-Section, input side | 2 x 1.0 mm² |
Cable Cross-Section, output side | 2 x 16 AWG |
Cable Preparation Length, input side | 6 mm tinned |
Cable Preparation Length, output side | 6 mm tinned |
Dimension

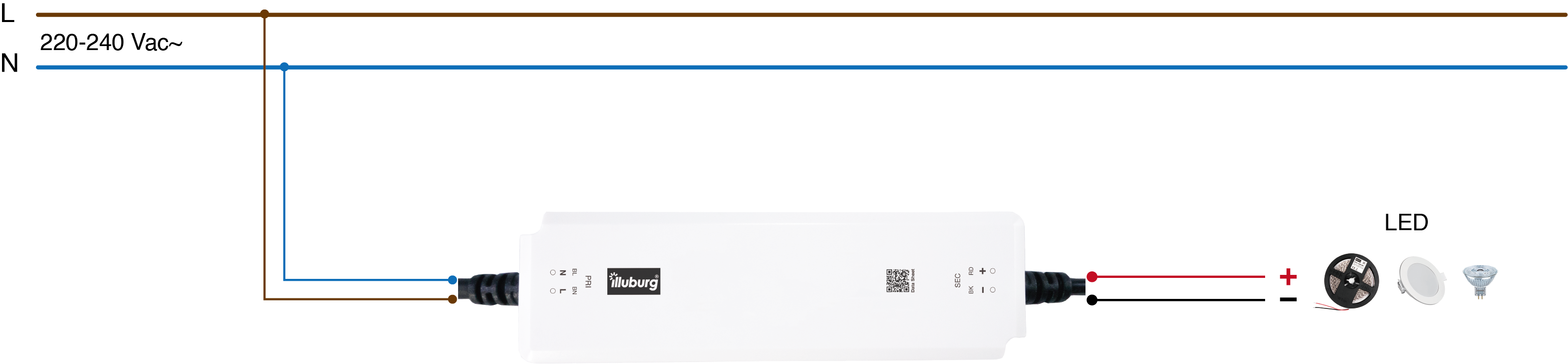

Connection
