Name: LS-120V24-DALI2 (24V 120W)
Availability: InStock

Description

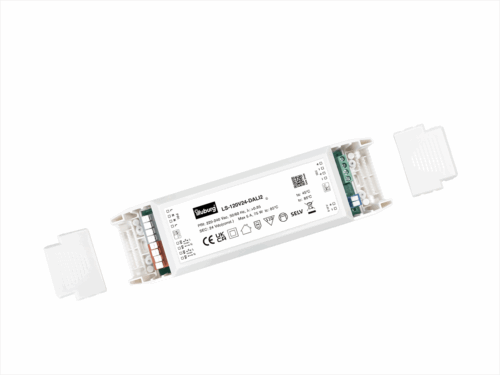

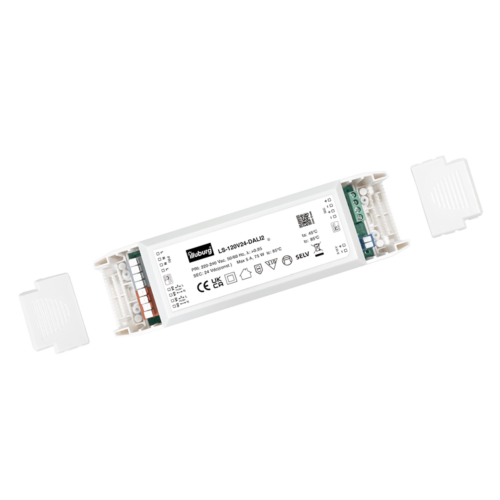

LS-120V24-DALI2

LED power supply for 24 Vdc constant voltage
5 A (120 W) max., IP20, independent installation

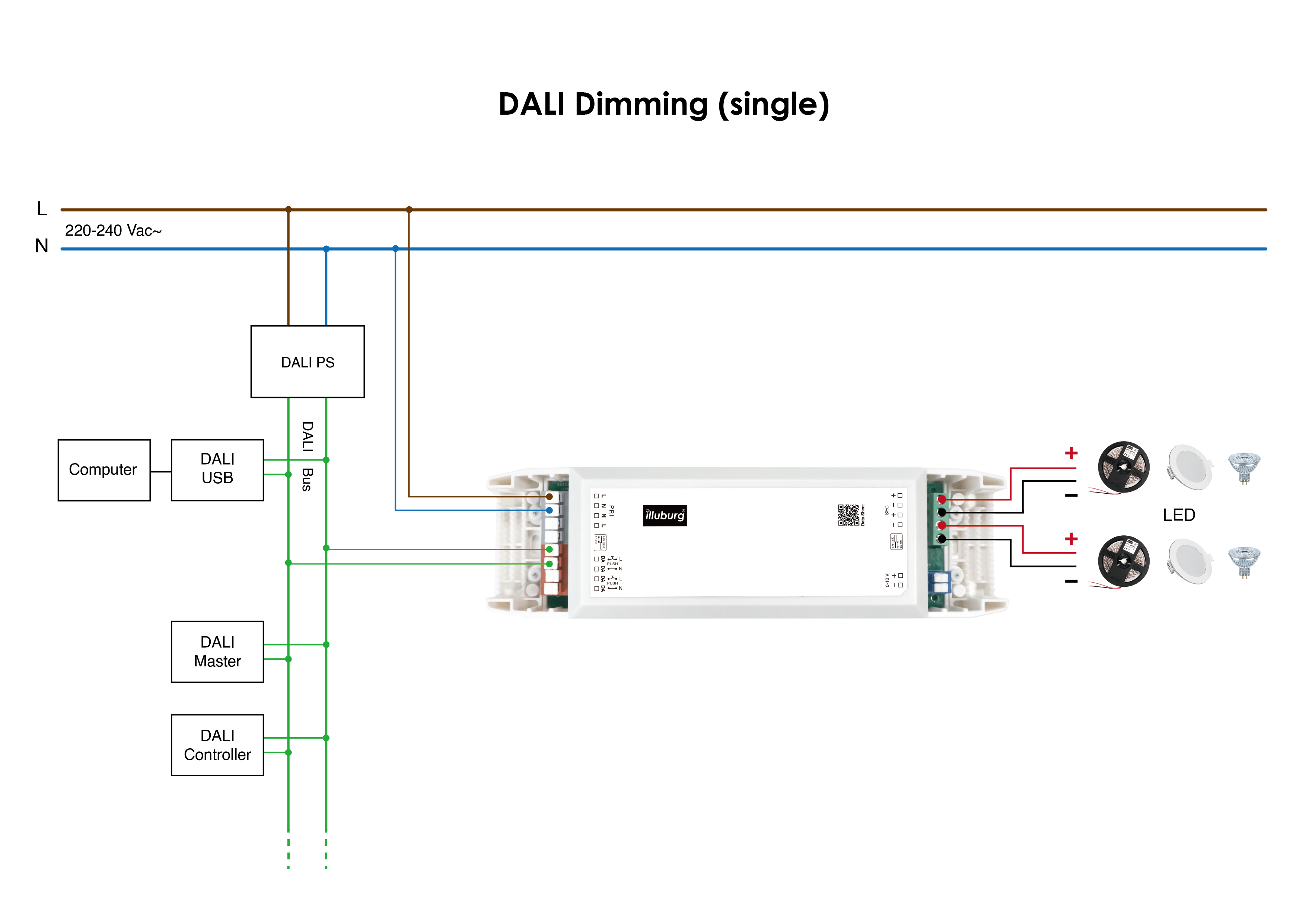

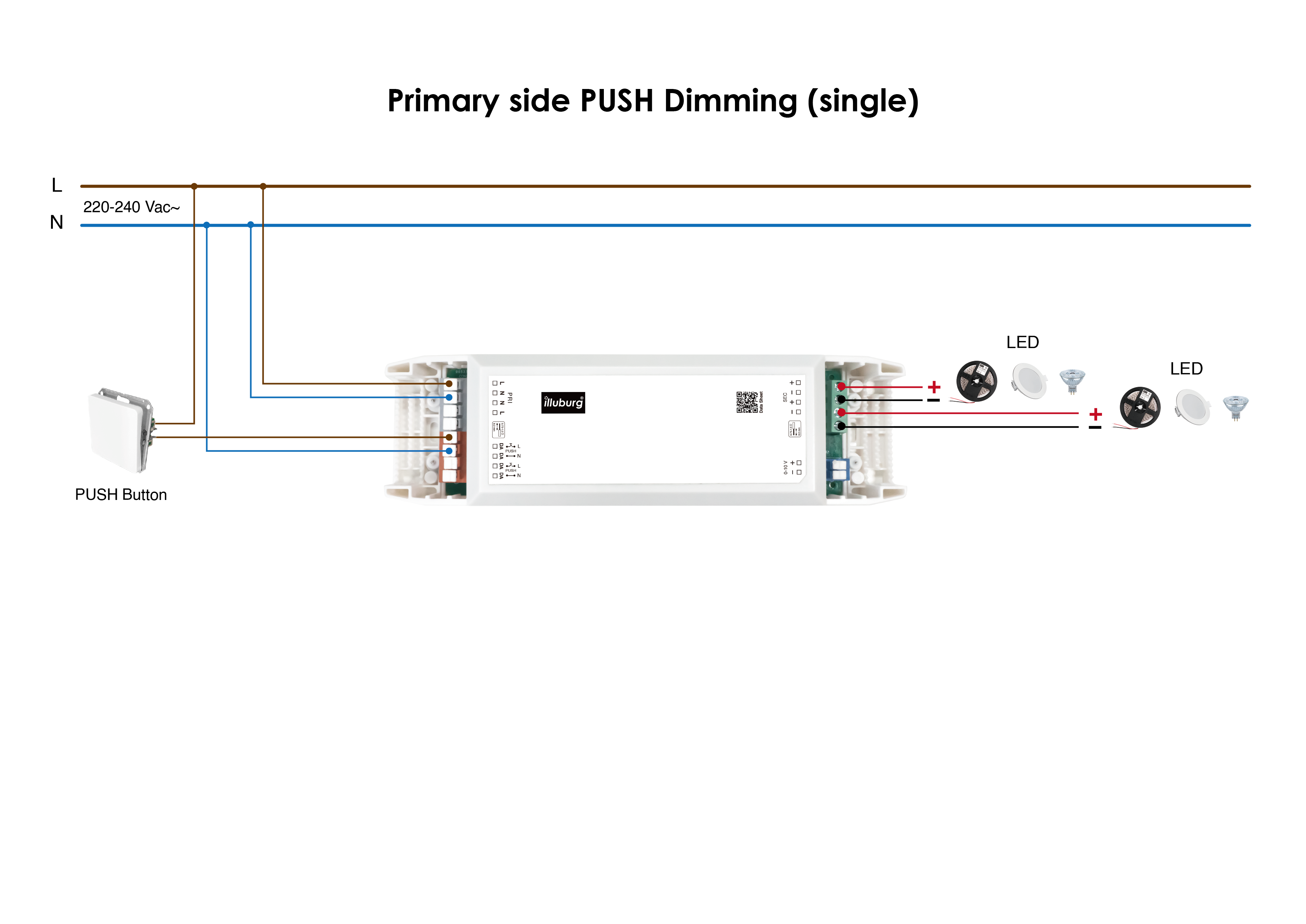

Dimmable with DALI2, PUSH (pri.), 0-10V (sec.), PWM
Flickerfree according to IEEE 1789

Electrical Data

Input Voltage (nominal)	220…240 Vac
Input Voltage (range)	198…264 Vac
Mains Frequency	50/60 Hz
Power Factor (λ)	≥0.99 Full Load, 230 Vac
Input Current	0.6 A max.
Inrush Current	30 A max.
No-load loss	≤ 0.3 W
Output Voltage	24 Vdc
Output Current	0.5…5 A
Output Power (nominal)	12…120 W
Efficiency	≥ 92 % Full Load, 230 Vac
Life Time	5 Years Full load
Dimming mode	DALI-2, PUSH (pri.), 0-10V (sec.), PWM (sec.)

Operating Condition

Operating temperature range (ta)	-25…+40 °C
Max. Surface Temperature (tc)	90 °C
Permitted rel. Humidity	10…95 %
Protection Class	II
Type of Protection	IP20

Protection

Short Circuit Protection	Yes *
Overvoltage Protection	Yes *
Overheating Protection	Yes *

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.

Standards & Certificates

Standards	EN 61347-1, EN 61347-2-13 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3
DALI protocol standard	IEC 62386-102, IEC 62386-207
Approval Marks	CE, UKCA
RoHS Compliant	Yes

Installation

Type of Installation	Independent installation
Type of Connection	Spring-loaded terminal
Cable Cross-Section, input side	0.75…1.5 mm²
Cable Cross-Section, output side	0.75…1.5 mm²
Cable Preparation Length, input side	7…9 mm
Cable Preparation Length, output side	7…9 mm
