24Vdc, DALI dimmable, 150W, IP20, 290x45x31mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 29,99€ |
| 5 - 9 | 29,49€ |
| 10 - 19 | 28,99€ |
| 20 + | 28,49€ |
LS-150V24-DALI2
29,99€
Out of stock
Out of stock
Description

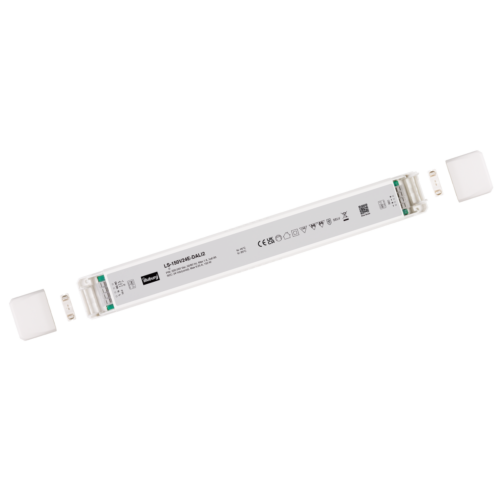

LS-150V24-DALI2
LED power supply for 24 Vdc constant voltage
6.25 A (150W) max., IP20, independent installation
Dimmable with DALI, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 176…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load, 220…240 Vac |
| Input Current | 1 A max. Full Load, 198 Vac |
| Inrush Current | 90 A max. |
| Leakage Current | < 0,7 mA |
| Output Voltage | 24 Vdc |
| Output Current | 0…6.25 A |
| Output Power (nominal) | 150 W max. |
| Efficiency | ≥ 91 % |
| Life Time | > 50,000 h |
| Dimming mode | DALI-2, PUSH (pri.) |
Operating Condition
| Operating temperature range (ta) | -25…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 20…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 105…150 % |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 62493 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.5…1.5 mm² |
| Cable Cross-Section, output side | 0.5…1.5 mm² |
| Cable Preparation Length, input side | 7…9 mm |
| Cable Preparation Length, output side | 7…9 mm |
Dimension
Connection
