LS-80V24-DALI2 (24V 80W)
19,53€
Only 6 left in stock
Only 6 left in stock
Description

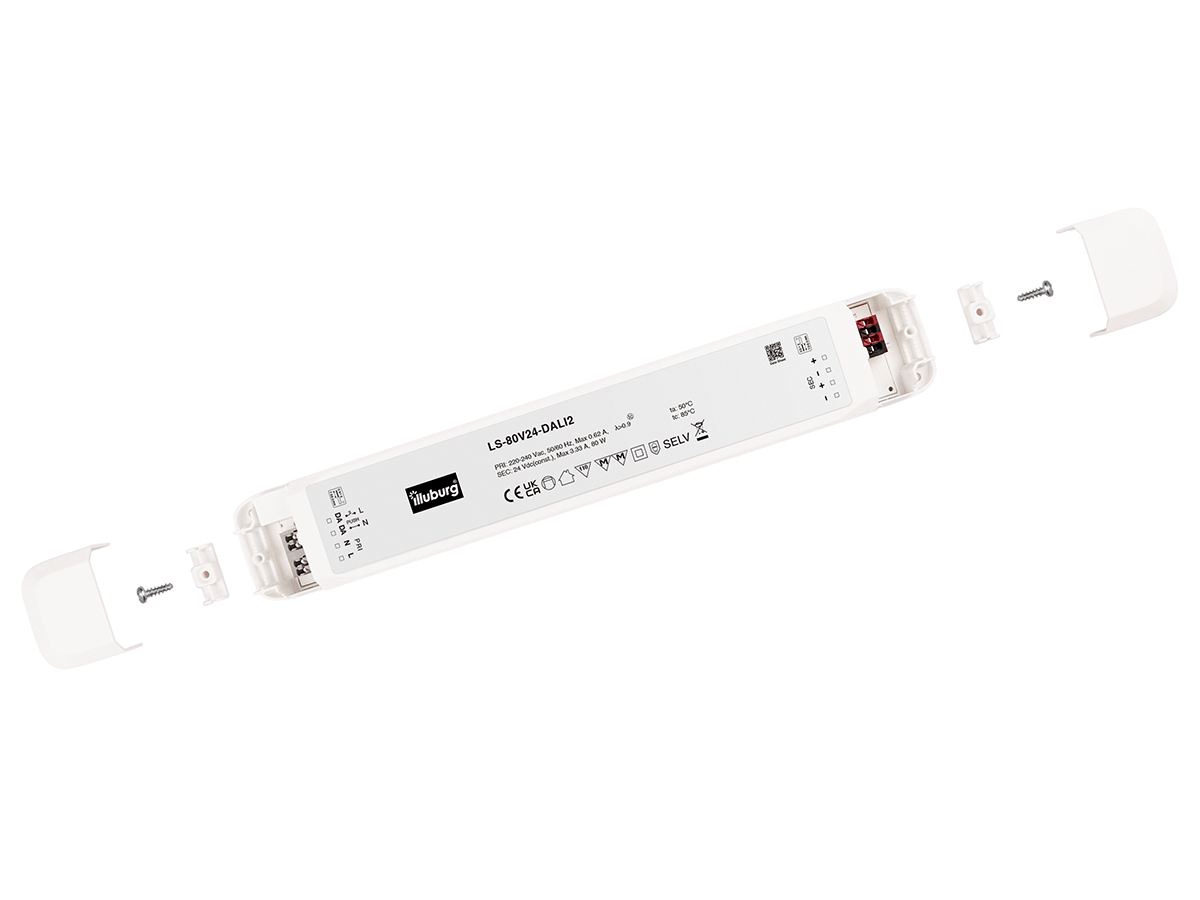

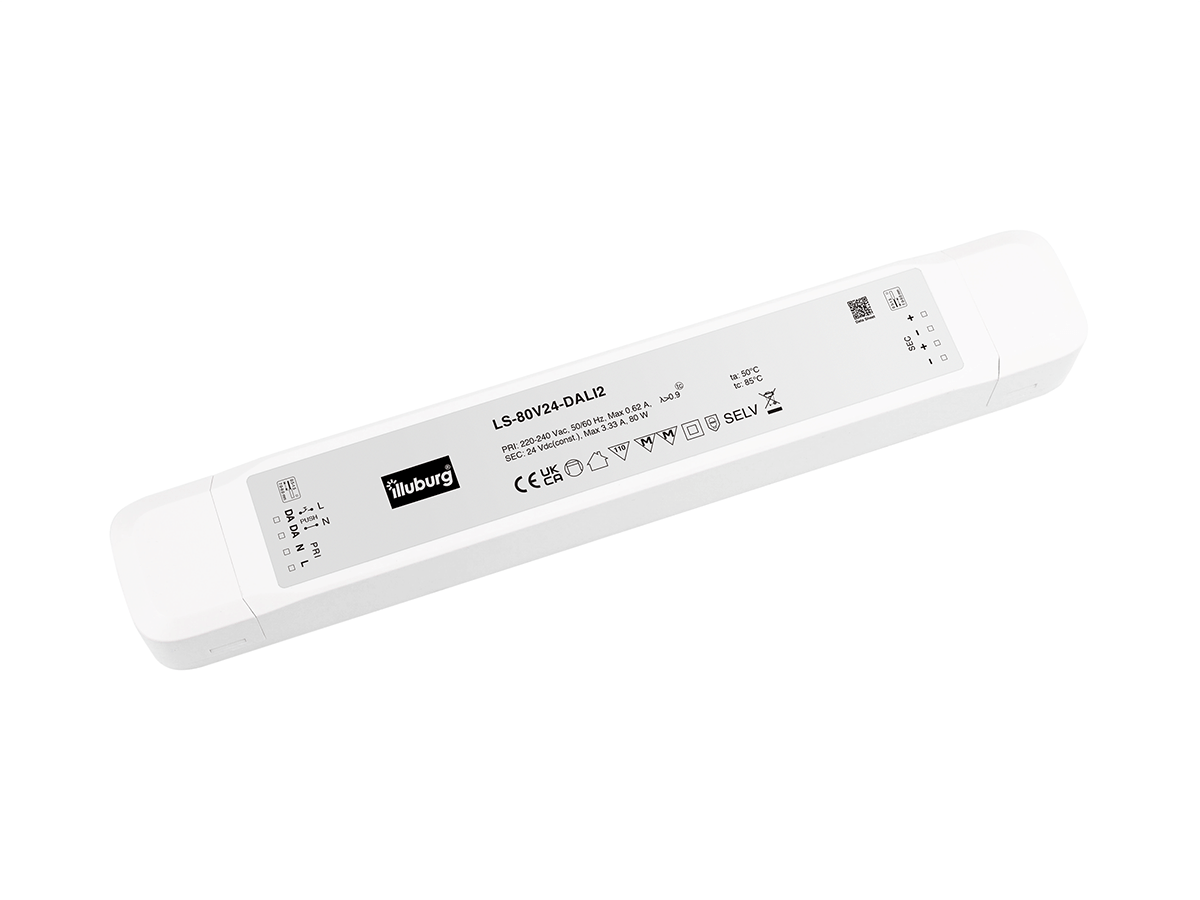

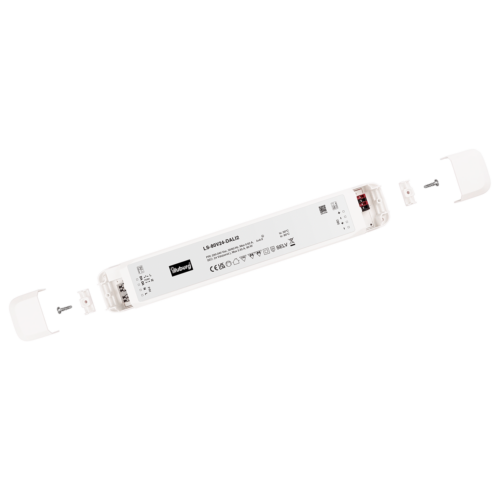

LS-80V24-DALI2
LED power supply for 24 Vdc constant voltage
3.33 A (80W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 176…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load, 220…240 Vac |
| Input Current | 0.62 A max. Full Load, 176 Vac |
| Inrush Current | 50 A max. |
| Leakage Current | < 0.5 mA |
| Output Voltage | 24 Vdc |
| Output Current | 0…3.33 A |
| Output Power (nominal) | 80 W max. |
| Efficiency | ≥ 87 % |
| Life Time | > 50,000 h |
| Dimming mode | DALI2, PUSH (pri.) |
Operating Condition
| Operating temperature range (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 20…90 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 105…150 % |
| Overvoltage Protection | Yes * > 25,2 Vdc |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 62493 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Dali Standard (DT-6) | IEC 62386-101, IEC 62386-102, IEC 62386-207 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.5…1.5 mm² |
| Cable Cross-Section, output side | 0.5…1.5 mm² |
| Cable Preparation Length, input side | 7.0…9.0 mm |
| Cable Preparation Length, output side | 7.0…9.0 mm |

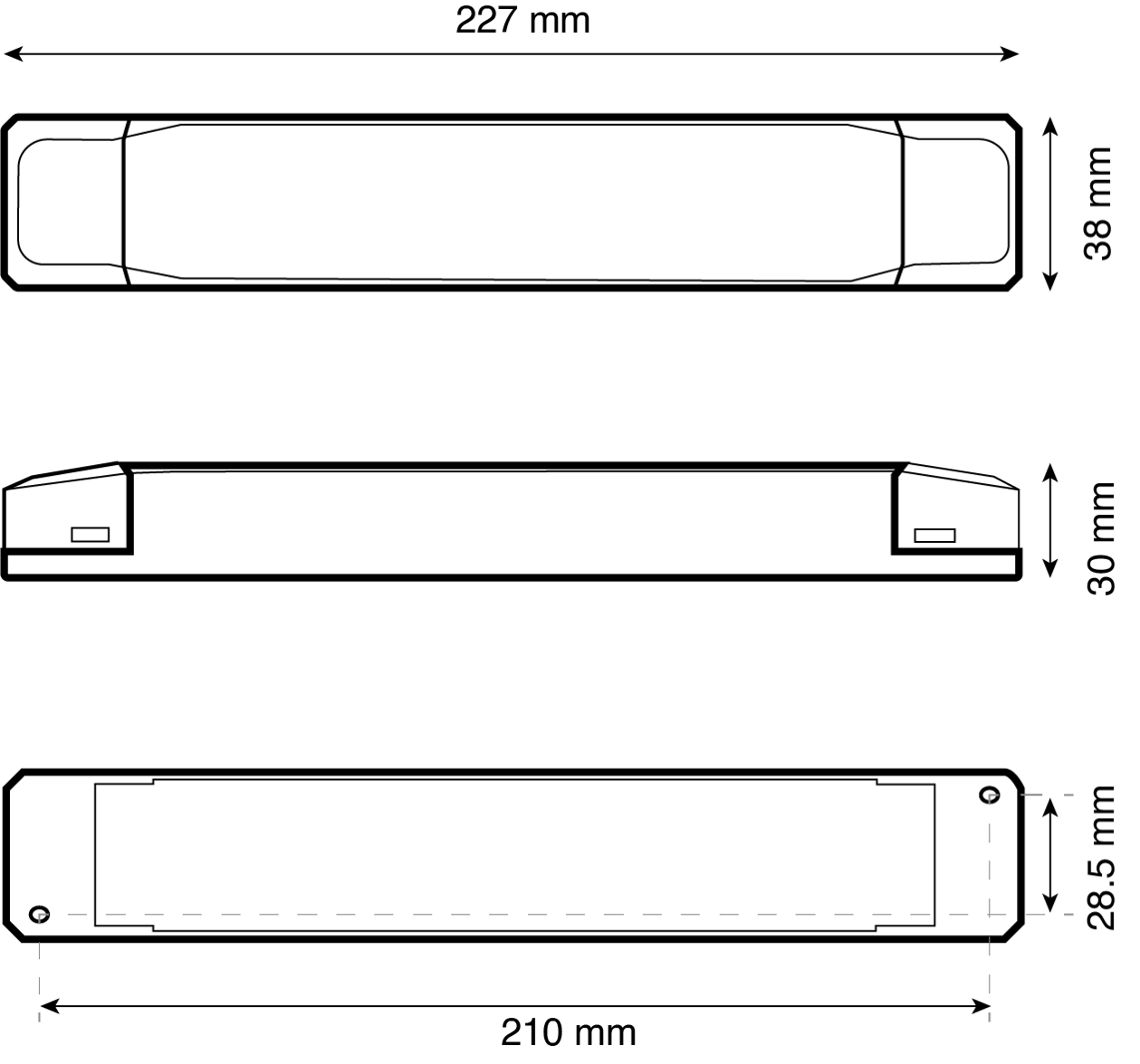

Dimension

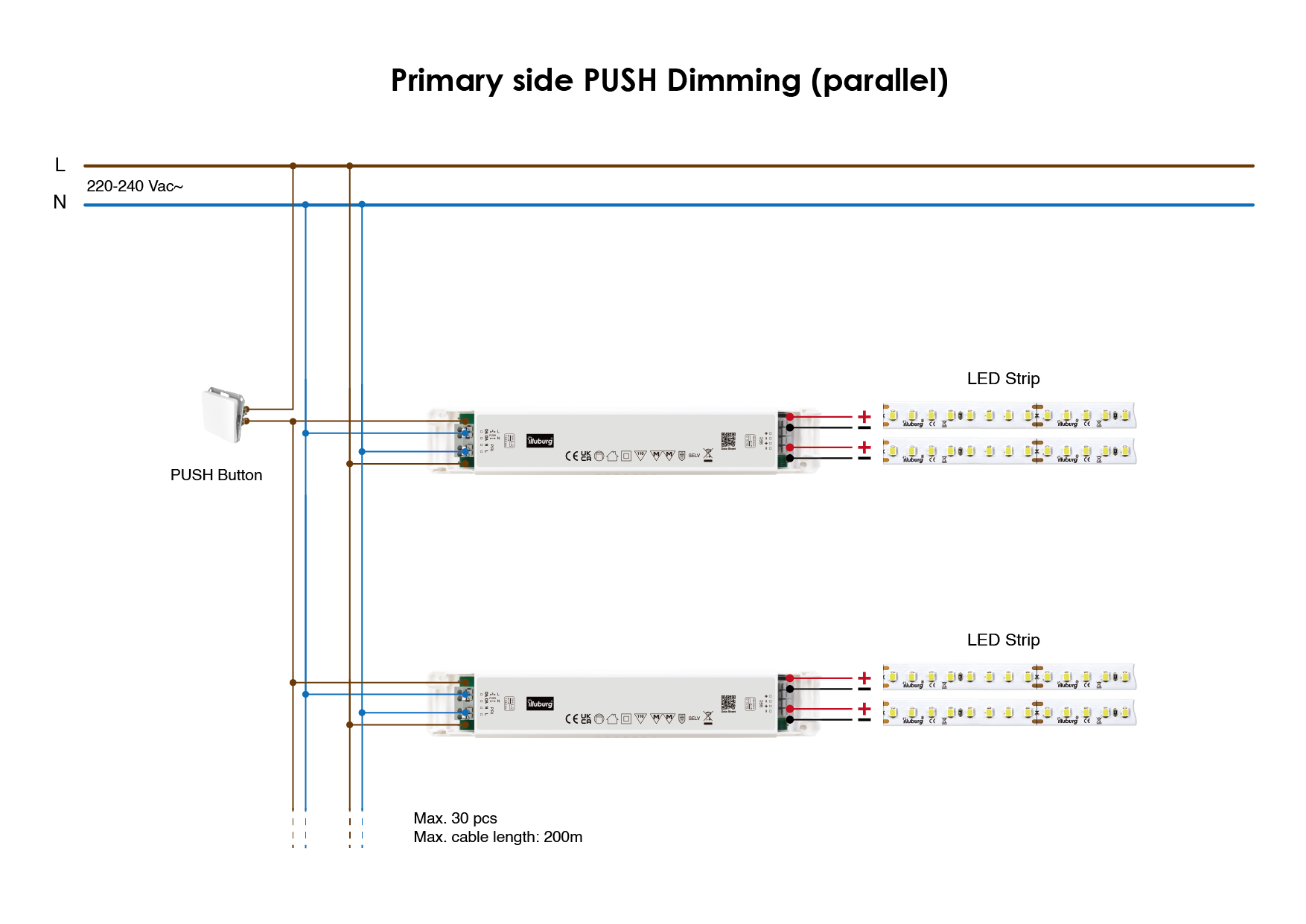

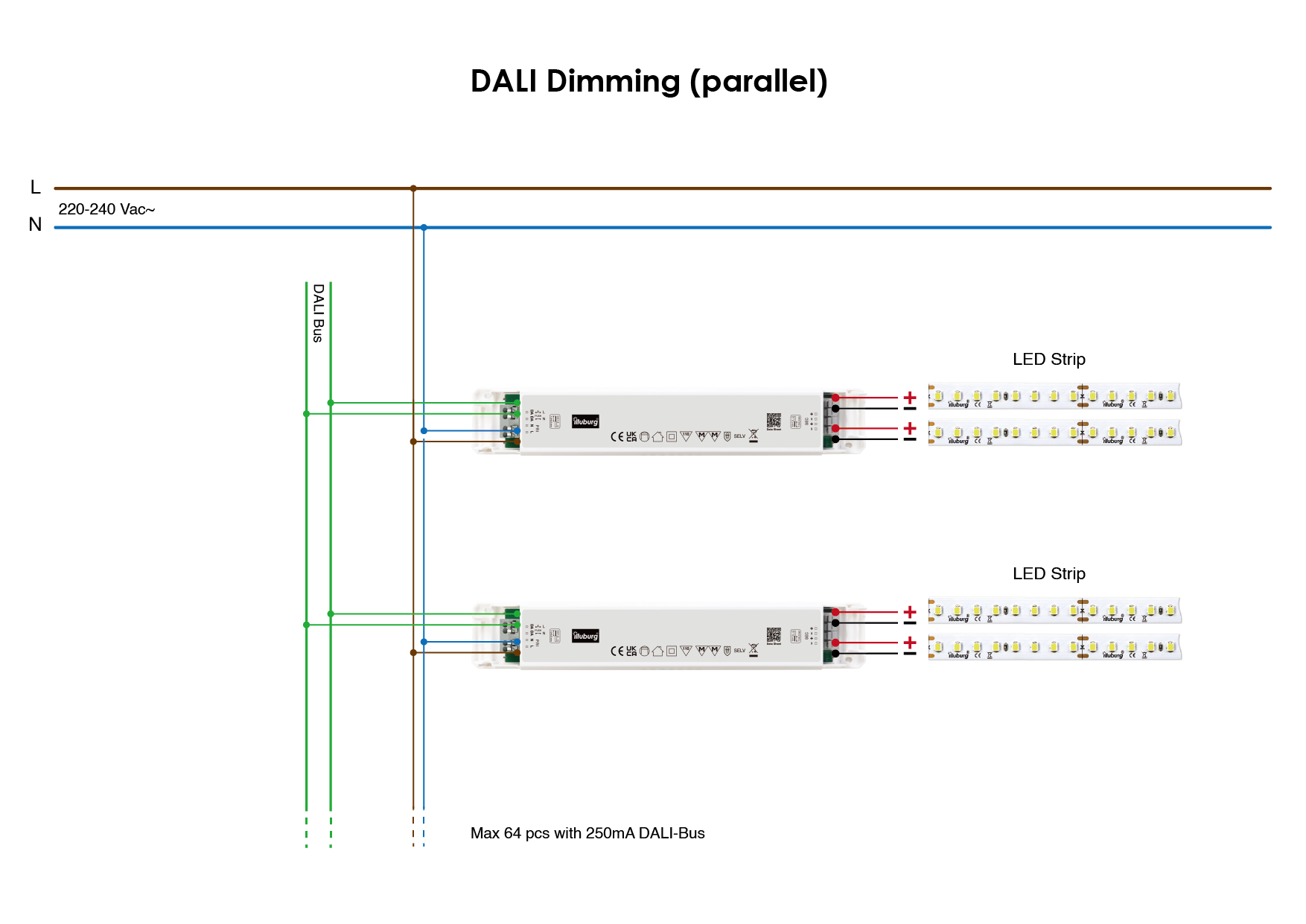

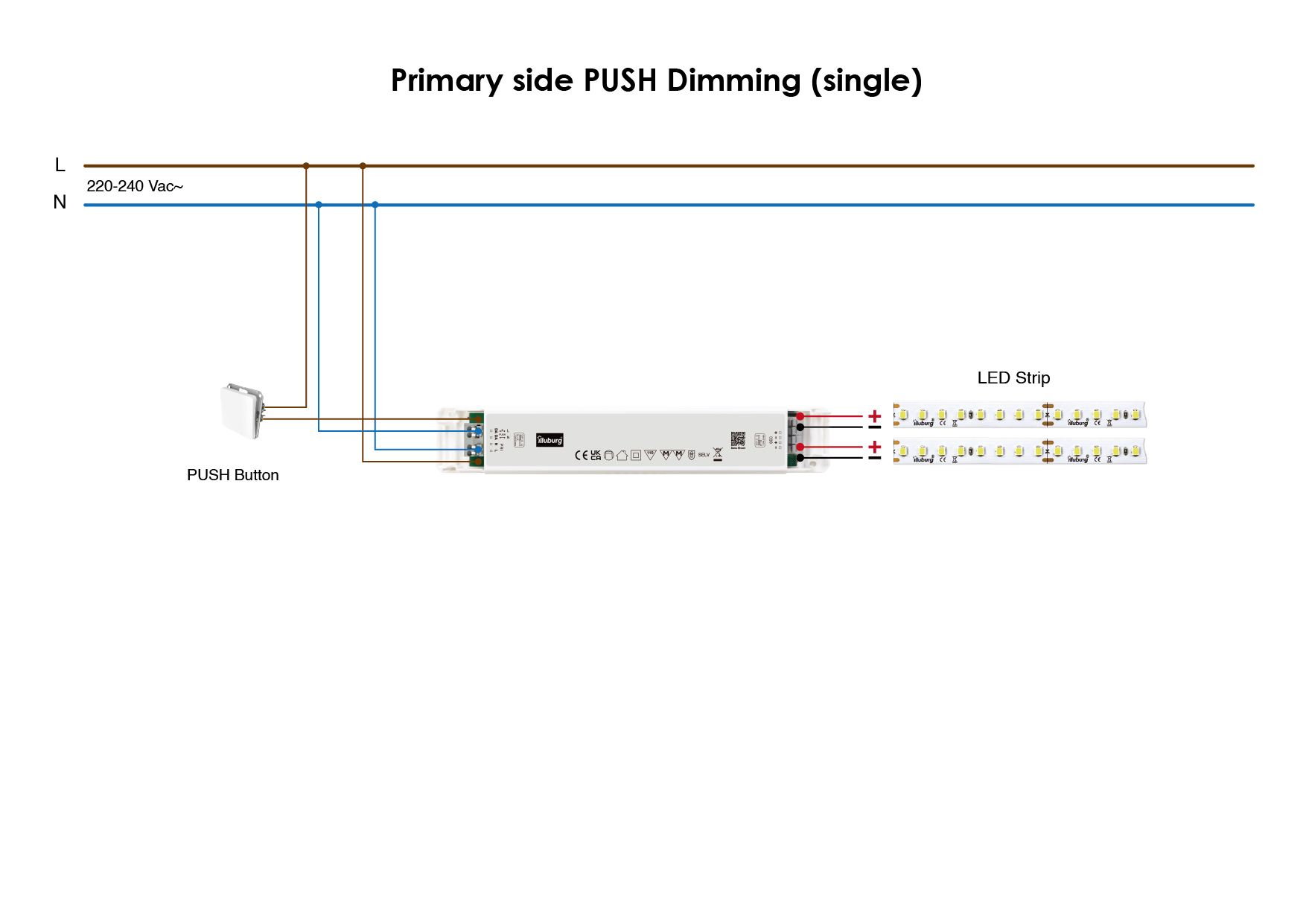

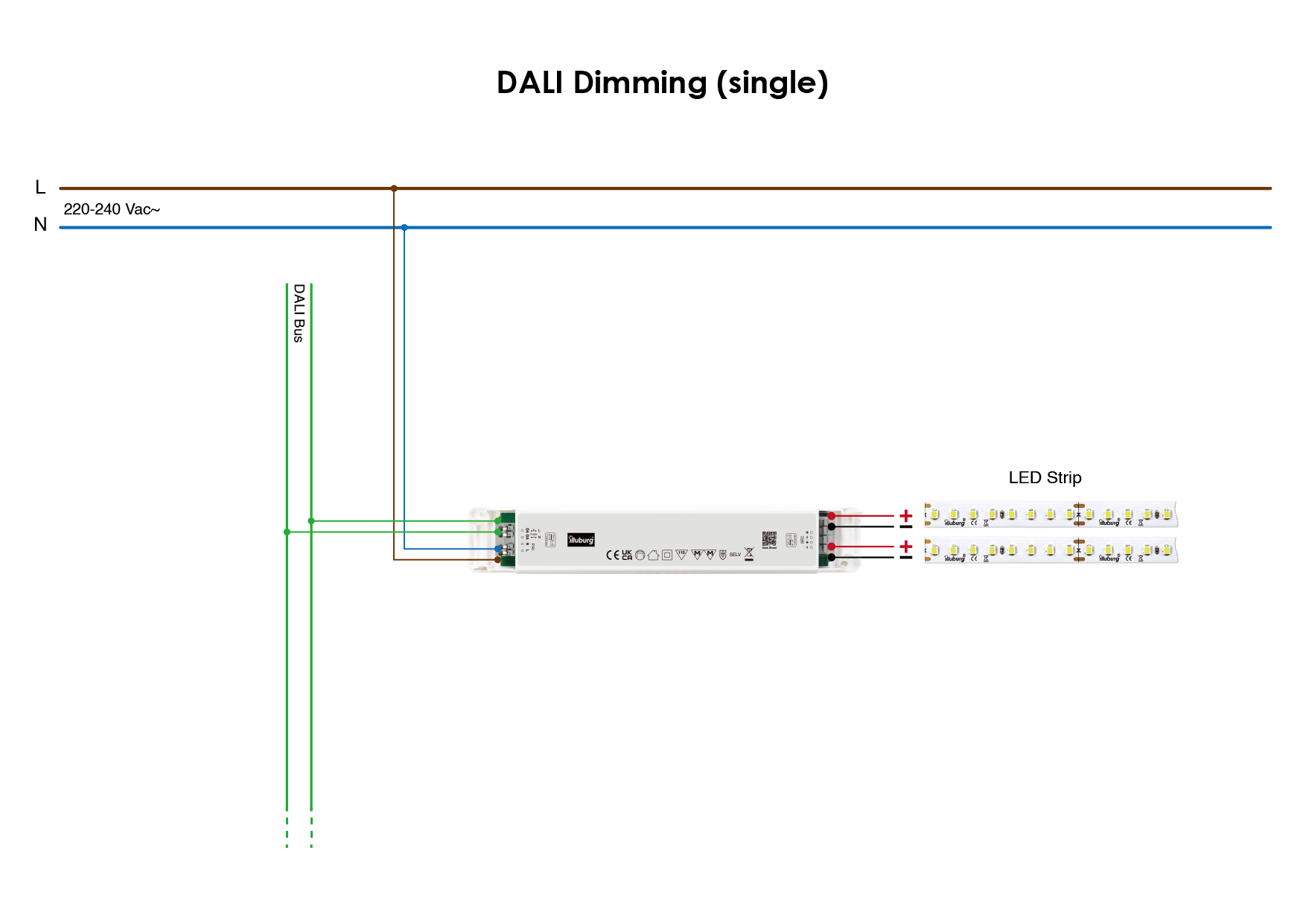

Connection
