24Vdc constant, 250W, IP20, 400x40x22mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 28,89€ |
| 5 - 9 | 28,39€ |
| 10 - 19 | 27,89€ |
| 20 + | 27,39€ |
US-250V24G
28,89€
Only 10 left in stock
Only 10 left in stock
Description
LED Trafo 24V 250W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
US-250V24G
LED power supply for 24 Vdc constant voltage
10.42 A (250 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 176…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 220…240 Vac |
| Input Current | 0.9 A max. |
| No-load loss | ≤ 0.5 W 230 Vac |
| Inrush Current | 80 A max. |
| Output Voltage | 24 Vdc |
| Output Current | 0…10.42 A |
| Output Power (nominal) | 250 W max. |
| Efficiency | ≥ 93 % |
| Life Time | > 52,000 h |
| Dimmable | No |
Operating Condition
LED Trafo 24V 250W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overcurrent Protection | Yes * 120…180 % |
| Overvoltage protection | Yes * 110…150 % |
| Overheating protection | Yes * 90 < Tc < 110 ℃ |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Prüfzeichen | CE, UKCA |
| RoHS Compliant | Yes |
Installation
LED Trafo 24V 250W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-section, input side | 0.75…1.5 mm² |
| Cable Cross-section, output side | 0.75…1.5 mm² |
| Cable Preparation length, input side | 7.0…9.0 mm |
| Cable Preparation length, output side | 7.0…9.0 mm |
Dimension
Connection

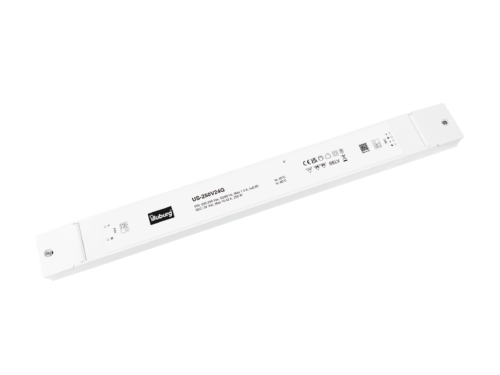

LED power supply US-250V24G: LED transformer constant voltage, input 220 – 240 V (AC), output 24 V (DC), non-dimmable, flicker-free, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 250 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 400 x 40 x 22 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Flicker-free: flicker-free light source provides better eye protection and guarantees high-quality video recording.
Safety: Protection class IP20, protection device equipped with overload protection, short circuit protection, overvoltage protection and overheating protection.
Quality: CE, MM approval; Service life > 50.000 hours; Surface temperature (tc) 90°C.
huatec led transformer power supply driver transformator 24v 24 volt dc constant voltage same voltage flicker-free super slim 250w 250 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 24V 250W constant voltage slim.
