24Vdc, 25W, Triac dimmable, IP65, 52x30mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 11,99€ |
| 5 - 9 | 11,69€ |
| 10 - 19 | 11,49€ |
| 20 + | 11,19€ |
CS5-25V24-D3
11,99€
In stock
In stock
Description

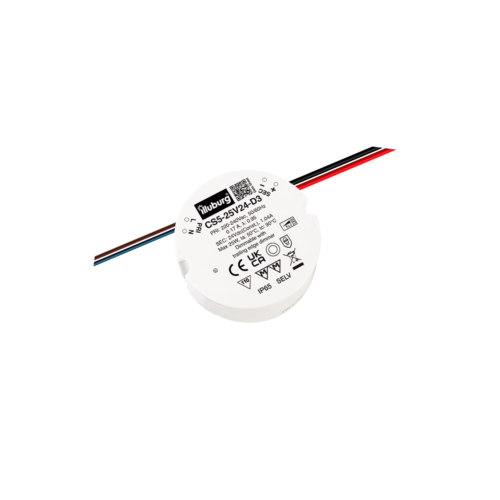

CS5-25V24-D3
LED power supply for 24 Vdc constant voltage
0.2…1.04 A, 4.8…25 W, IP65, built-in installation
TRIAC (leading & trailing edge) dimmable
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full load |
| Input Current | 0.17 A max. |
| Inrush Current | 5 A max. |
| Output Voltage | 24 Vdc |
| Output Current | 0.2…1.04 A max. |
| Output Power (nominal) | 4.8…25 W |
| Efficiency | ≥ 84 % Full load |
| Life Time | > 50,000 h |
| Dimming Mode | TRIAC (leading & trailing edge) |
| Dimming range | 1…100 % |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP65 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| No-load Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 62493, EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable length, input side | 180 ± 5 mm |
| Cable length, output side | 180 ± 5 mm |
| Cable Cross-Section, input side | 2 x 0,5 mm² |
| Cable Cross-Section, output side | 2 x 0,3 mm² |

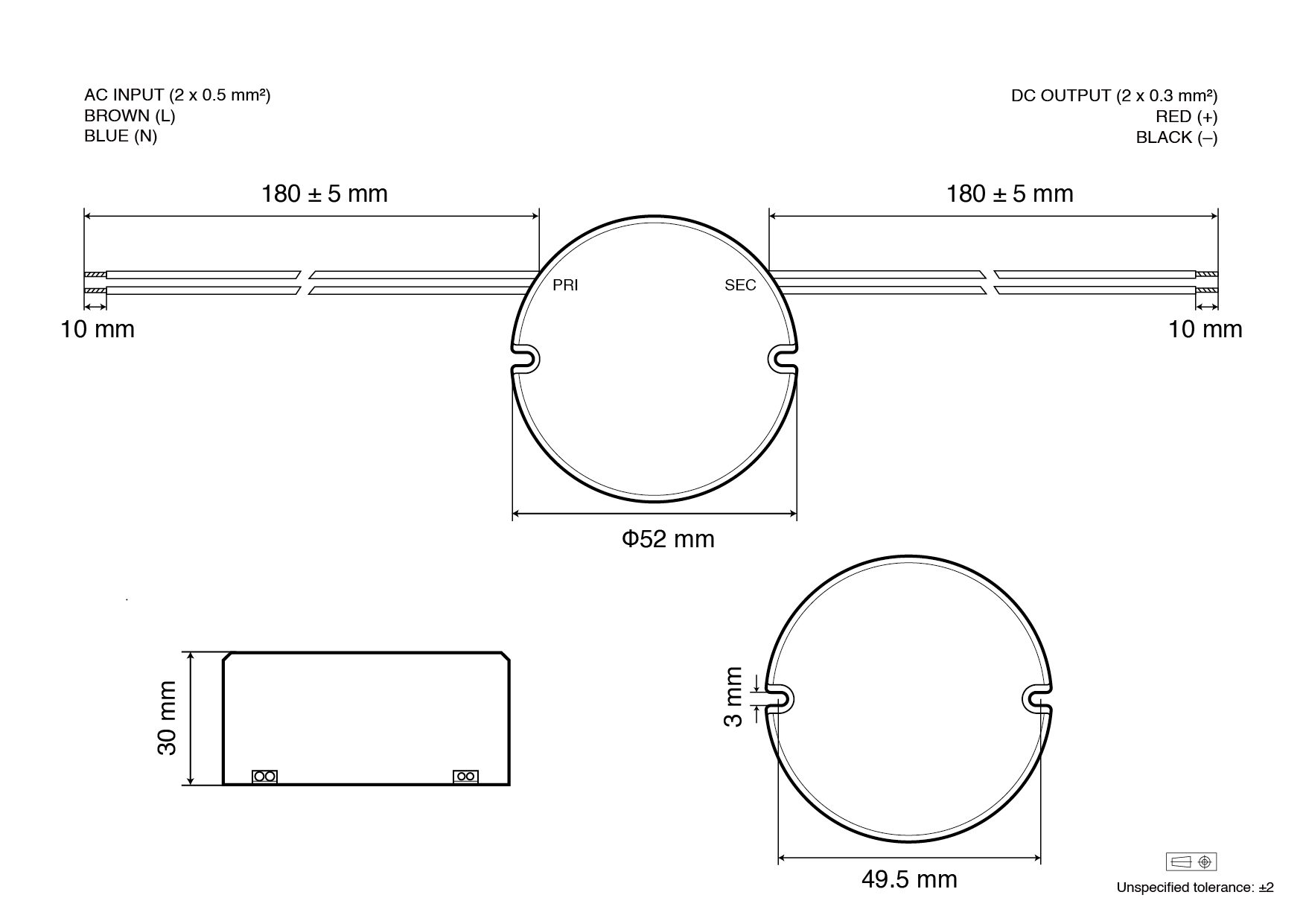

Dimension
-D3_dimension.png)
Connection
