LS-150V24-D3
LED power supply for 24 Vdc constant voltage
2.08…6.25 A, 50…100 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.95 Full load |
Inrush Current | 40 A max. |
Output Voltage | 24 Vdc |
Output Current | 2.08…6.25 A |
Output Power (nominal) | 50…150 W |
Efficiency | ≥ 89 % Full load |
Life Time | > 50,000 h |
Dimming Mode | TRIAC (leading & trailing edge) |
Dimming range | 1…100 % |
Operating Condition
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 90 °C |
Permitted rel. Humidity | 5…85 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overcurrent Protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 60598-1, EN 62384 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Screw terminal |
Cable Cross-Section, input side | 0.75…2.5 mm² |
Cable Cross-Section, output side | 0.75…2.5 mm² |
Cable Preparation Length, input side | 8 mm |
Cable Preparation Length, output side | 8 mm |

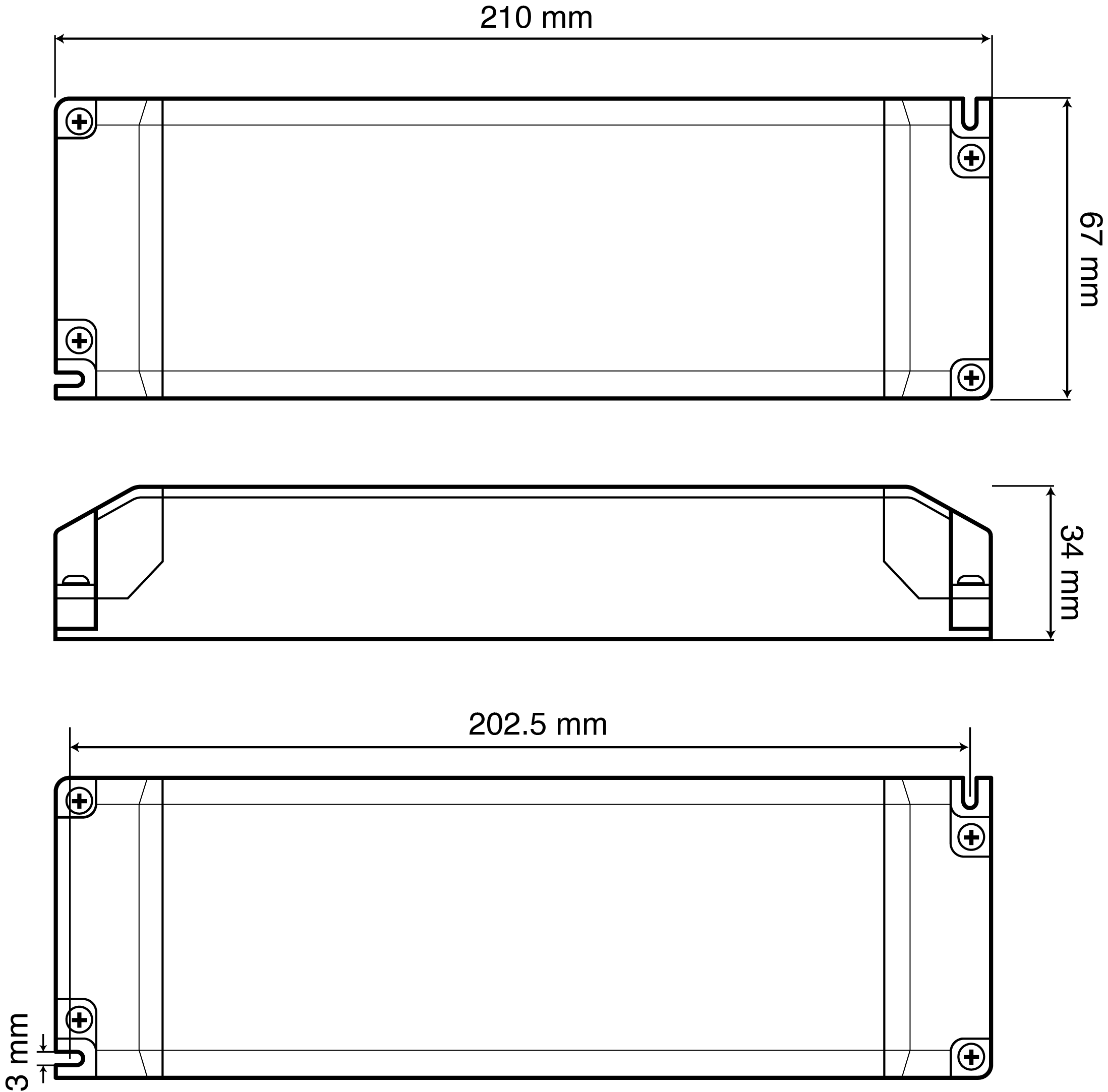

Dimension
Connection
