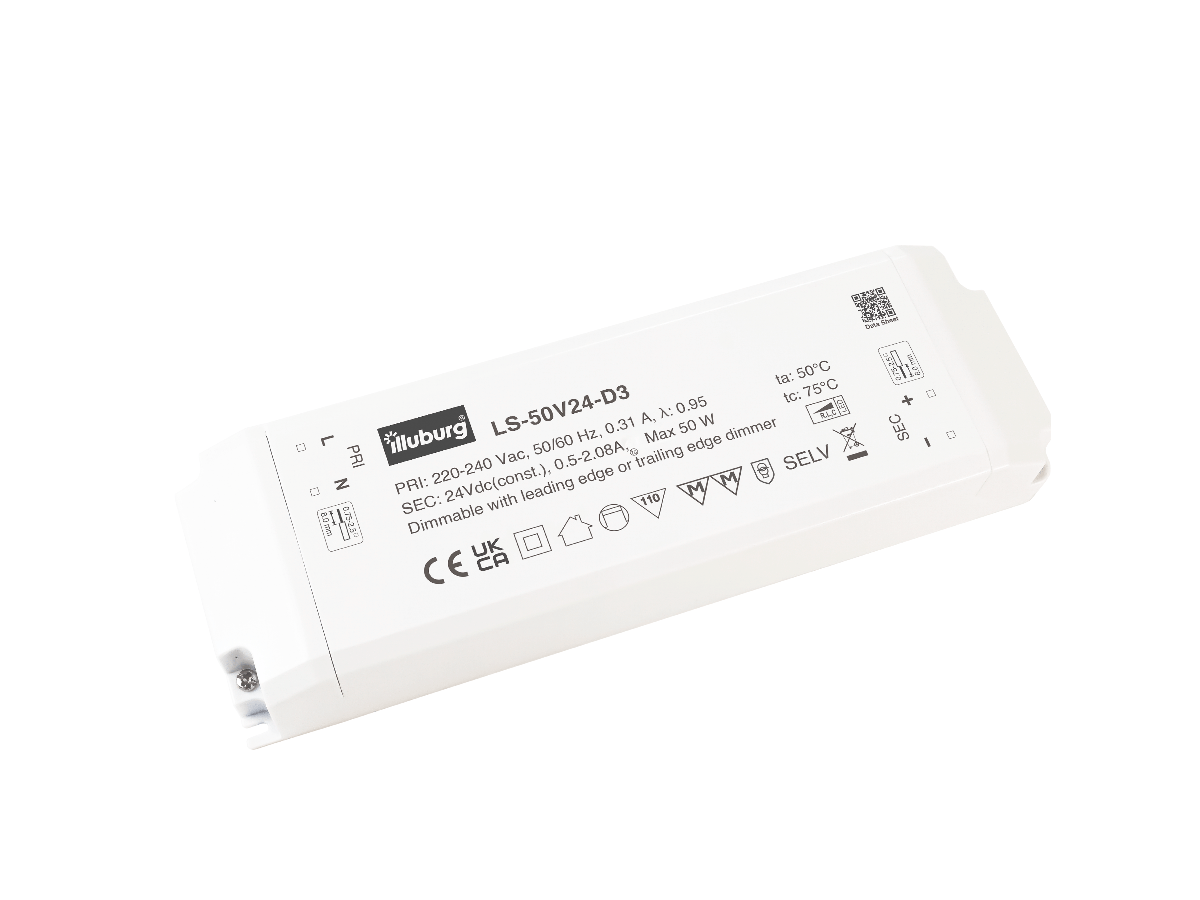

LS-50V24-D3 (24V 50W)


In stock

1 - 415,29
5 - 914,99
10 - 1914,69
20 +14,39


Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock



LED power supply for 24 Vdc constant voltage
0.5…2.08 A, 12…50 W, IP20, independent installation
Leading / trailing edge (TRIAC) dimmable

Electrical Data

Input Voltage (nominal)220…240 Vac
Input Voltage (range)198…264 Vac
Mains Frequency50/60 Hz
Power Factor (λ)0.95    Full load
Input Current0.31 A max.
Inrush Current20 A max.    th = 100 μs (cold start)
Output Voltage24 Vdc
Output Current0.5…2.08 A max.
Output Power (nominal)12…50 W
Efficiency85 %    Full load
Life Time50,000 h
Dimming ModeTRIAC (leading & trailing edge)
Dimming range1…100 %


Operating Condition

Operating Ambient Temperature (ta)-20…+50 °C
Max. Surface Temperature (tc)75 °C
Permitted rel. Humidity5…85 %    Not condensing
Protection ClassII
Type of ProtectionIP20



Short Circuit ProtectionYes *
Overload ProtectionYes *
Overvoltage ProtectionYes *   Input: 264 Vac max.
      Output: ≤ 27 V
Overheating ProtectionYes *

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.


Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 60598-1, EN 62493
EN 55015, EN 57710
EN 61000-3-2, EN 61000-3-3
EN 61547
Approval MarksCE, UKCA
RoHS CompliantYes

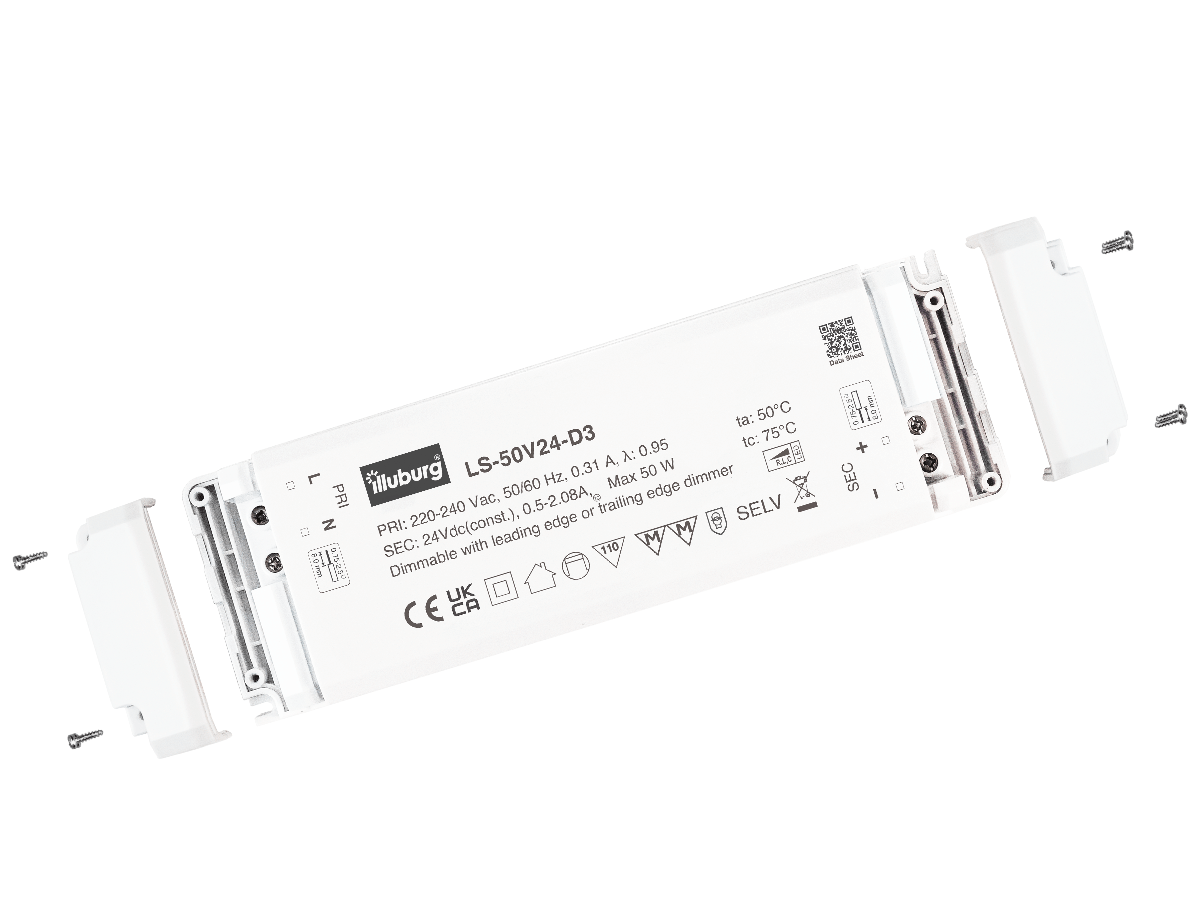

Type of InstallationIndependent installation
Type of ConnectionScrew terminal
Cable Cross-Section, input side0.75…2.5 mm²
Cable Cross-Section, output side0.75…2.5 mm²
Cable Preparation Length, input side8 mm
Cable Preparation Length, output side8 mm
