24Vdc constant, 60W, IP67, 156x42x30mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 11,99€ |
| 5 - 9 | 11,69€ |
| 10 - 19 | 11,49€ |
| 20 + | 11,19€ |
LS7-60V24P
11,99€
Out of stock
Out of stock
Description

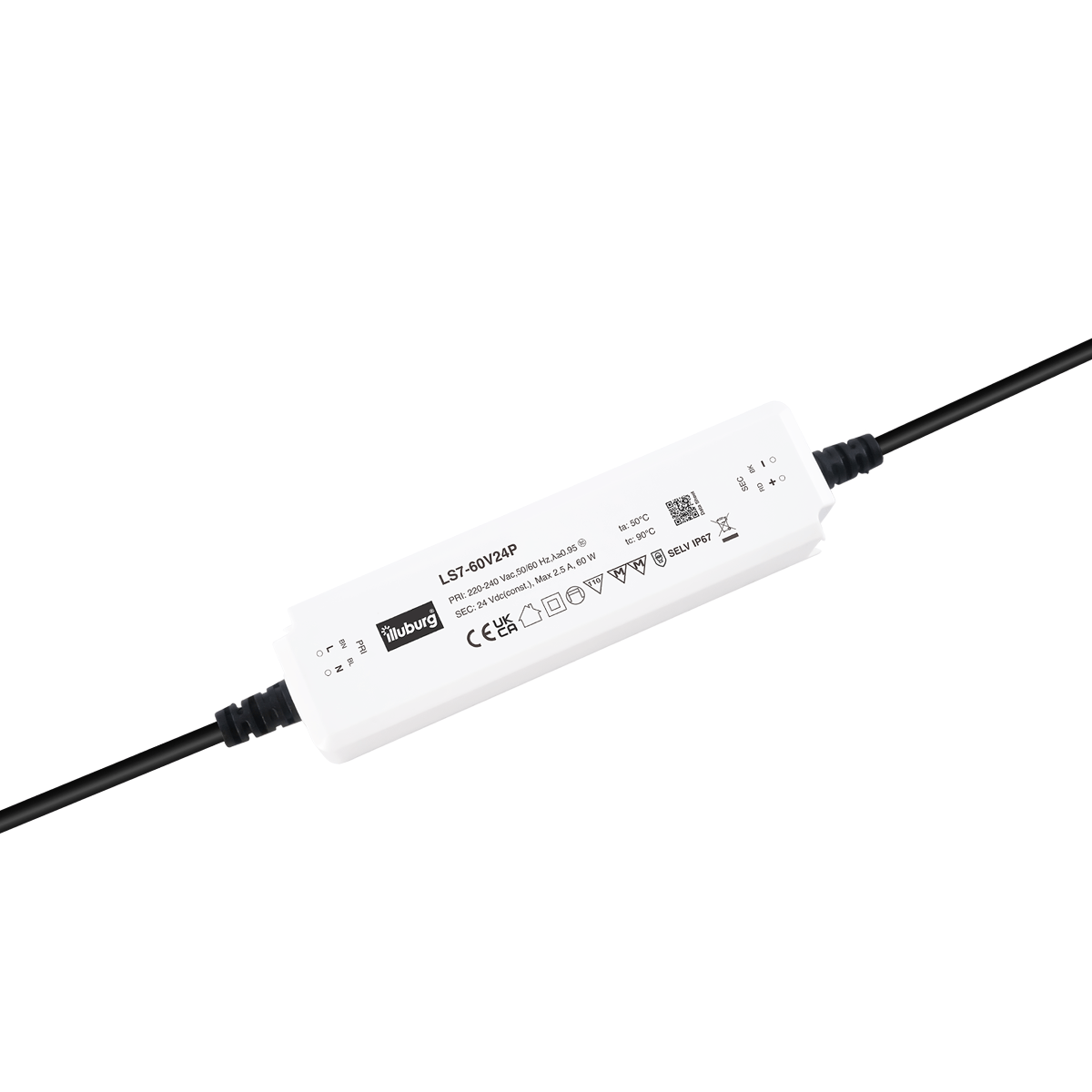

LS7-60V24P
LED power supply for 24 Vdc constant voltage
2.5 A (60 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Rated input voltage | 220…240 Vac |
| Range of input voltage | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load |
| Input Current | 0.3 A max. |
| No-Load Loss | ≤ 0.5 W |
| Output Voltage | 24 Vdc |
| Output Current | 0…2.5 A |
| Output Power (nominal) | 60 W max. |
| Efficiency | ≥ 88% Full Load |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. humidity during operation | 10…95 % |
| Protection Class | Class II |
| Type of Protection | IP67 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of installation | Built in installation |
| Cable length, input side | 300 ± 10 mm |
| Cable length, output side | 300 ± 10 mm |
| Cable Cross-Section, intput side | 2 x 1.0 mm² |
| Cable Cross-Section, output side | 2 x 18 AWG |
| Cable Preparation Length, input side | 6 mm tinned |
| Cable Preparation Length, output side | 6 mm tinned |
Dimension
Connection
