Menge | Preis |
1 - 4 | 5,24€ |
5 - 9 | 5,09€ |
10 - 19 | 4,99€ |
20 + | 4,89€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
5,24€
In stock
Menge | Preis |
1 - 4 | 5,24€ |
5 - 9 | 5,09€ |
10 - 19 | 4,99€ |
20 + | 4,89€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock
SS6-6V12
LED power supply for 12 Vdc constant voltage
0.5 A (6 W) max., IP66, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
Input Voltage (range) | 198…264 Vac |
Rated input voltage (AC) | 220…240 Vdc |
Mains Frequency | 50/60 Hz |
Input Current | 0.1 A max. Full Load, 220…240 Vac |
No-Load Loss | ≤ 0.5 W |
Output Voltage | 12 Vdc |
Output Current | 0…0.5 A |
Output Power (nominal) | 6 W max. |
Efficiency | ≥ 64 % |
Life Time | > 30,000 h |
Dimmable | No |
Operating Condition
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. humidity during operation | 20…90 % |
Protection Class | Class II |
Type of Protection | IP66 |
Protection
Short Circuit Protection | Yes * |
Overvoltage Protection | Yes * |
Overload Protection | Yes * |
(*) The output turns off and can be restored after correcting the problem and restarting the power supply.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN61547 EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 |
Approval Marks | CE,UKCA |
RoHS Compliant | Yes |
Installation
Type of installation | Built in installation |
Cable length, input side | 200 ± 10 mm |
Cable length, output side | 200 ± 10 mm |
Cable cross-section, input side | 2 x 22 AWG |
Cable cross-section, output side | 2 x 22 AWG |
Cable Preparation Length, input side | 6 mm tinned |
Cable Preparation Length, output side | 6 mm tinned |

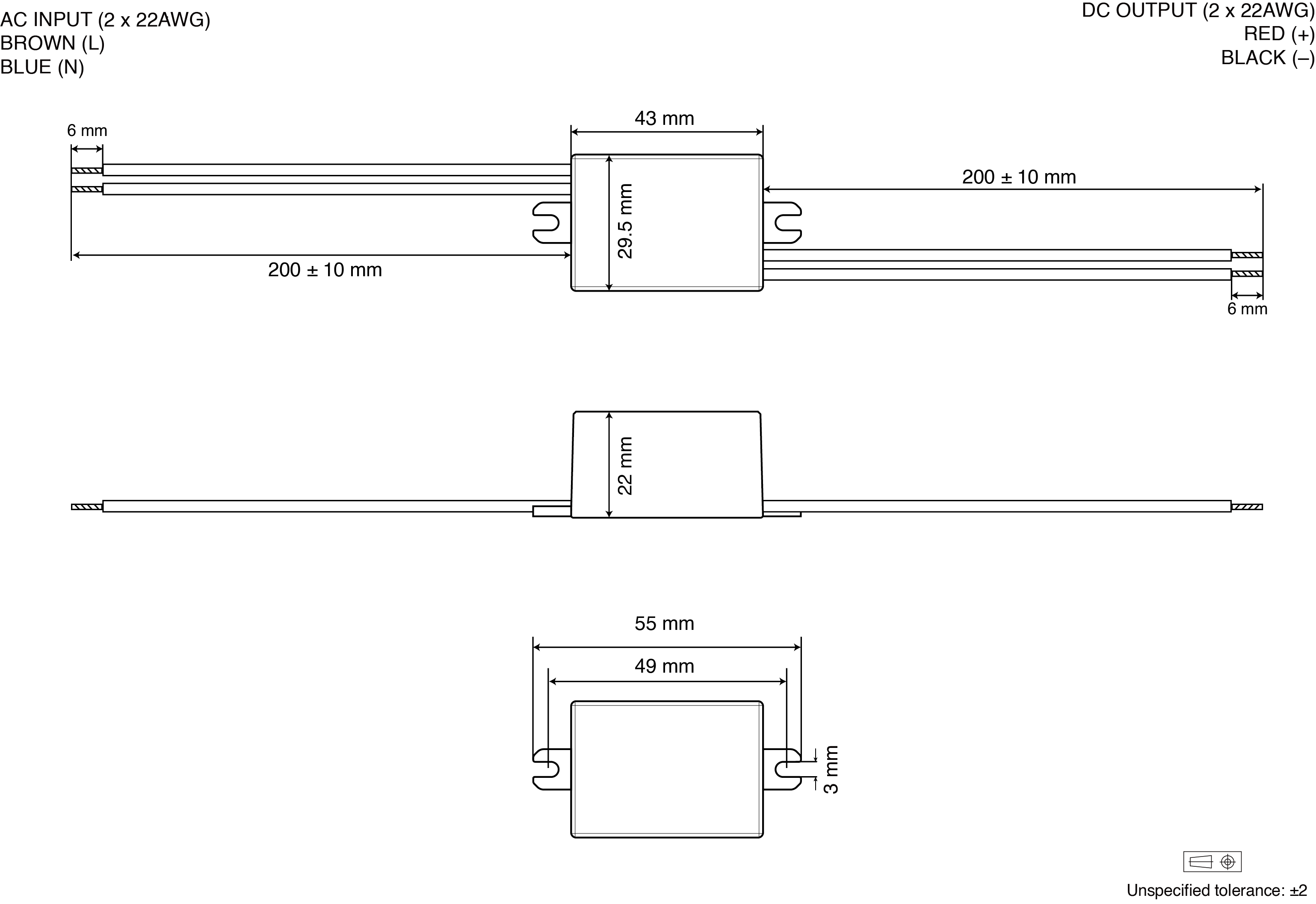

Dimension
Connection
