350mA, 4W, Triac dimmable, IP20, 48x30x20mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 8,69€ |
| 5 - 9 | 8,49€ |
| 10 - 19 | 8,29€ |
| 20 + | 8,09€ |
SS5-4C350-D3
8,69€
In stock
In stock
Description

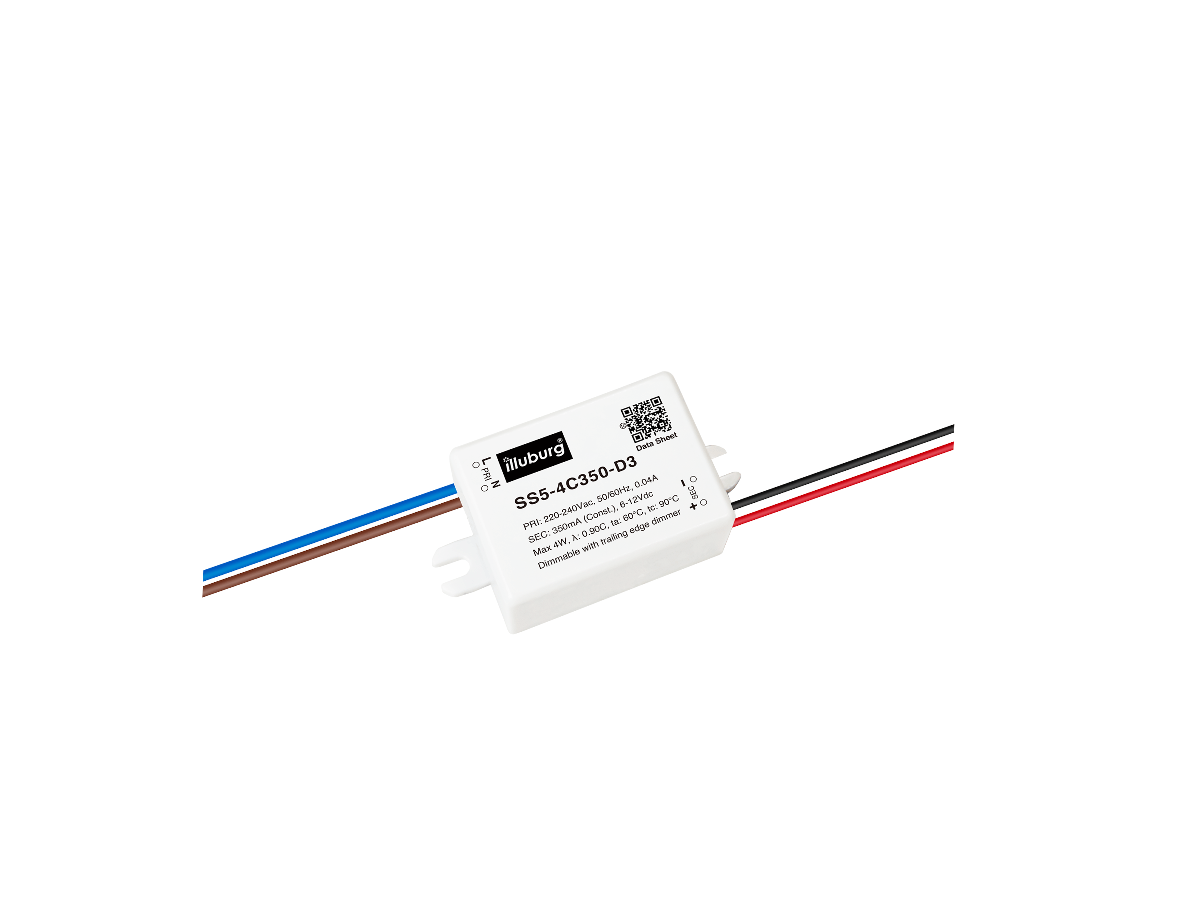

SS5-4C350-D3
LED power supply for 350 mA constant current
6…12 Vdc, 2…4 W, IP65, independent installation
Trailing edge (TRIAC) dimmable
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.90C Full load |
| Input Current | 0.04 A max. |
| Inrush Current | 5 A max. |
| Output Voltage | 6…12 Vdc |
| Output Current | 350 mA |
| Output Power (nominal) | 2…4 W |
| Efficiency | ≥ 68 % Full load |
| Life Time | > 50.000 h |
| Dimming Mode | TRIAC (trailing edge) |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+60 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP65 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overvoltage Protection | Yes * > 20 Vdc |
| No-load Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable length, input side | 180 ± 5 mm |
| Cable length, output side | 180 ± 5 mm |
| Cable Cross-Section, input side | 2 x 20 AWG |
| Cable Cross-Section, output side | 2 x 22 AWG |
| Cable Preparation Length, input side | 5 mm |
| Cable Preparation Length, output side | 5 mm |
Dimension
Connection
