SS5-4C500-D3 (500mA 4W)

7,77

In stock

MengePreis
1 - 47,77
5 - 97,69
10 - 197,59
20 +7,49



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

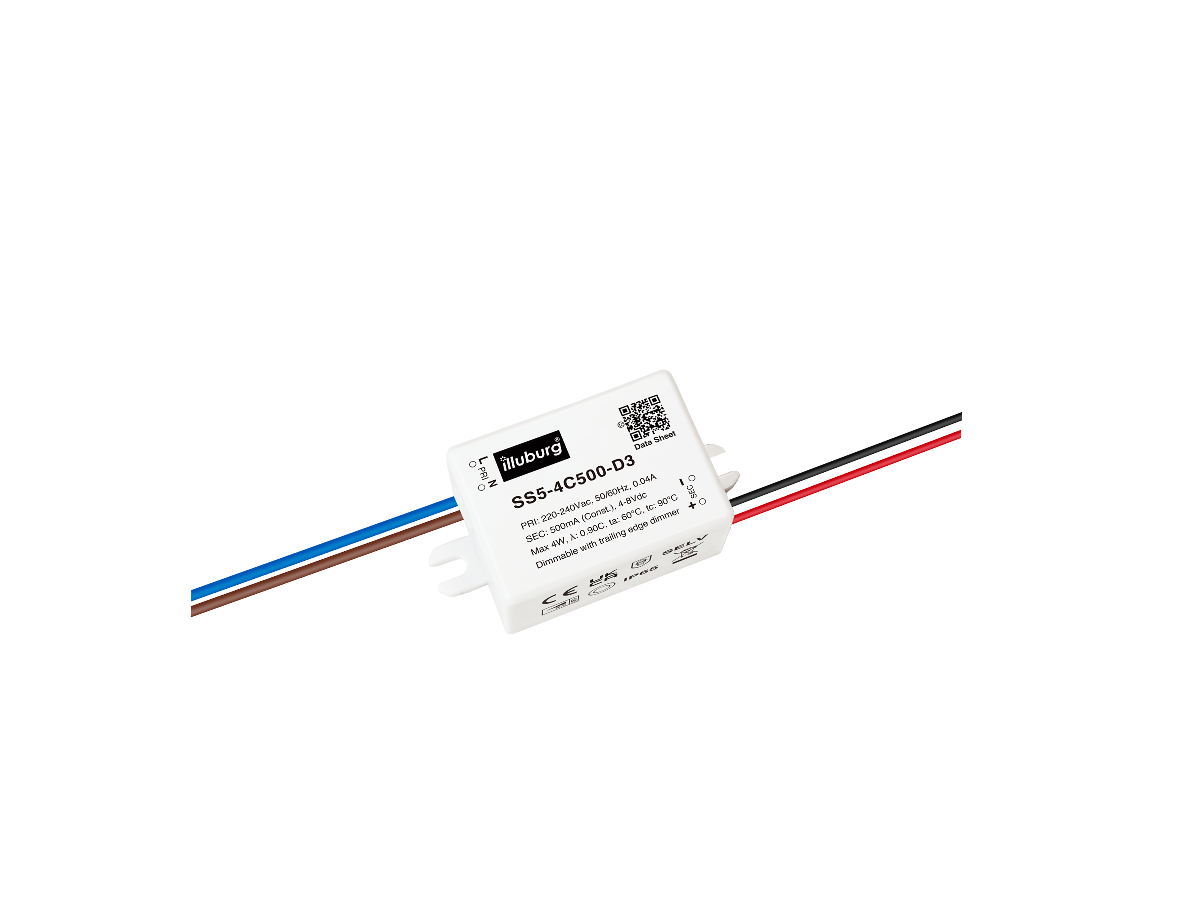

SS5-4C500-D3

LED power supply for 500 mA constant current
4…8 Vdc, 2…4 W, IP65, independent installation
Trailing edge (TRIAC) dimmable

Electrical Data

Input Voltage (nominal)220…240 Vac
Input Voltage (range)198…264 Vac
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.90C    Full load
Input Current0.04 A max.
Inrush Current5 A max.
Output Voltage4…8 Vdc
Output Current500 mA
Output Power (nominal)2…4 W
Efficiency≥ 66 %    Full load
Life Time> 50,000 h
Dimming ModeTRIAC (trailing edge)



Operating Condition

Operating Ambient Temperature (ta)-20…+60 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. Humidity5…85 %
Protection ClassII
Type of ProtectionIP65



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *
Overvoltage ProtectionYes *  > 15 Vdc
No-Load ProtectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 62384, EN 60598-1
EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

Cable length, input side180 ± 5 mm
Cable length, output side180 ± 5 mm
Cable Cross-Section, input side2 x 20 AWG
Cable Cross-Section, output side2 x 22 AWG
Cable Preparation Length, input side5 mm
Cable Preparation Length, output side5 mm
