US-100V48G1 (48V 100W)
17,85€
In stock
In stock
Description
LED Trafo 48V 100W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator

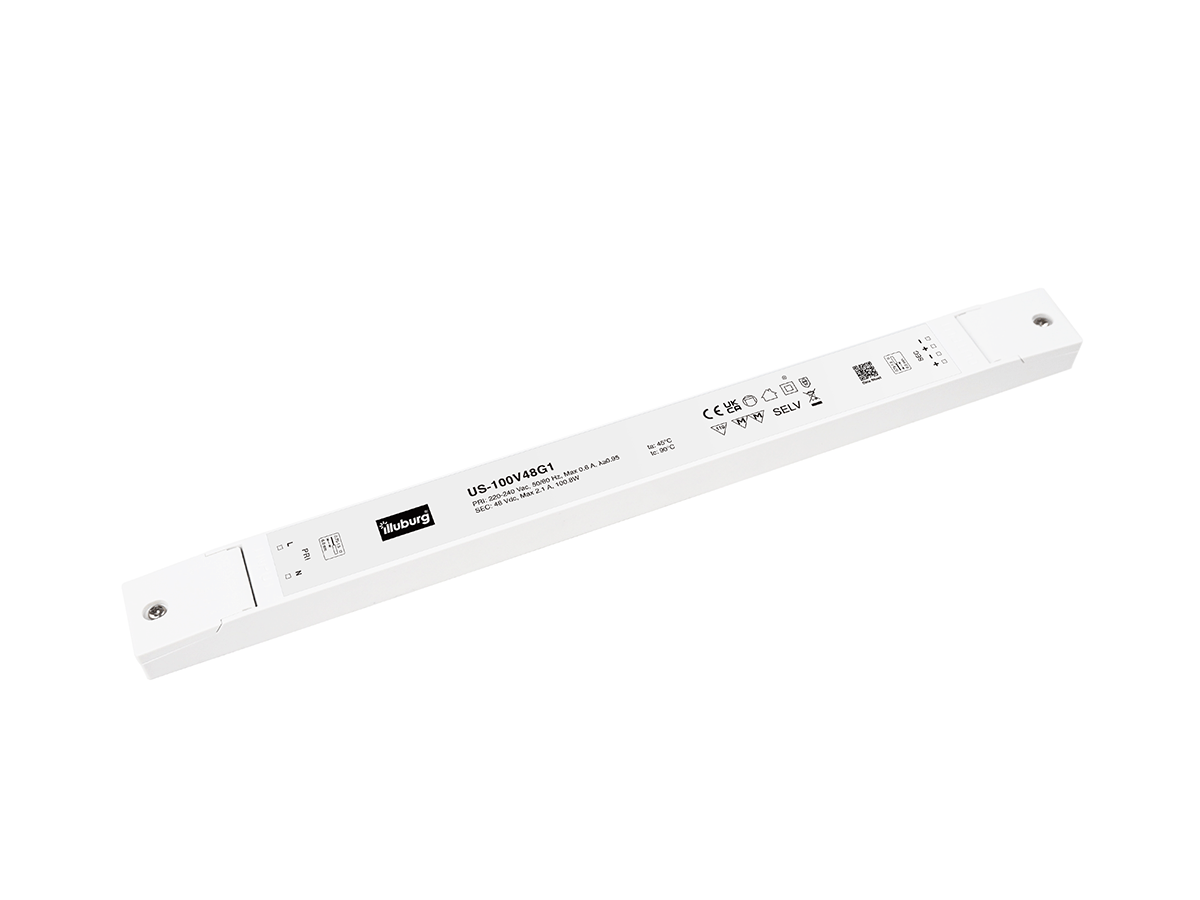

US-100V48G1
LED power supply for 48 Vdc constant voltage
2.1 A (100 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 176…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 220…240 Vac |
| Input Current | 0.6 A max. |
| No-load loss | ≤ 0.5 W |
| Inrush Current | 45 A max. |
| Leakage Current | < 250 μA |
| Output Voltage | 48 Vdc |
| Output Current | 0…2.1 A |
| Output Power (nominal) | 100 W max. |
| Efficiency | ≥ 90 % |
| Life Time | > 100,000 h |
| Dimmable | No |
LED Trafo 48V 100W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
Operating Condition
| Operating Ambient Temperature (ta) | -25…+45 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overcurrent Protection | Yes * 120…180 % |
| Overvoltage Protection | Yes * 110…150 % |
| Overheating Protection | Yes * 90 < Tc < 110 ℃ |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
LED Trafo 48V 100W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Prüfzeichen | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-section, input side | 0.75…1.5 mm² |
| Cable Cross-section, output side | 0.75…1.5 mm² |
| Cable Preparation length, input side | 6.0 mm |
| Cable Preparation length, output side | 6.0 mm |
Dimension
Connection
LED power supply US-100V48G1: LED transformer constant voltage, input 220 – 240 V (AC), output 48 V (DC), non-dimmable, flicker-free, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 100 W, parallel connection possible. Our products can be used with full load.

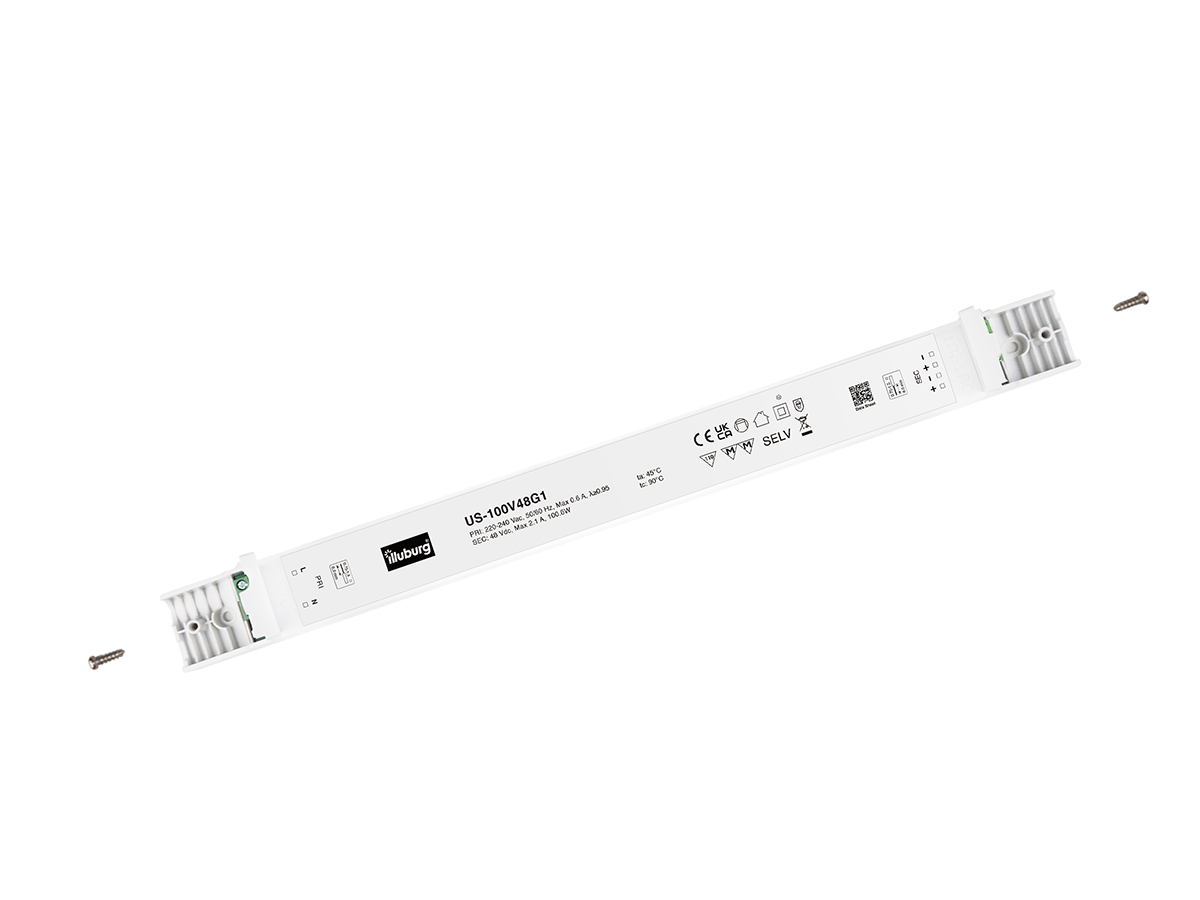

Assembly: dimensions 350 x 30 x 18 mm (L x W x H), ambient temperature (ta) -25 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Flicker-free: flicker-free light source provides better eye protection and guarantees high-quality video recording.
Safety: Protection class IP20, protection device equipped with overcurrent protection, short circuit protection, overvoltage protection and overheating protection.
Quality: CE, TÜV, MM approval; Service life > 65.000 hours; Surface temperature (tc) 90°C.
huatec led transformer power supply driver transformator 48v 48 volt dc constant voltage same voltage flicker-free super slim 100w 100 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 48V 100W constant voltage slim
