700…1400mA, DALI dimmable, 60W, IP20, 123x79x24mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 21,99€ |
| 5 - 9 | 21,59€ |
| 10 - 19 | 21,19€ |
| 20 + | 20,79€ |
ST-60CL-DALI2
21,99€
In stock
In stock
Description

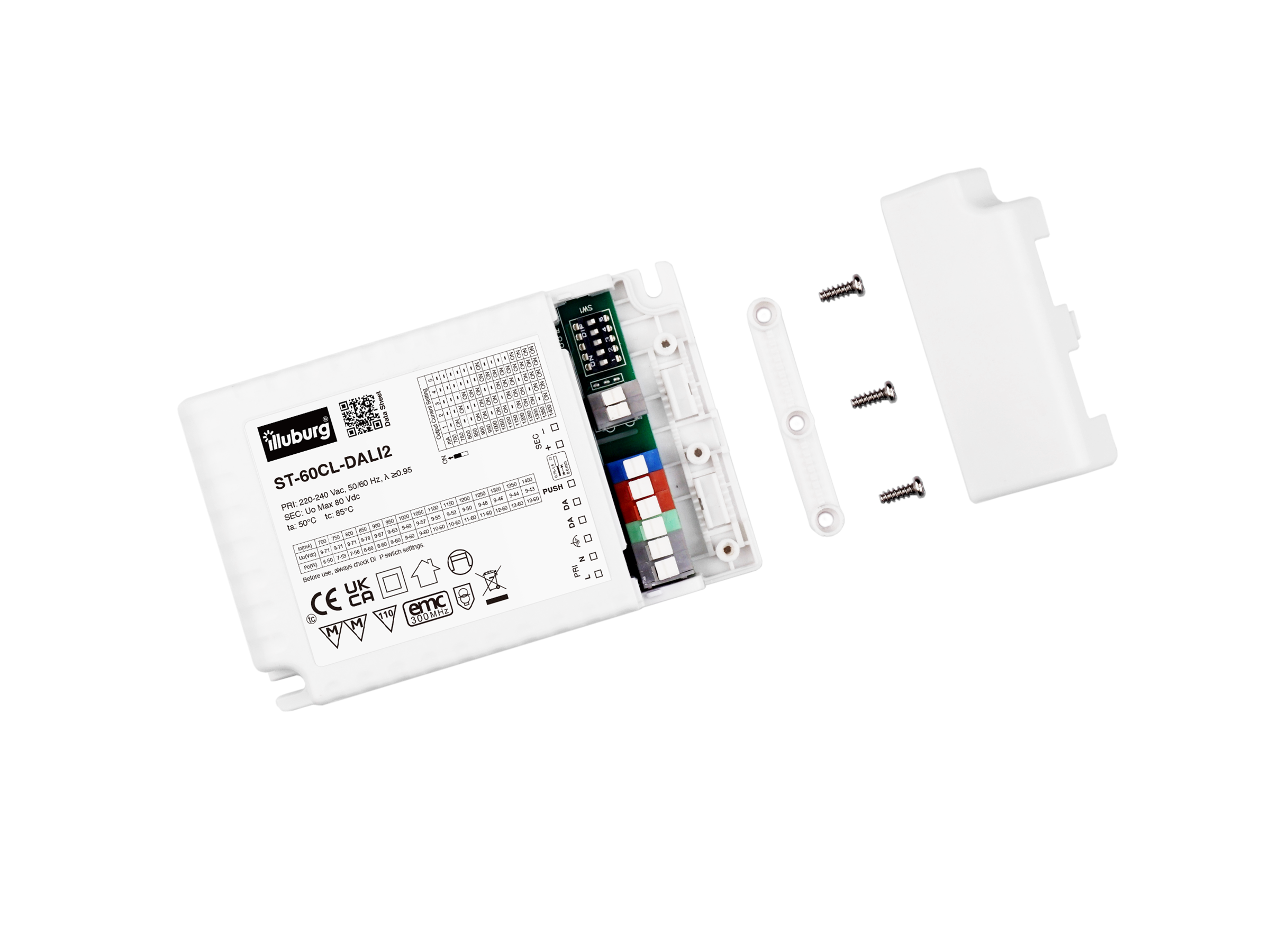

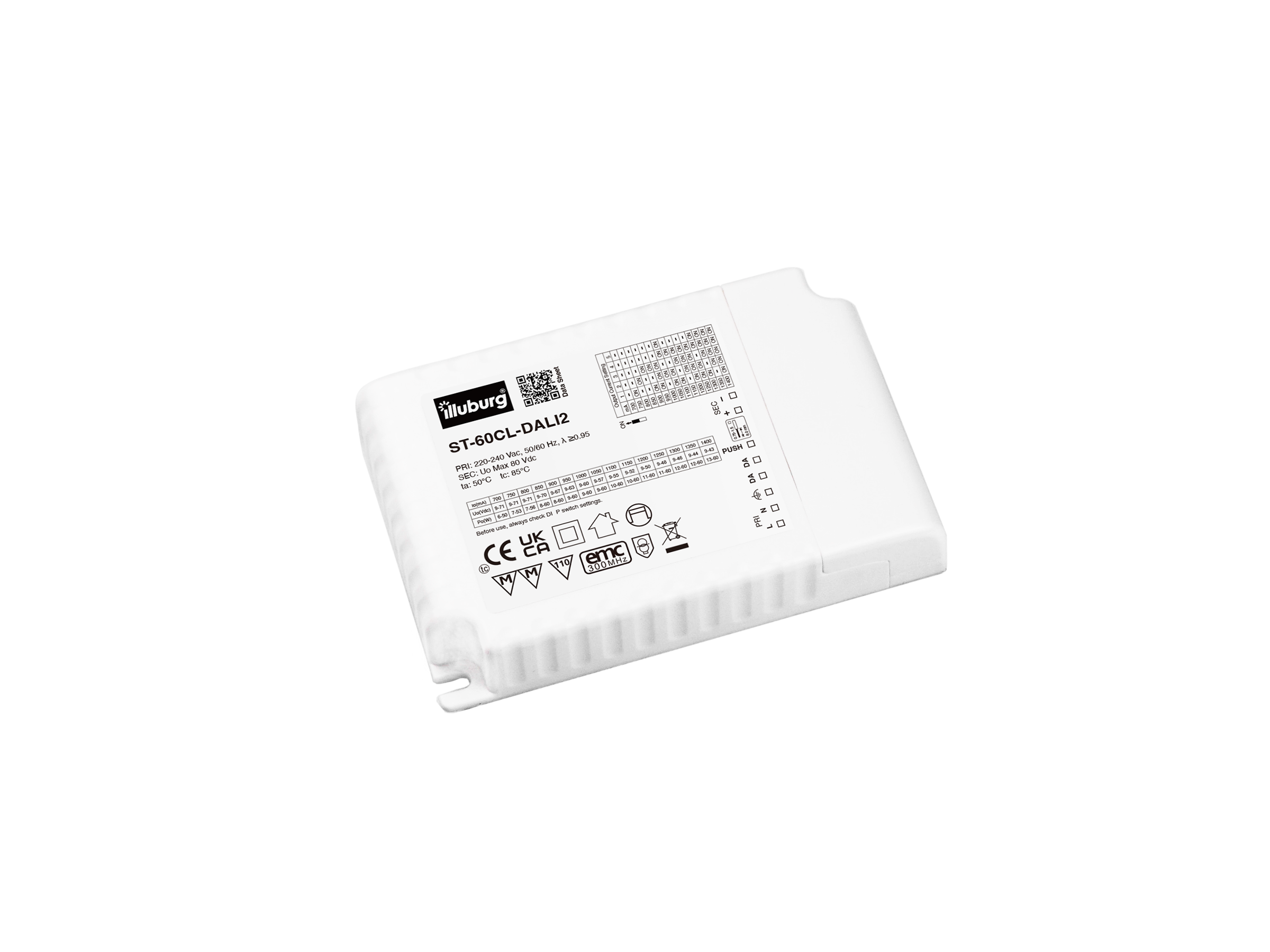

ST-60CL-DALI2
LED power supply with adjustable output current
60 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage Range | 198…264 Vac |
| Input Voltage Range (DC) | 200…240 Vdc |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load, 230 Vac |
| Input Current | 0.34 A max. |
| Inrush Current | 16 A max. |
| No-load Loss | ≤ 0.5 W |
| Output Current | 700 mA, 9-71 Vdc, 6-50 W 750 mA, 9-71 Vdc, 7-53 W 800 mA, 9-71 Vdc, 7-56 W 850 mA, 9-70 Vdc, 8-60 W 900 mA, 9-67 Vdc, 8-60 W 950 mA, 9-63 Vdc, 9-60 W 1000 mA, 9-60 Vdc, 9-60 W 1050 mA, 9-57 Vdc, 9-60 W 1100 mA, 9-55 Vdc, 10-60 W 1150 mA, 9-52 Vdc, 10-60 W 1200 mA, 9-50 Vdc, 11-60 W 1250 mA, 9-48 Vdc, 11-60 W 1300 mA, 9-46 Vdc, 12-60 W 1350 mA, 9-44 Vdc, 12-60 W 1400 mA, 9-43 Vdc, 13-60 W |
| Efficiency | 88 % Full Load, 230 Vac |
| Life Time | 5 Years |
| Dimming mode | DALI-2 (0-100 %), Primary PUSH (0-100 %) |
Operating Condition
| Operating temperature range (ta) | -25…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 10…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Dali Standard (DT-6) | IEC 62386-102, IEC 62386-207 |
| Prüfzeichen | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |
Dimension
Connection
Connection instructions
