SS-20CM-DALI2 (300…700mA 20W)
16,99€
In stock
In stock
Description

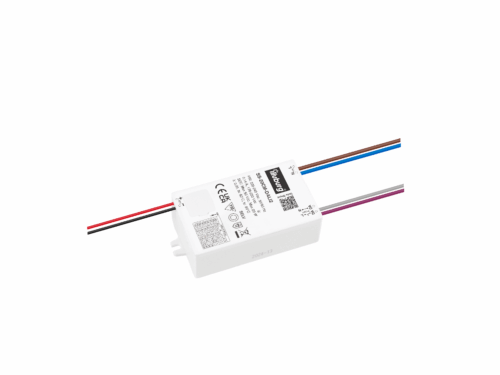

SS-20CM-DALI2
LED power supply with adjustable output current
20 W max., IP20, built-in installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage Range | 198…264 Vac |
| Input Voltage Range (DC) | 176…250 Vdc |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | 0.95 |
| Input Current | 0.14 A max. |
| Inrush Current | 10 A max. |
| No-load Loss | ≤ 0.5 W |
| Output Current | 300 mA, 2…42 Vdc, 0.6…12.6 W 350 mA, 2…42 Vdc, 0.7…14.7 W 400 mA, 2…42 Vdc, 0.8…16.8 W 450 mA, 2…42 Vdc, 0.9…18.9 W 500 mA, 2…40 Vdc, 1…20 W 550 mA, 2…36 Vdc, 1.1…19.8 W 600 mA, 2…33 Vdc, 1.2…19.8 W 700 mA, 2…28 Vdc, 1.4…19.6 W |
| Efficiency | 83 % |
| Life Time | > 50.000 h |
| Dimming | DALI-2 (0.1-100 %), Primary PUSH (0.1-100 %) |
Operating Condition
| Operating Temperature Range (ta) | -20…+60 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
| No-load Protection | Yes * |
| Overload Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547, EN 62384 EN 61000-3-2, EN 61000-3-3 |
| DALI Standard (DT-6) | EN 62386-101, EN 62386-102 EN 62386-207, EN 62386-251 EN 62386-252, EN 62386-253 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable Length, Input Side | 180 ± 10 mm |
| Cable Length, Output Side | 180 ± 10 mm |
| Cable Length, DALI | 180 ± 10 mm |
| Cable Cross-section, Input Side | 2 x 0.75 mm² |
| Cable Cross-section, Output Side | 2 x 22 AWG |
| Cable Cross-section, DALI | 2 x 0.5 mm² |
| Cable Preparation Length, Input Side | 10 mm |
| Cable Preparation Length, Output Side | 10 mm |
| Cable Preparation Length, DALI | 10 mm |
Dimension
Connection
