| Menge | Preis |
| 1 - 4 | 5,24€ |
| 5 - 9 | 5,09€ |
| 10 - 19 | 4,99€ |
| 20 + | 4,89€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU

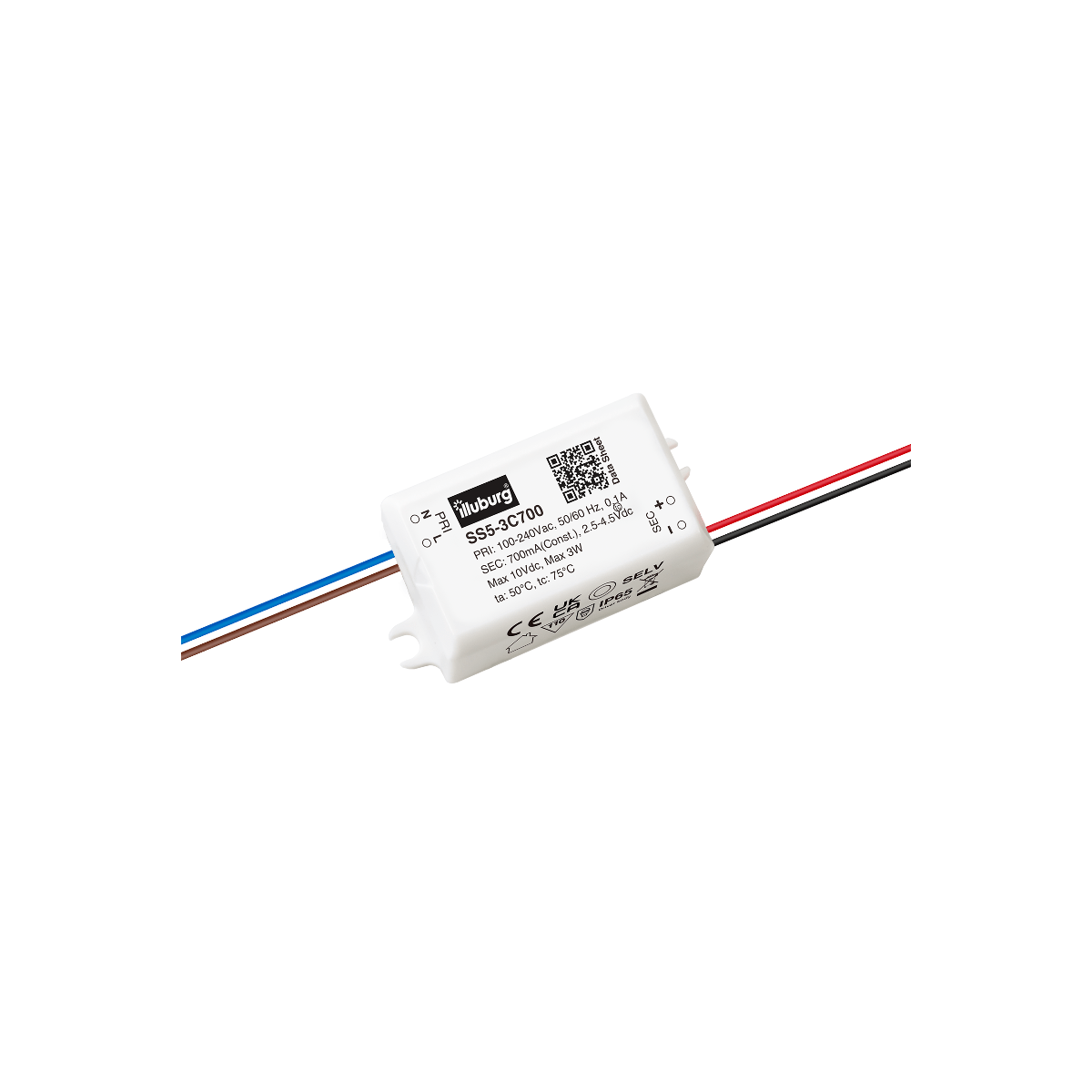

SS5-3C700 (700mA 3W)
5,24€
In stock
In stock
Description
LED Trafo 700mA 3W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
SS5-3C700
LED power supply for 700 mA constant current
2.5…4.5 Vdc, 1.75…3.15 W, IP65, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 100…240 Vac |
| Input Voltage (AC) | 90…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.5 Full load, 230 Vac |
| Input Current | 0.1 A max. |
| Inrush current | 20 A max. |
| No-load loss | ≤ 0.5 W |
| Output Voltage | 2.5…4.5 Vdc |
| Output Current | 700 mA |
| Output Power (nominal) | 1.75…3.15 W |
| Efficiency | ≥ 68 % Full load, 230 Vac |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 75 °C |
| Permitted rel. Humidity | 10…90 % |
| Protection Class | II |
| Type of Protection | IP65 |
LED Trafo 700mA 3W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 103…150 % |
| Overvoltage Protection | Yes * > 10 Vdc |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable Length, input side | 280 ± 10 mm |
| Cable Length, output side | 280 ± 10 mm |
| Cable Cross-Section, input side | 2 x 20 AWG |
| Cable Cross-Section, output side | 2 x 20 AWG |
| Cable Preparation Length, input side | 5…6 mm tinned |
| Cable Preparation Length, output side | 5…6 mm tinned |

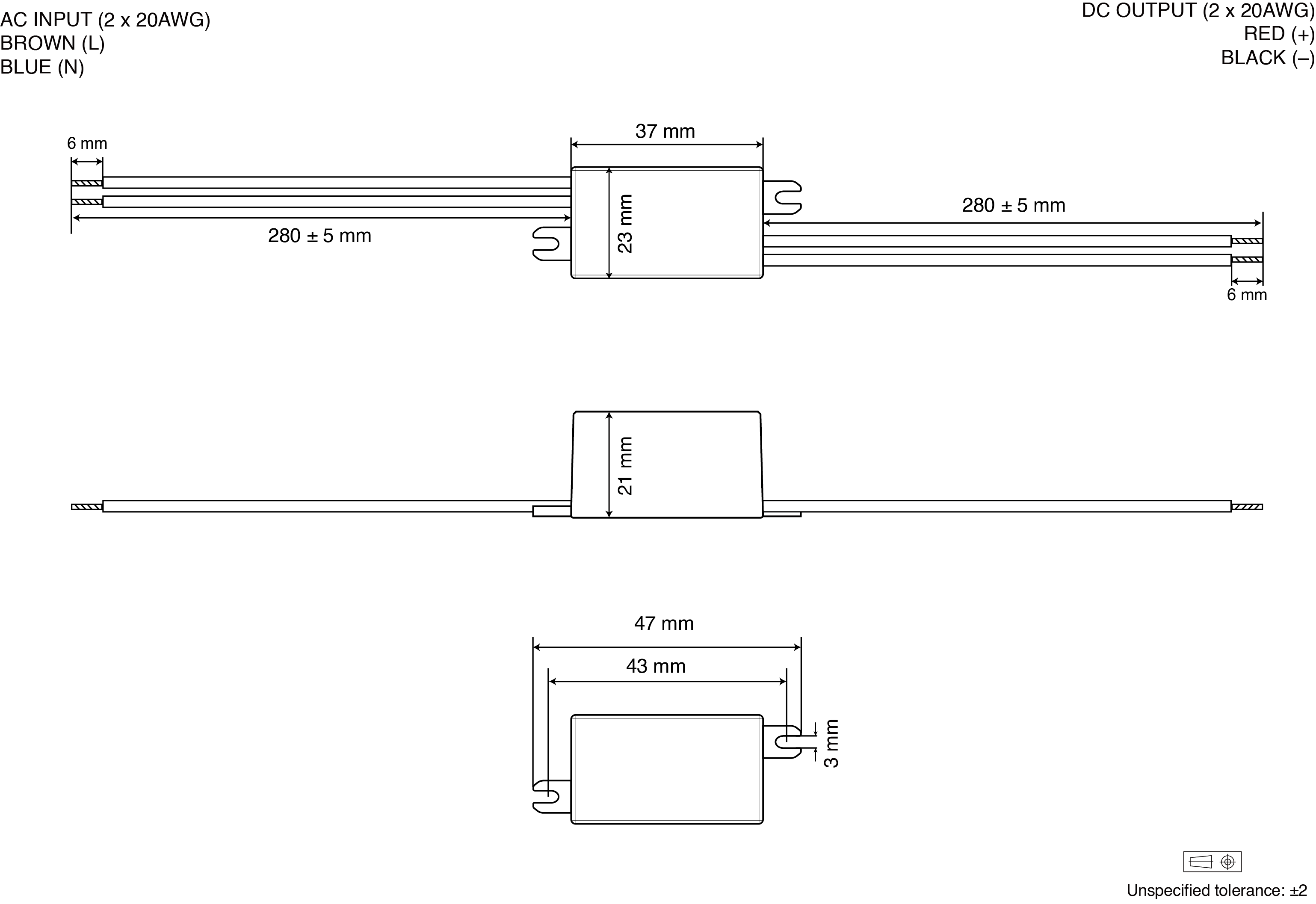

Dimension
Connection
