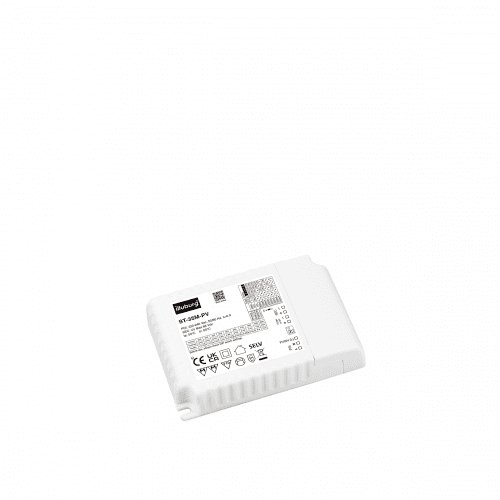

ST-35M-PV (250…800mA 35W)

Out of stock

MengePreis
1 - 418,99
5 - 918,29
10 - 1917,69
20 +16,99

Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Out of stock

Description

ST-35M-PV

LED power supply with adjustable output current & voltage
35 W max., IP20, independent installation
Dimmable with 0-10V, PUSH (primary & secondary)

Electrical Data

Input Voltage220…240 Vac
Mains Frequency50/60 Hz
Power Factor (λ)> 0.9
Input Current0.2 A max.
Output Voltage68 Vdc max.
Output Current250 mA constant, 6-60 Vdc, 1.5-15 W
350 mA constant, 6-60 Vdc, 2.1-21 W
450 mA constant, 6-60 Vdc, 2.7-27 W
500 mA constant, 6-60 Vdc, 3-30 W
550 mA constant, 6-60 Vdc, 3.3-33 W
600 mA constant, 6-58 Vdc, 3.6-34.8 W
700 mA constant, 6-50 Vdc, 4.2-35 W
800 mA constant, 6-44 Vdc, 4.8-35.2 W
12 Vdc constant, 800 mA max., 9.6 W max.
24 Vdc constant, 800 mA max., 19.2 W max.
Output Power (nominal)35 W max.
Dimming mode0-10V, Primary PUSH, Secondary PUSH
Dimming range1…100 %



Operating Condition

Operating temperature range (ta)-25…+50 °C
Max. Surface Temperature (tc)85 °C
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overvoltage protectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
Standards (EMC)EN 55015, EN 61547
EN61000-3-2, EN61000-3-3
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

Type of InstallationIndependent installation
Type of ConnectionSpring-loaded terminal
Cable Cross-Section, input side0.5…1.5 mm²
Cable Cross-Section, output side0.5…1.5 mm²
Cable Preparation Length, input side8 mm
Cable Preparation Length, output side8 mm



Dimension



Connection
