ST-50M-DALI2 (700…1400mA 50W)

In stock

Menge Preis
1 - 4 21,89
5 - 9 21,49
10 - 19 20,99
20 + 20,49

Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LS-50M-DALI2

LED power supply with adjustable output current
50 W max., IP20, independent installation
Dimmable with DALI, 1-10V, PUSH (pri.)
Flickerfree according to IEEE 1789

Electrical Data

Input Voltage (range) 198…264 Vac
Input Voltage (AC) 220…240 Vac
Input Voltage (DC) 200…240 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) ≥ 0.95  Full Load, 230 Vac
Input Current 0.27 A max.
Inrush Current 15 A max.
Output Voltage 9…58 Vdc
Output Current 700 mA constant, 9-58 Vdc,6.3-40.6 W
800 mA constant, 9-58 Vdc,7.2-46.4 W
900 mA constant, 9-56 Vdc, 8.1-50 W
1050 mA constant, 9-48 Vdc, 9.4-50 W
1200 mA constant, 9-41 Vdc, 10.8-50 W
1300 mA constant, 9-38 Vdc, 11.7-50 W
1400 mA constant, 9-36 Vdc, 12.6-50 W
Output Power (nominal) 50 W max.
Efficiency ≥ 86 %  Full Load, 230 Vac
Life Time > 50,000 h  50 °C
Dimming mode DALI, 1-10V, PUSH (pri.)
Dimming range 0…100 %  Primary PUSH & DALI dimming
2…100%  1-10V dimming



Operating Condition

Operating temperature range (ta) -25…+50 °C
Max. Surface Temperature (tc) 85 °C
Permitted rel. Humidity 10…95 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overload protection Yes *
Overvoltage protection Yes *
Overheating Protection Yes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 55015, EN 61547
Standards (DALI) IEC 62386-102 (1.0)
IEC 62386-207 (1.0)
Approval Marks CE
RoHS Compliant Yes



Installation

Type of Installation Independent installation
Type of Connection Spring-loaded terminal
Cable Cross-Section, input side 0.75…1.5 mm²
Cable Cross-Section, output side 0.75…1.5 mm²
Cable Preparation Length, input side 8 mm
Cable Preparation Length, output side 8 mm

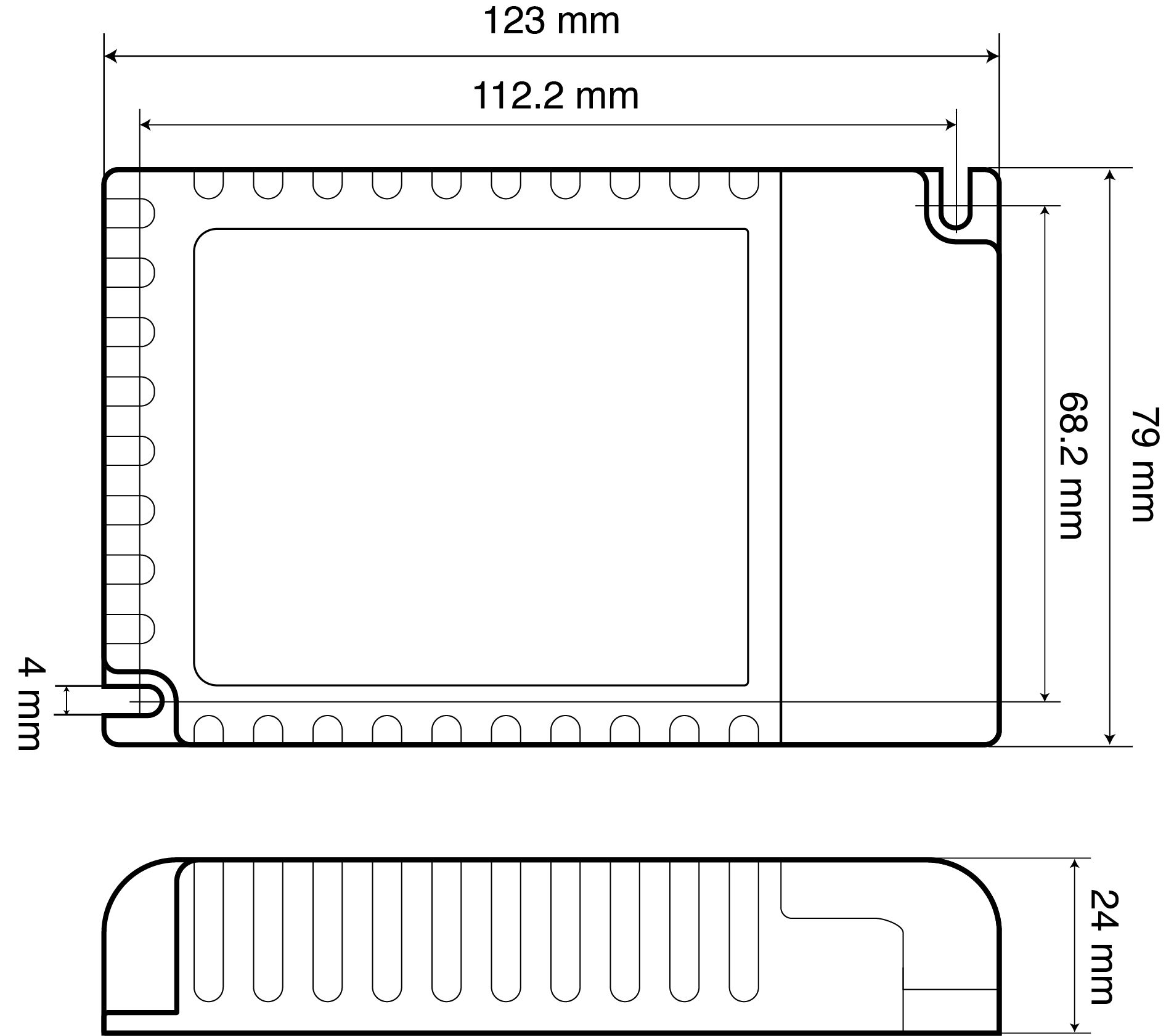

Dimension

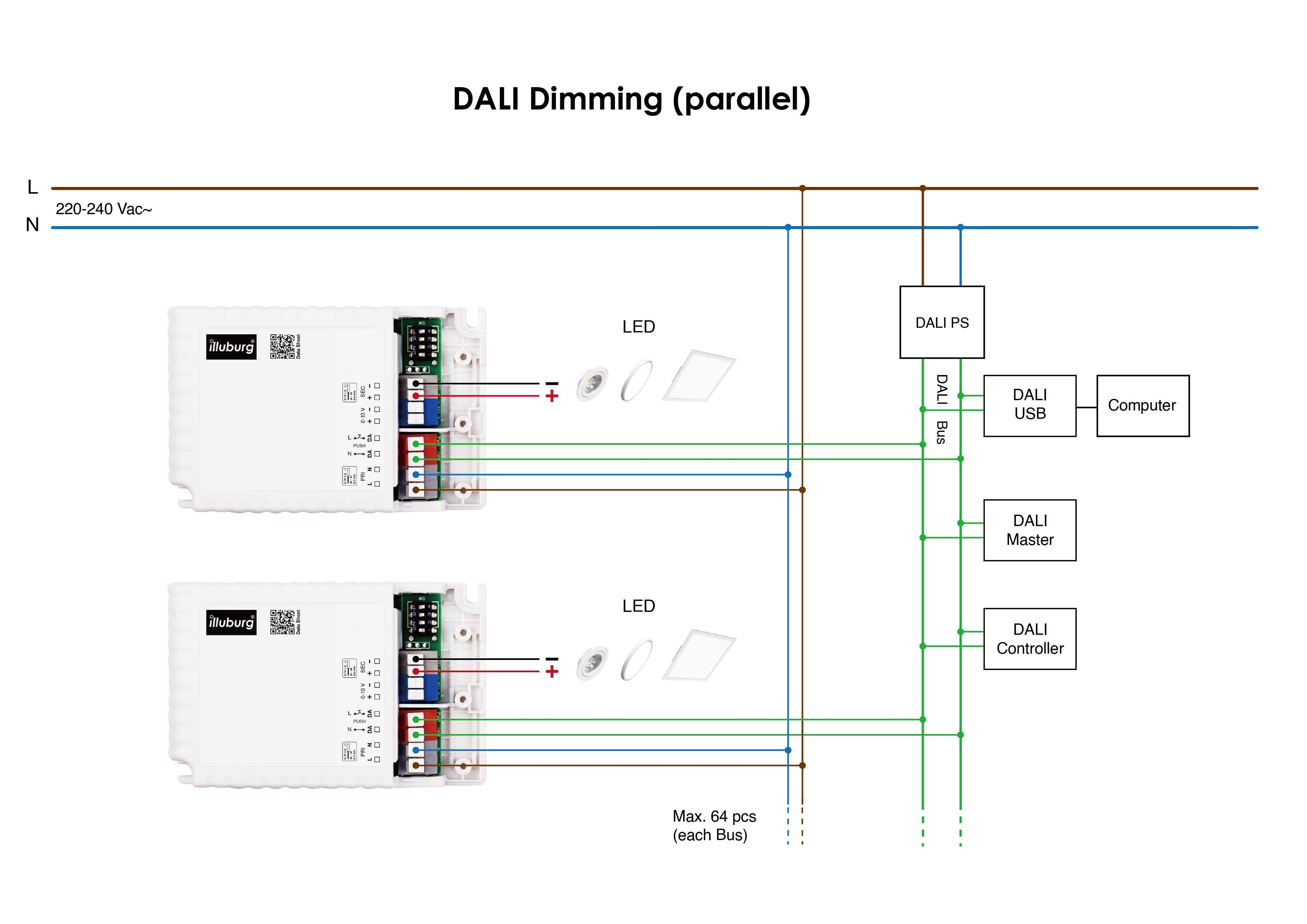

Connection
