Flexible LED Strip 10 m Roll
480 LEDs/m, 140 lm/W, 11 W/m, 24 V, 4000 K

COB LED strip 24V neutral white 4000K 480LEDs/m 140lm/W Flexible LED band

Technical Data

Dimension

Connection instructions

illuburg 24V COB LED Strip Neutal White 4000K 10m 480LEDs/m CRI90+ Dimmable Self-adhesive LED Strip Light Band Bar Chain

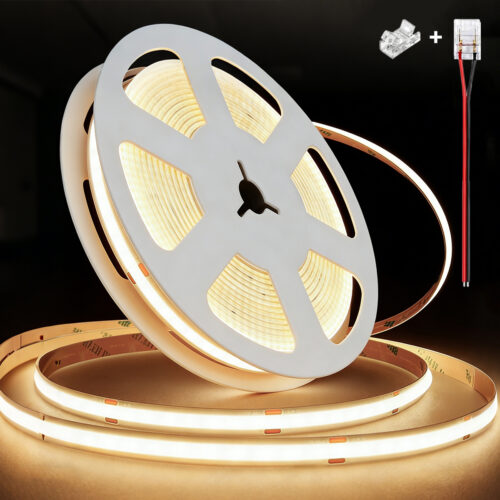

LED Strip CH8-480B-NW10: 24 V constant voltage flexible COB LED strip, 4000 K neutral white, 4800 LEDs (480 LEDs/m), 10 metres.
BRIGHTNESS: Uniform light with luminous flux 1540 lm/m, efficiency 140 lm/W, beam angle 140°, colour rendering index 90+, energy efficiency class D (according to Regulation EU2019/2015).
SOLDER-FREE: Thanks to the roll-to-roll process and solder-free design, the LED strip achieves significantly higher durability and lower brightness loss at the same time.
INSTALLATION: Width 8 mm, height 1.5 mm, easy to cut with section length of 50 mm (24 LEDs each), protection class IP20.
USE: The double-sided 3M adhesive tape on the back simplifies installation on various surfaces such as furniture, kitchens, mirrors, etc.
QUALITY: Service life > 50,000 hours, operating temperature -25 to +45 °C. Scope of delivery: 1 x 10 metre LED strip without power supply, 2 x connectors (1 x wire to board, 1 x board to board).
