Price on request with order quantity
For price inquiry, order or other questions about our products and our services, please contact us
In stock
Menge | Preis |
1 - 4 | 24,57€ |
5 - 9 | 23,69€ |
10 - 19 | 22,99€ |
20 + | 22,29€ |
Price on request with order quantity
For price inquiry, order or other questions about our products and our services, please contact us
In stock
LED Trafo 12V 150W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
US-150V12T
LED power supply for 12 Vdc constant voltage
11 A (132 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | 0.95 Full Load |
Input Current | 0.9 A max. Full Load |
No-load loss | ≤0.5 W |
Inrush Current | 70 A max. |
Output Voltage | 12 Vdc |
Output Current | 0…11 A |
Output Power (nominal) | 132 W max. |
Efficiency | ≥ 92 % |
Life Time | 35,000 h 45 °C |
Dimmable | No |
Operating Condition
LED Trafo 12V 150W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
Operating Ambient Temperature (ta) | -25…+45 °C |
Max. Surface Temperature (tc) | 85 °C |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overvoltage protection | Yes * |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 62493, EN57710 |
Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
Approval Marks | CE, UKCA |
Installation
LED Trafo 12V 150W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
Type of Installation | Independent installation |
Type of Connection | Screw terminal |
Cable Cross-section, input side | 0.75…1.5 mm² |
Cable Cross-section, output side | 0.75…1.0 mm² |
Cable Preparation length, input side | 6.0 mm |
Cable Preparation length, output side | 6.0 mm |
Dimension

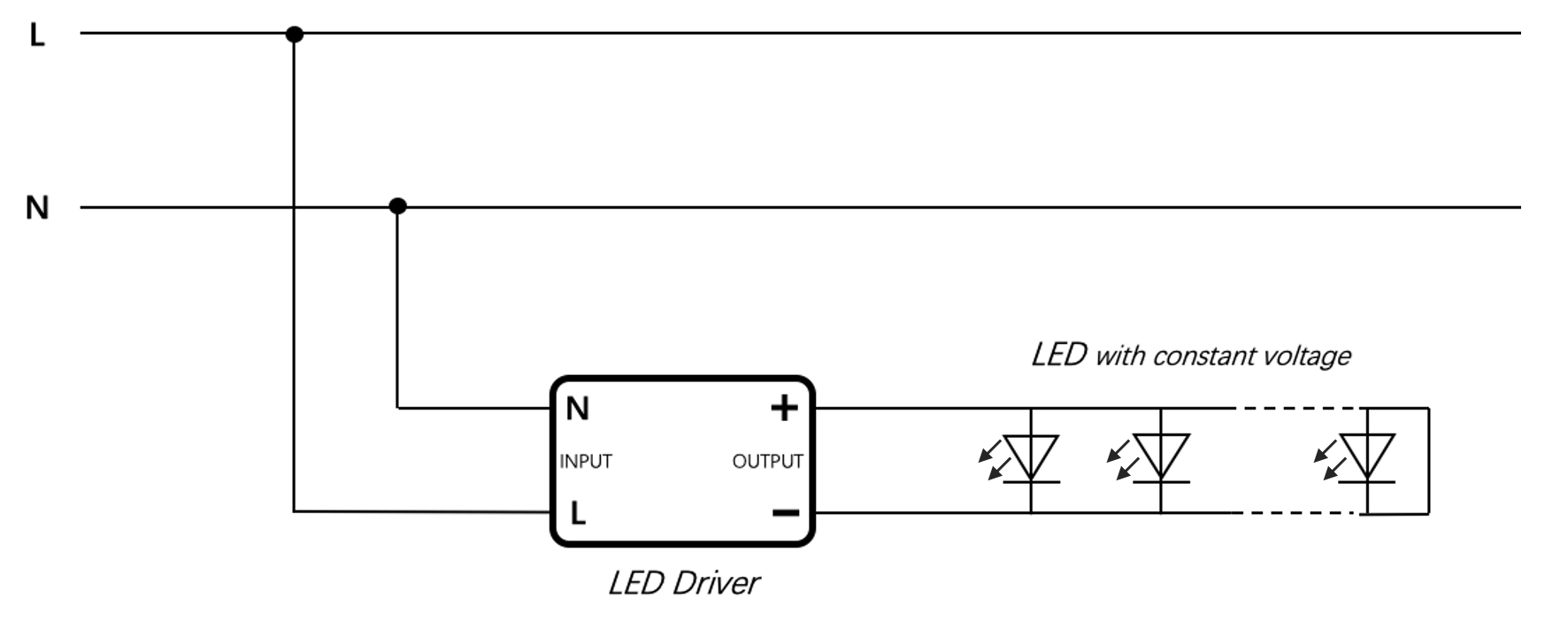

Connection
