12Vdc constant, 30W, IP20, 95x53x33mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 7,89€ |
| 5 - 9 | 7,69€ |
| 10 - 19 | 7,49€ |
| 20 + | 7,29€ |
SS-30V12
7,89€
In stock
In stock
Description

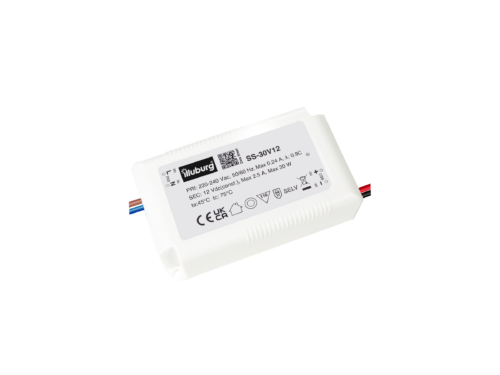

Illuburg LED Driver 12V 30W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
SS-30V12
LED power supply for 12 Vdc constant voltage
2.5 A (30 W) max., IP20, Built-in installation, non-dimmable
Flickerfree according to IEEE 1789
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 198…264 Vac |
| Mains frequency | 50/60 Hz |
| Power factor (λ) | ≥ 0.9 C Full Load, 230 Vac |
| Input current | 0.24 A max. Full Load, 198 Vac |
| No-load loss | ≤ 0.5 W |
| Output voltage | 12 Vdc |
| Output current | 0…2.5 A |
| Output power (nominal) | 30 W max. |
| Efficiency | ≥ 85 % |
| Life time | > 30.000 h |
| Dimmable | No |
LED Driver 12V 30W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer
Operating Condition
| Operating ambient temperature (ta) | -20…+45 °C |
| Max. surface temperature (tc) | 75 °C |
| Permitted rel. humidity | 20…60 % |
| Protection class | II |
| Type of protection | IP20 |
Protection
| Short circuit protection | Yes * |
| Overload protection | Yes * 105…150 % |
| Overvoltage protection | Yes * > 12.6 Vdc |
| Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval marks | CE, UKCA |
| RoHS compliant | Yes |
LED Driver 12V 30W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer
Installation
| Cable length, input side | 135 ± 5 mm |
| Cable length, output side | 135 ± 5 mm |
| Cable cross section, input side | 2 x 0.5 mm² (20 AWG) |
| Cable cross section, output side | 2 x 0.5 mm² (20 AWG) |
| Cable preparation length, input side | 6 mm tinned |
| Cable preparation length, output side | 6 mm tinned |
Dimension
Connection
LED POWER SUPPLY SS-30V12: input voltage 220 – 240 V (AC), output voltage 12 V (DC), not dimmable, built-in installation.
OUTPUT POWER: for LED (strips, lamps) up to 30 W, parallel connection is possible. Our products can be used at full load.
FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.
INSTALLATION: protection type IP20, dimension 95 x 53 x 33 mm (L x W x H), operating temperature (ta) -20 – +45 °C, max. surface temperature (tc) 75 °C.
SECURITY & QUALITY: equipped with overload protection, short circuit protection, overvoltage protection and overheating protection. Certification CE, UKCA, durability > 30.000 hours.
illuburg led driver transformer power supply 12v 12 volt 15w 20w 30w 15 20 30 watt constant voltage flickerfree led strip lamp
LED transformer 12V 30W constant voltage
