CSU-24V12 (12V 24W)

7,77

In stock

MengePreis
1 - 47,77
5 - 97,69
10 - 197,59
20 +7,49



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

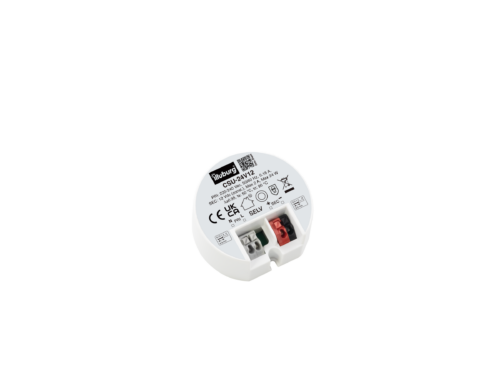

Illuburg LED Driver 12V 24W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer

CSU-24V12

LED power supply for 12 Vdc constant voltage
2 A (24 W) max., IP20, Built-in installation, non-dimmable
Flickerfree according to IEEE 1789

Electrical Data

Input voltage (nominal)220…240 Vac
Input voltage (range)198…264 Vac
Mains frequency50/60 Hz
Power factor (λ)≥ 0.95
Input current0.16 A max.
No-load loss≤0.5 W
Inrush current20 A max.   Full Load, 230 Vac
Leakage current < 250μA I/P to O/P
Output voltage12 Vdc
Output current0.1…2 A
Output power (nominal)24 W max.
Efficiency≥ 86 %    Full Load, 230 Vac
Life time> 50.000 h   
DimmableNo



Operating Condition

LED Driver 12V 24W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer

Operating ambient temperature (ta)-20…+50 °C
Max. surface temperature (tc)90 °C
Permitted rel. humidity10…90 %
Protection classII
Type of protectionIP20



Protection

Short circuit protectionYes *
Overload protectionYes *  
Overvoltage protectionYes *  c
Overheating protectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

NormenEN 61347-1, EN 61347-2-13
EN 62493, EN 55015
EN 61547, EN62384
EN 61000-3-2, EN 61000-3-3
Approval marksCE, UKCA
RoHS compliantYes



Installation

LED Driver 24V 45W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer

Cable cross section, input side0.5…1.5 mm²
Cable cross section, output side0.5…1.5 mm²
Cable preparation length, input side7.0…9.0 mm
Cable preparation length, output side7.0…9.0 mm



Dimension





Connection



LED POWER SUPPLY SS-18V24: input voltage 220 – 240 V (AC), output voltage 24 V (DC), not dimmable, built-in installation.
OUTPUT POWER: for LED (strips, lamps) up to 18 W, parallel connection is possible. Our products can be used at full load.
FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.
INSTALLATION: protection type IP20, dimension 55x 23 mm (D x H), operating temperature (ta) -20 – +50 °C, max. surface temperature (tc) 90 °C.
SECURITY & QUALITY: equipped with overload protection, short circuit protection, overvoltage protection and overheating protection. Certification CE, UKCA, durability > 50.000 hours.
illuburg led driver transformer power supply 24v 24 volt 13w 14w 15w 18w 24w 13 14 15 18 24watt constant voltage flickerfree led strip lamp
LED transformer 24V 18W constant voltage
