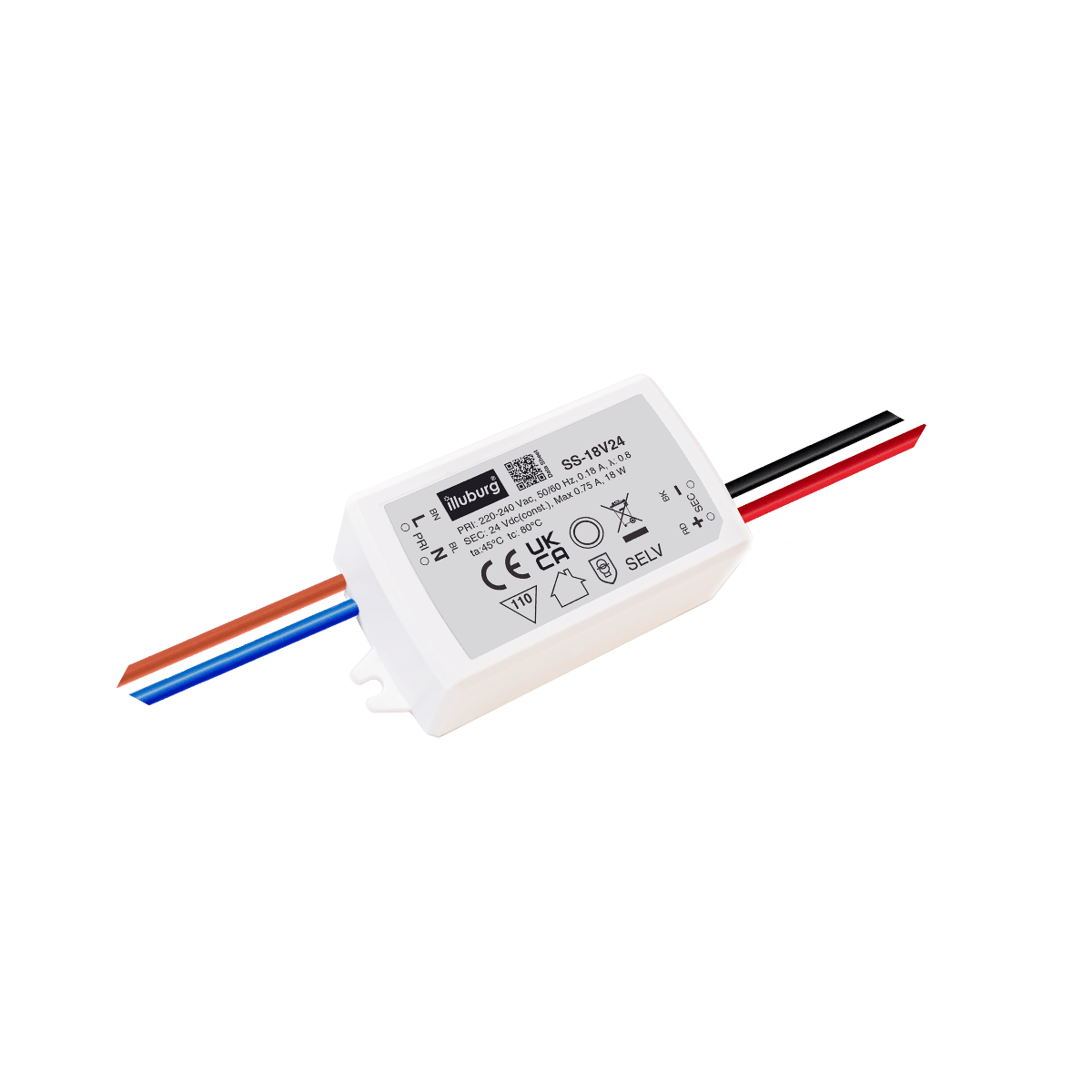

Illuburg LED Driver 24V 18W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
SS-18V24
LED power supply for 24 Vdc constant voltage
0.75 A (18 W) max., IP20, Built-in installation, non-dimmable
Flickerfree according to IEEE 1789
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Input voltage (range) | 176…264 Vac |
Mains frequency | 50/60 Hz |
Power factor (λ) | ≥ 0.85 C Full Load, 230 Vac |
Input current | 0.18 A max. Full Load, 176 Vac |
No-load loss | ≤ 0.5 W |
Inrush current | 10 A max. |
Leakage current | < 0.7 mA |
Output voltage | 24 Vdc |
Output current | 0,75 A max. |
Output power (nominal) | 18 W max. |
Efficiency | ≥ 85 % |
Life time | > 50.000 h |
Dimmable | No |
Operating Condition
LED Driver 24V 18W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer
Operating ambient temperature (ta) | -20…+45 °C |
Max. surface temperature (tc) | 85 °C |
Permitted rel. humidity | 20…90 % |
Protection class | II |
Type of protection | IP20 |
Protection
Short circuit protection | Yes * |
Overload protection | Yes * 105…150 % |
Overvoltage protection | Yes * >25.2 Vdc |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval marks | CE, UKCA |
RoHS compliant | Yes |
Installation
LED Driver 24V 18W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer
Cable length, input side | 160 ± 5 mm |
Cable length, output side | 160 ± 5 mm |
Cable cross section, input side | 2 x 0.5 mm² (20 AWG) |
Cable cross section, output side | 2 x 0.5 mm² (20 AWG) |
Cable preparation length, input side | 6 mm tinned |
Cable preparation length, output side | 6 mm tinned |
Dimension
Connection
LED POWER SUPPLY SS-18V24: input voltage 220 – 240 V (AC), output voltage 24 V (DC), not dimmable, built-in installation.
OUTPUT POWER: for LED (strips, lamps) up to 18 W, parallel connection is possible. Our products can be used at full load.
FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.
INSTALLATION: protection type IP20, dimension 69 x 35 x 23 mm (L x W x H), operating temperature (ta) -20 – +45 °C, max. surface temperature (tc) 85 °C.
SECURITY & QUALITY: equipped with overload protection, short circuit protection, overvoltage protection and overheating protection. Certification CE, UKCA, durability > 30.000 hours.
