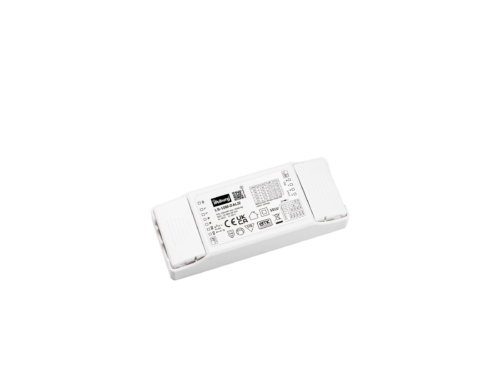

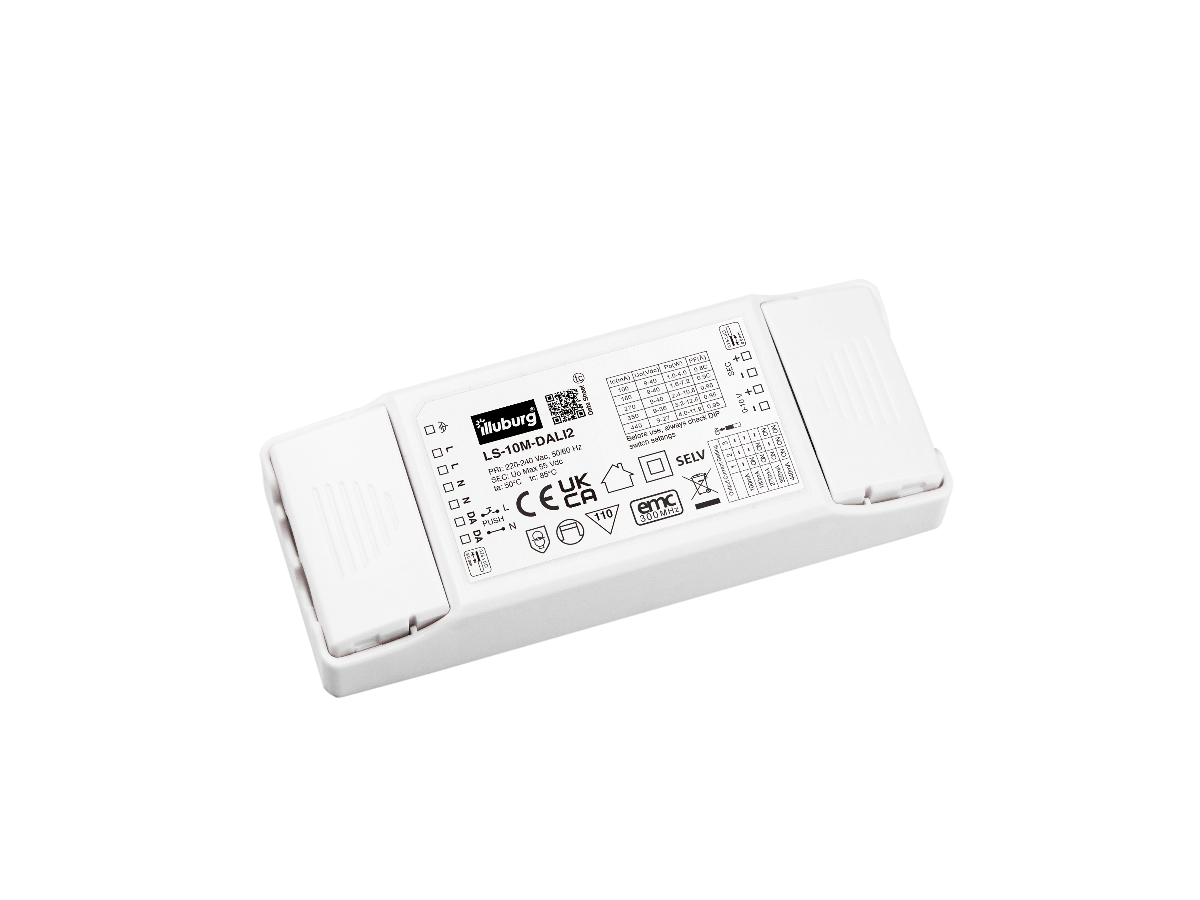

LS-10M-DALI2
LED power supply with adjustable output current
12.6 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.), 0-10V (sec.), PWM
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage Range | 198…264 Vac |
Input Voltage Range (DC) | 200…240 Vdc |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.80C 100 mA, Full Load, 230 Vac ≥ 0.90C 180 mA, Full Load, 230 Vac ≥ 0.95 270…440 mA, Full Load, 230 Vac |
Input Current | 0.07 A max. |
Inrush Current | 8 A max. |
No-load Loss | ≤ 1 W |
Output Current | 100 mA, 9…40 Vdc, 1.0…4.0 W 180 mA, 9…40 Vdc, 1.6…7.2 W 270 mA, 9…40 Vdc, 2.4…10.8 W 350 mA, 9…36 Vdc, 3.2…12.6 W 440 mA, 9…27 Vdc, 4.0…11.9 W |
Efficiency | 79 % |
Life Time | 5 years Full Load, 230 Vac |
Dimming | DALI-2 (0-100 %), Primary PUSH (2-100 %), 0-10V (2-100 %), PWM (2-100 %) |
Operating Condition
Operating temperature range (ta) | -25…+50 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. Humidity | 10…95 % |
Protection Class | I |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 60598-1 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Dali Standard (DT-6) | IEC 62386-102, IEC 62386-207 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |

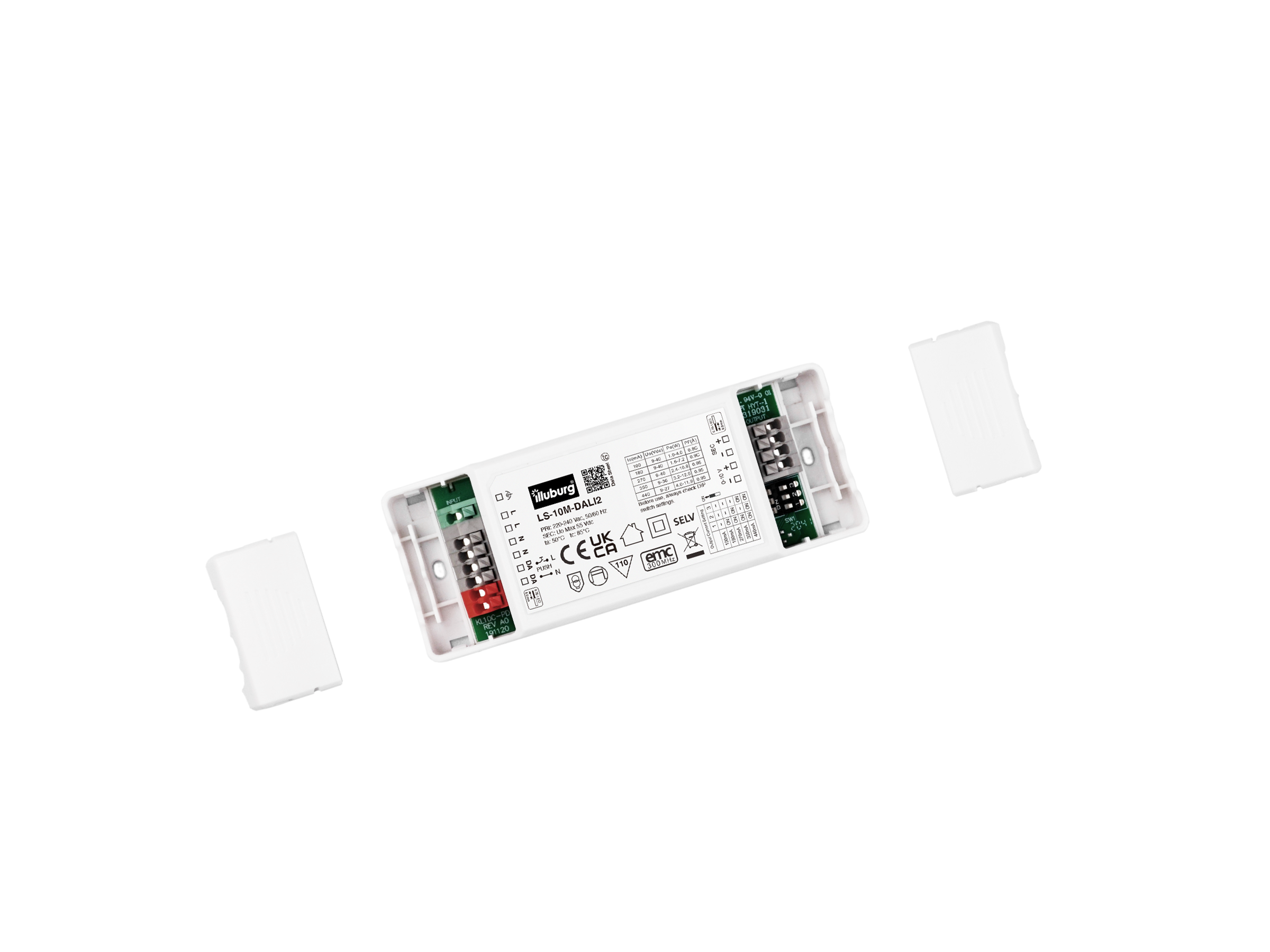

Type of Connection | Spring-loaded terminal |
Cable Cross-Section, input side | 0.75…1.0 mm² |
Cable Cross-Section, output side | 0.75…1.0 mm² |
Cable Preparation Length, input side | 6…8 mm |
Cable Preparation Length, output side | 6…8 mm |
Dimension
Connection
