Menge | Preis |
1 - 4 | 6,08€ |
5 - 9 | 5,99€ |
10 - 19 | 5,89€ |
20 + | 5,79€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
6,08€
In stock
Menge | Preis |
1 - 4 | 6,08€ |
5 - 9 | 5,99€ |
10 - 19 | 5,89€ |
20 + | 5,79€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock

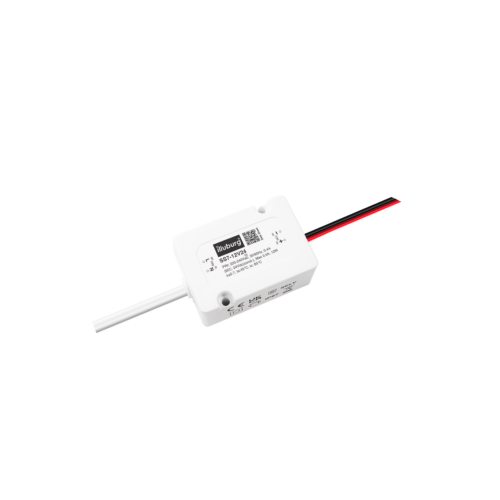

SS7-12V24
LED power supply for 24 Vdc constant voltage
0.5 A (12 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
Input Voltage (range) | 198…264 Vac |
Rated input voltage (AC) | 220…240 Vdc |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.7 Full Load, 220…240 Vac |
Input Current | 0.4 A max. Full Load, 220…240 Vac |
No-Load Loss | ≤ 0.5 W |
Inrush Current | 80 A max. |
Output Voltage | 24 Vdc |
Output Current | 0…0.5 A |
Output Power (nominal) | 12 W max. |
Efficiency | ≥ 73 % Full Load, 230Vac |
Life Time | > 30,000 h |
Dimmable | No |
Operating Condition
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. humidity during operation | 20…90 % |
Protection Class | Class II |
Type of Protection | IP67 |
Protection
Short Circuit Protection | Yes * |
Overvoltage Protection | Yes * |
Overload Protection | Yes * |
(*) The output turns off and can be restored after correcting the problem and restarting the power supply.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE,UKCA |
RoHS Compliant | Yes |
Installation
Type of installation | Built in installation |
Cable length, input side | 190 ± 10 mm |
Cable length, output side | 190 ± 10 mm |
Cable cross-section, input side | 2 x 0.75 mm² |
Cable cross-section, output side | 2 x 22 AWG |
Cable Preparation Length, input side | 4 mm tinned |
Cable Preparation Length, output side | 4 mm tinned |
Dimension
Connection
