24Vdc, DALI dimmable, 150W, IP20, 350x30x18mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 32,99€ |
| 5 - 9 | 32,39€ |
| 10 - 19 | 31,79€ |
| 20 + | 31,19€ |
US-150V24G-DALI2
32,99€
Only 3 left in stock
Only 3 left in stock
Description

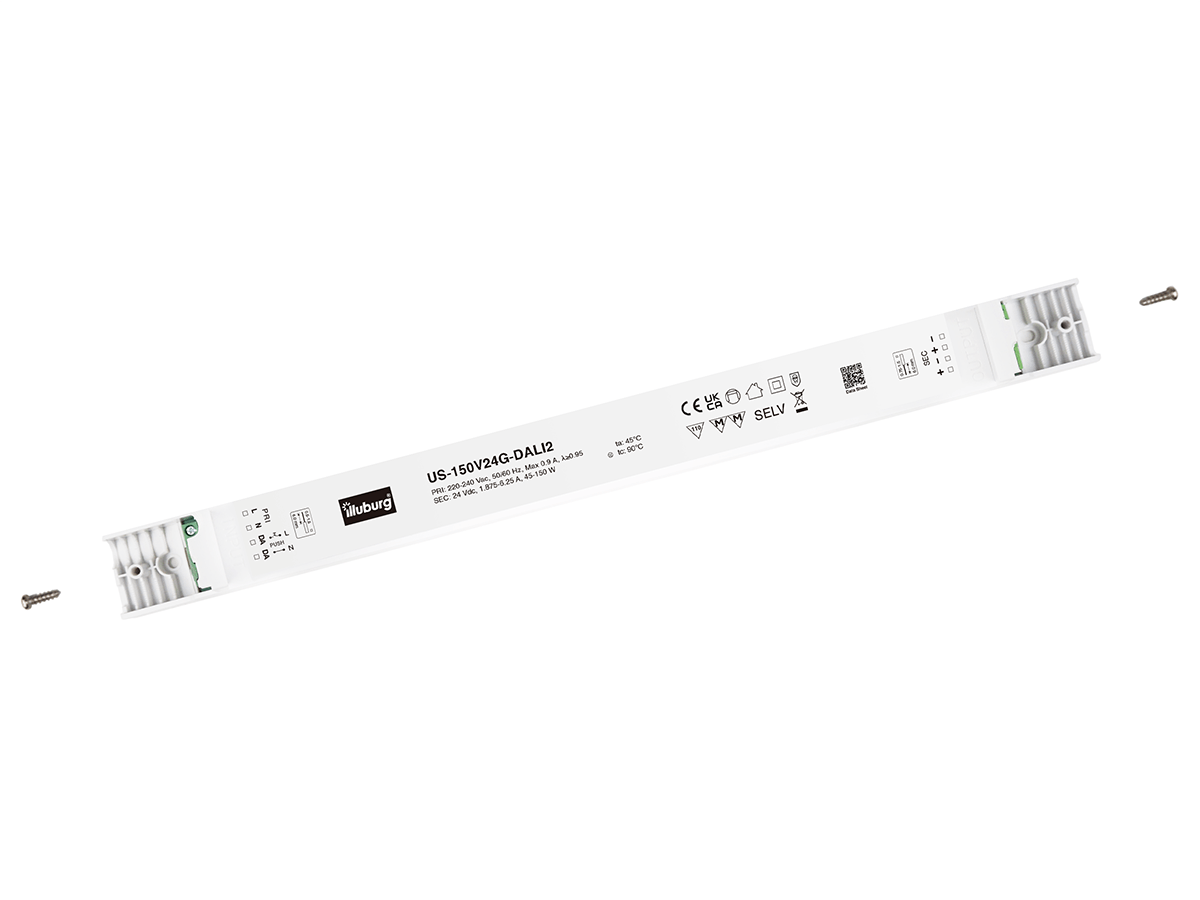

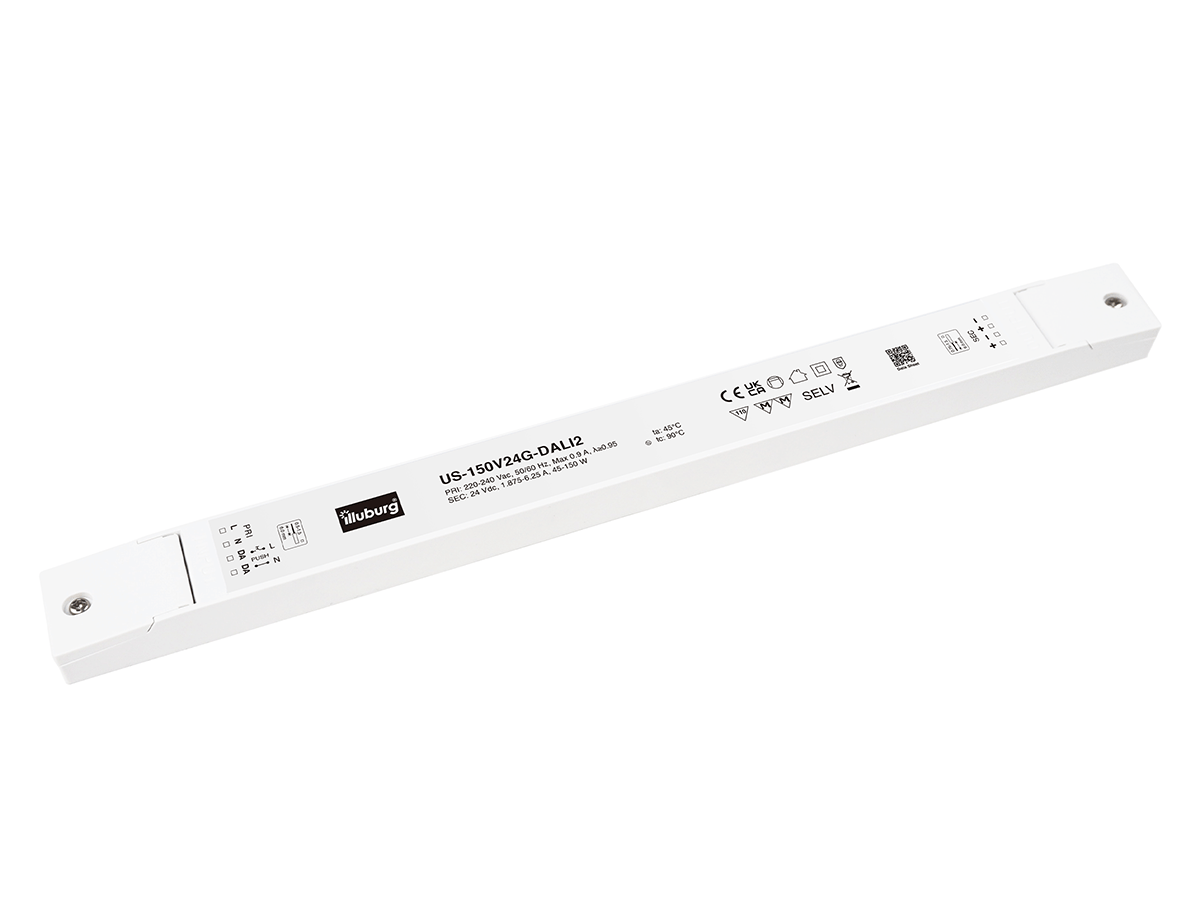

US-150V24G-DALI2
LED power supply for 24 Vdc constant voltage
1.875…6.25 A (45…150 W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 |
| Input Current | 0.9 A max. |
| Inrush Current | 60 A max. |
| Output Voltage | 24 Vdc |
| Output Current | 1.875…6.25 A |
| Output Power (nominal) | 45…150 W |
| Efficiency | ≥ 92 % |
| Life Time | > 55,000 h Full Load, 230Vac |
| Dimming mode | DALI-2, PUSH (pri.) |
Operating Condition
| Operating temperature range (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overcurrent Protection | Yes * 120 % – 180 % |
| Overvoltage Protection | Yes * 110 % – 150 % |
| Overheating Protection | Yes * 90 < Tc < 110℃ |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 62493 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| DALI Normen (DT-6) | IEC 62386-101, IEC 62386-102, IEC 62386-207 |
| Prüfzeichen | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-Section, input side | 0.5…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 6 mm |
| Cable Preparation Length, output side | 6 mm |
Dimension
Connection
