Menge | Preis |
1 - 4 | 34,66€ |
5 - 9 | 33,99€ |
10 - 19 | 33,39€ |
20 + | 32,79€ |
Price on request for order quantity from 20 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
34,66€
Out of stock
Menge | Preis |
1 - 4 | 34,66€ |
5 - 9 | 33,99€ |
10 - 19 | 33,39€ |
20 + | 32,79€ |
Price on request for order quantity from 20 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
Out of stock

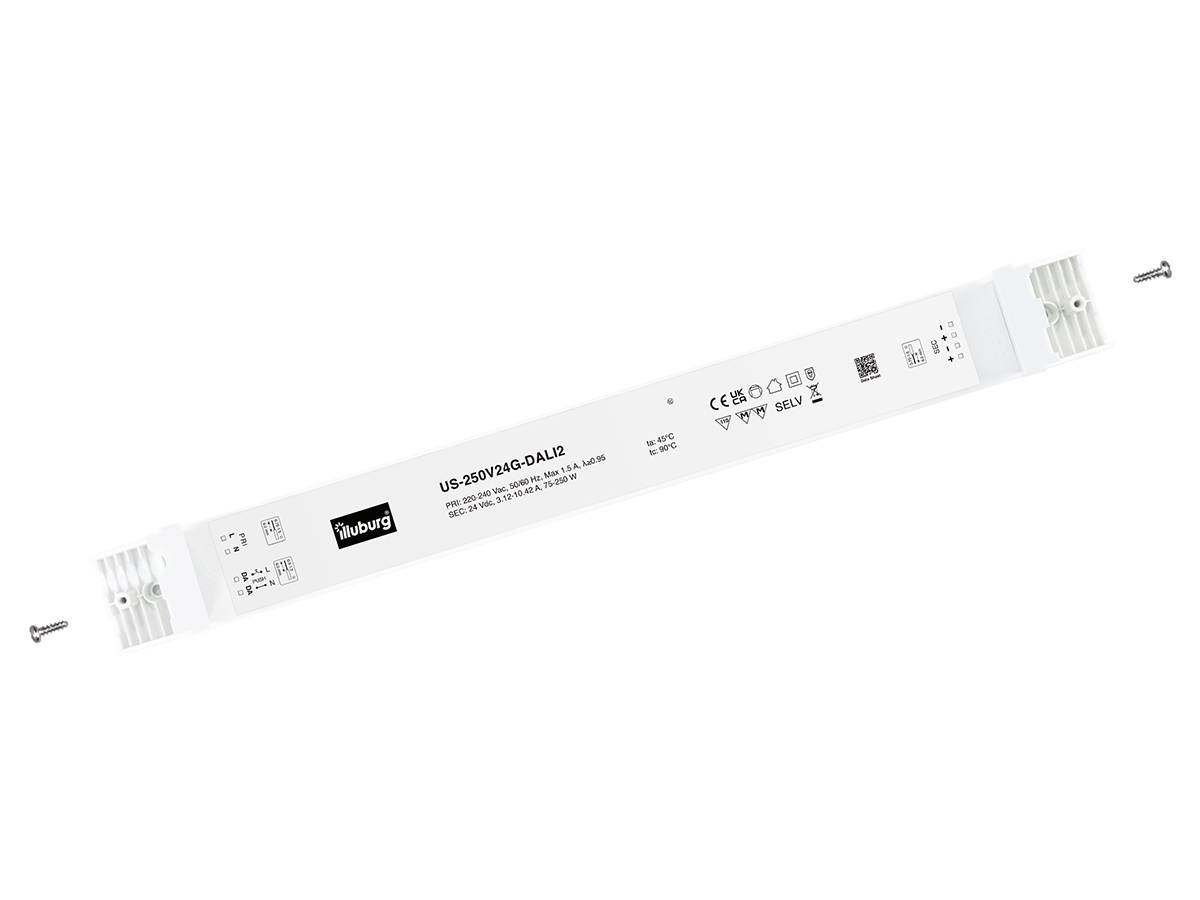

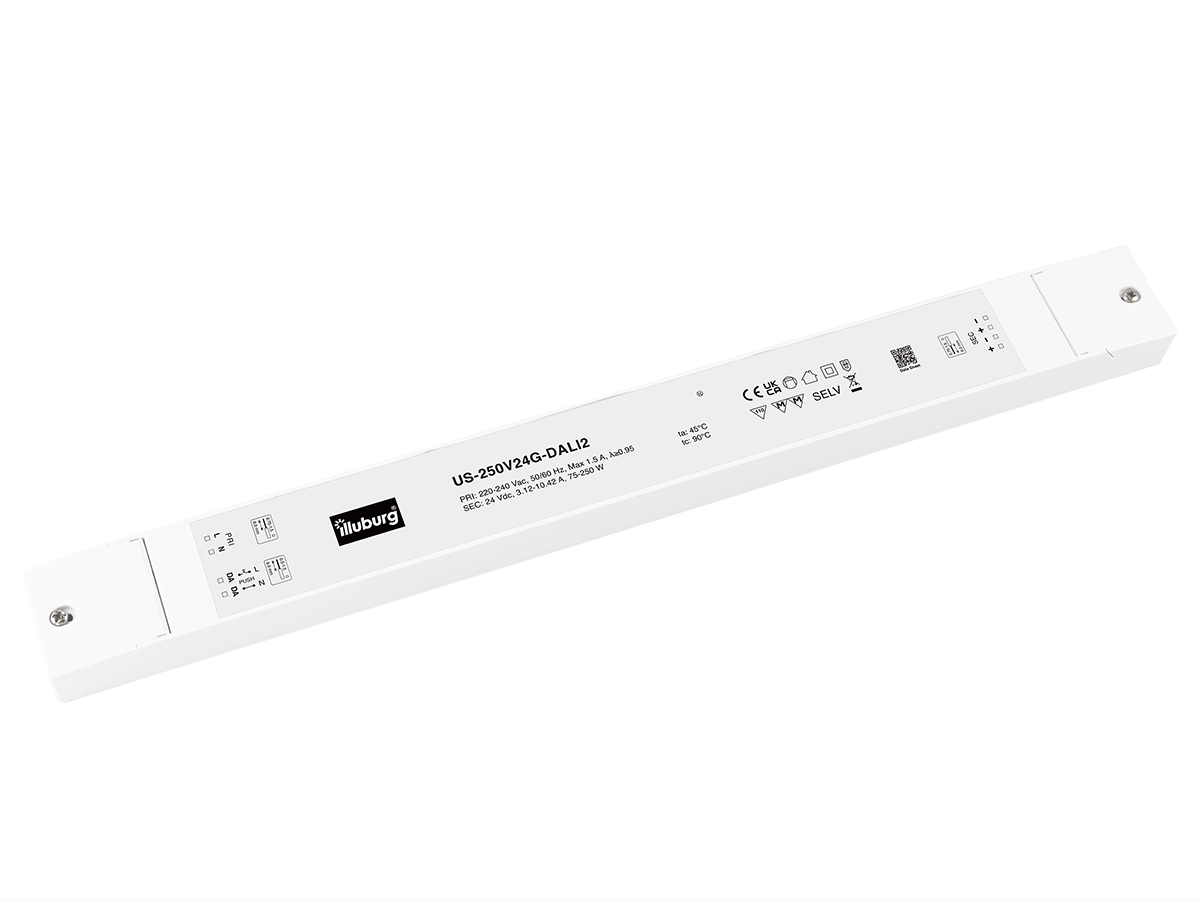

US-250V24G-DALI2
LED power supply for 24 Vdc constant voltage
3.12…10.42 A (75…250 W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.95 |
Input Current | 1.5 A max. |
Inrush Current | 80 A max. |
Output Voltage | 24 Vdc |
Output Current | 3.12…10.42 A |
Output Power (nominal) | 75…250 W |
Efficiency | ≥ 92 % |
Life Time | > 52,000 h Full Load, 230Vac |
Dimming mode | DALI-2, PUSH (pri.) |
Operating Condition
Operating temperature range (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 90 °C |
Permitted rel. Humidity | 5…85 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overcurrent Protection | Yes * 120 % – 180 % |
Overvoltage Protection | Yes * 110 % – 150 % |
Overheating Protection | Yes * 90 < Tc < 110 ℃ |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 62493 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
DALI Normen (DT-6) | IEC 62386-101, IEC 62386-102, IEC 62386-207 |
Prüfzeichen | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Screw terminal |
Cable Cross-Section, input side | 0.5…1.5 mm² |
Cable Cross-Section, output side | 0.75…1.5 mm² |
Cable Preparation Length, input side | 6 mm |
Cable Preparation Length, output side | 6 mm |
Dimension
Connection
