Menge | Preis |
1 - 4 | 17,85€ |
5 - 9 | 17,49€ |
10 - 19 | 17,19€ |
20 + | 16,89€ |
Price on request for order quantity from 20 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
17,85€
In stock
Menge | Preis |
1 - 4 | 17,85€ |
5 - 9 | 17,49€ |
10 - 19 | 17,19€ |
20 + | 16,89€ |
Price on request for order quantity from 20 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock

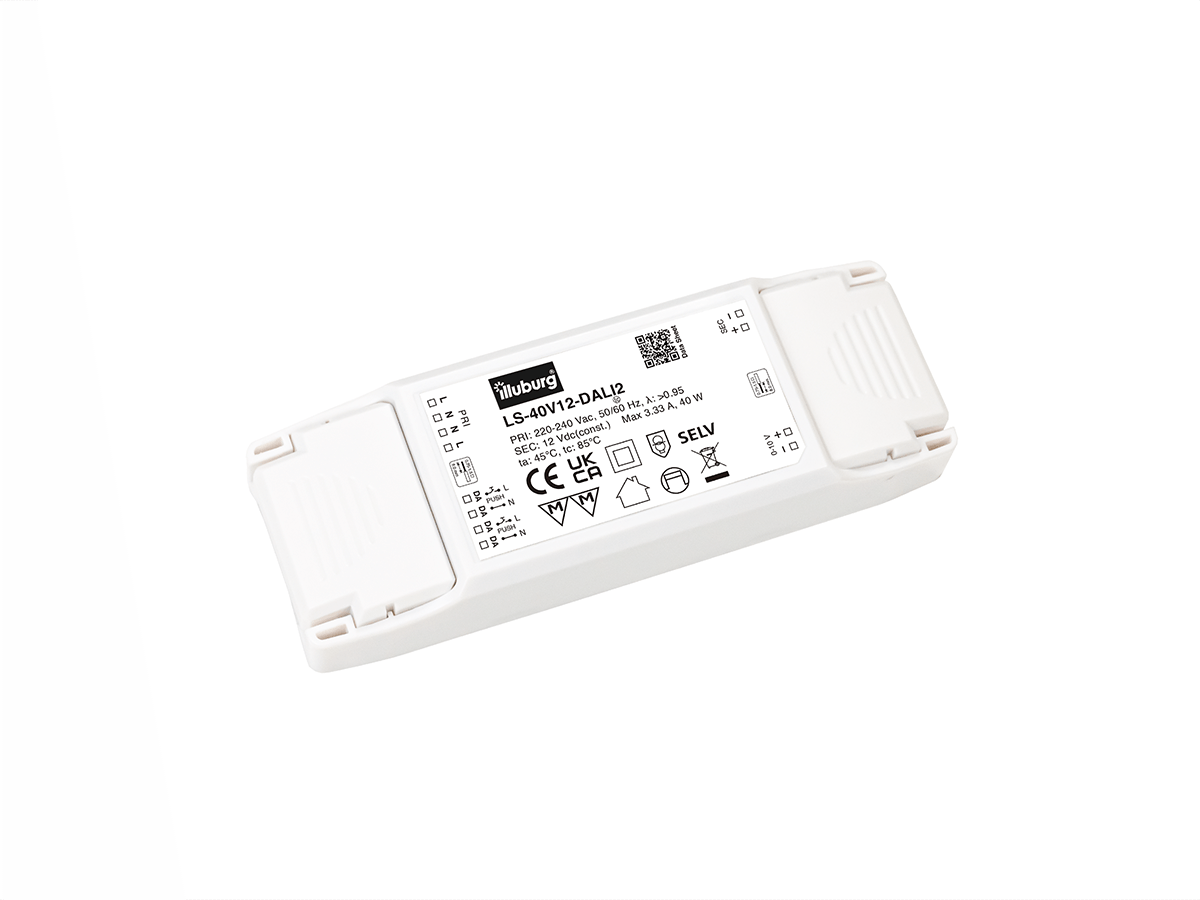

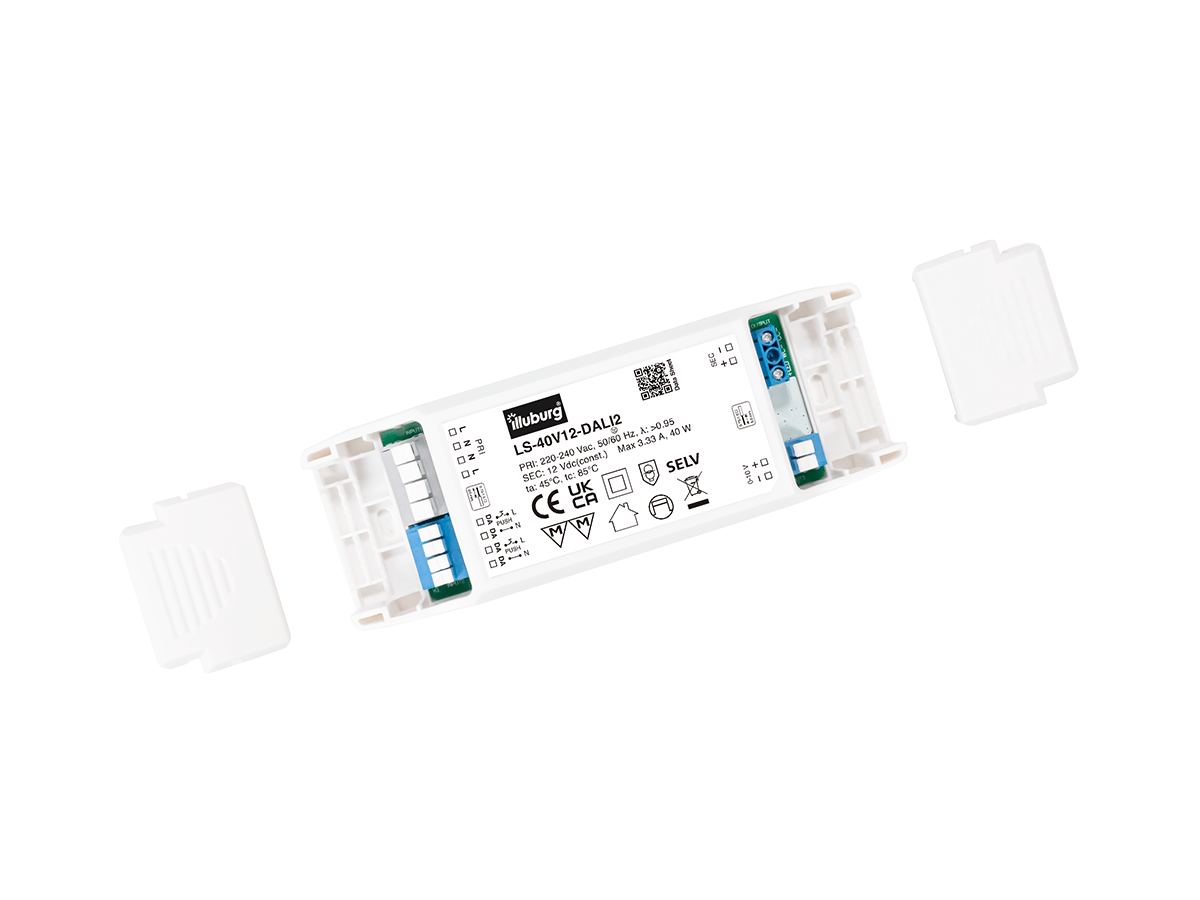

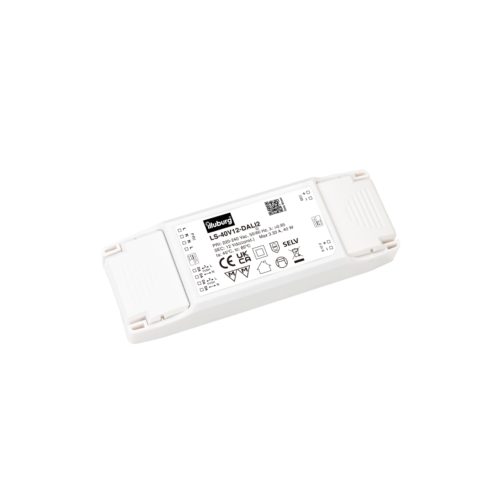

LS-40V12-DALI2
LED power supply for 12 Vdc constant voltage
3.33 A (40W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.), 0-10V (sec.), PWM
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.95 Full Load, 230 Vac |
Input Current | 0.21 A max. |
Inrush Current | 15 A max. |
Output Voltage | 12 Vdc |
Output Current | 0.33…3.33 A |
Output Power (nominal) | 4…40 W |
Efficiency | ≥ 87 % Full Load, 230 Vac |
Life Time | 5 years |
Dimming mode | DALI, PUSH (pri.), 0-10V (sec.), PWM |
Operating Condition
Operating temperature range (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. Humidity | 10…95 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Dali Standard (DT-6) | IEC 62386-102, IEC 62386-207 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Spring-loaded terminal |
Cable Cross-Section, input side | 0.75…1.5 mm² |
Cable Cross-Section, output side | 0.75…1.5 mm² |
Cable Preparation Length, input side | 8 mm |
Cable Preparation Length, output side | 8 mm |
Dimension
Connection
