SS7-20V24 (24V 20W)

6,93

In stock

MengePreis
1 - 46,93
5 - 96,79
10 - 196,69
20 +6,59



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

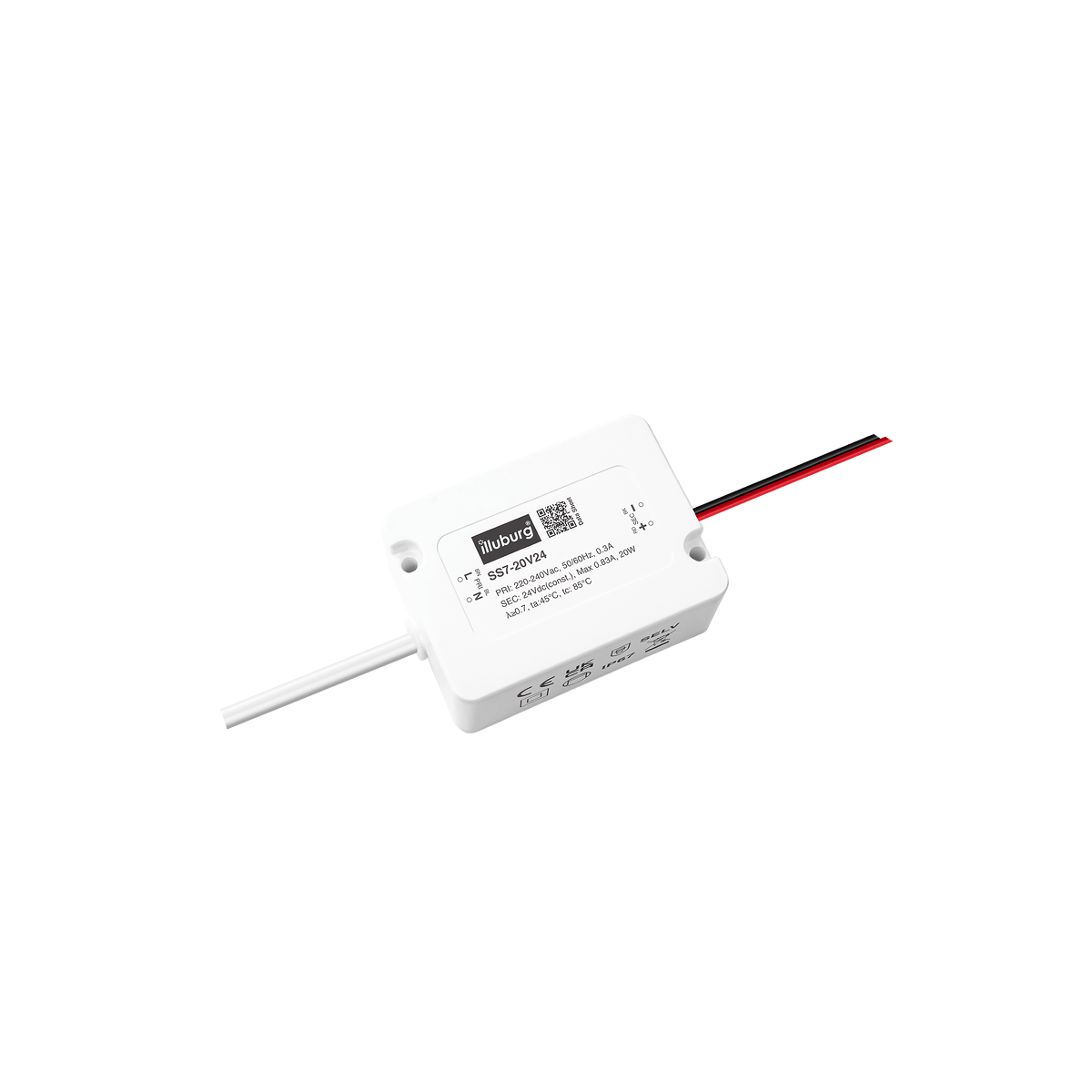

SS7-20V24

LED power supply for 24 Vdc constant voltage
0.83 A (20 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789

Electrical Data

Input Voltage (range)198…264 Vac
Rated input voltage (AC)220…240 Vdc
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.7  Full Load, 220…240 Vac
Input Current0.3 A max.  Full Load, 220…240 Vac
No-Load Loss≤ 0.5 W
Inrush Current30 A max.
Output Voltage24 Vdc
Output Current0…0.83 A
Output Power (nominal)20 W max.
Efficiency≥ 79 %  Full Load, 230 Vac
Life Time> 30,000 h
DimmableNo



Operating Condition

Operating Ambient Temperature (ta)-20…+45 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. humidity during operation20…90%
Protection ClassClass II
Type of ProtectionIP67



Protection

Short Circuit ProtectionYes *
Overvoltage ProtectionYes *
Overload ProtectionYes *


(*) The output turns off and can be restored after correcting the problem and restarting the power supply.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 55015, EN61547, EN 62493
EN 61000-3-2, EN 61000-3-3
Approval MarksCE,UKCA
RoHS CompliantYes



Installation

Type of installationBuilt in installation
Cable length, input side190 ± 10 mm
Cable length, output side190 ± 10 mm
Cable cross-section, input side2 x 0.5 mm²
Cable cross-section, output side2 x 22 AWG
Cable Preparation Length, input side3 mm tinned
Cable Preparation Length, output side3 mm tinned



Dimension



Connection
