24Vdc constant, 300W, IP67, 242x67x23mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 29,69€ |
| 5 - 9 | 29,19€ |
| 10 - 19 | 28,69€ |
| 20 + | 28,19€ |
FM7-300V24
29,69€
In stock
In stock
Description

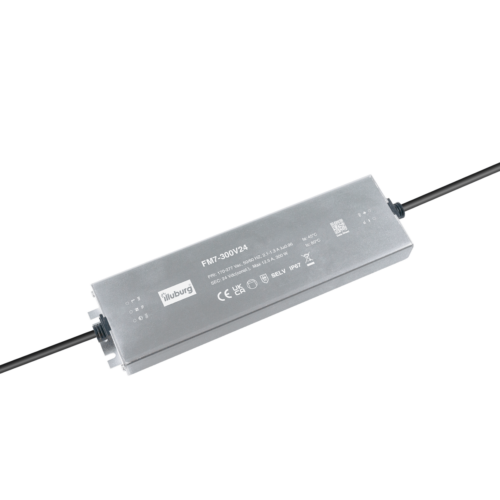

FM7-300V24
LED power supply for 24 Vdc constant voltage
12.5 A (300 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 170…277 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.96 Full Load, 230 Vac |
| Input Current | 1.3…2.1 A |
| No-Load Loss | ≤ 0.5 W |
| Inrush Current | ≤ 65 A |
| Leakage Current | ≤ 0.5 mA |
| Output Voltage | 24 Vdc |
| Output Current | 12.5 A max. |
| Output Power (nominal) | 300 W max. |
| Efficiency | ≥ 93.5 % |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -30…+45 °C |
| Max. Surface Temperature (tc) | 80 °C |
| Protection Class | Class II |
| Type of Protection | IP67 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 110…150 % |
| Overvoltage Protection | Yes * 110…150 % |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable Length, input side | 250 mm |
| Cable Length, output side | 250 mm |
| Cable Cross-Section, input side | 3 x 1.0 mm² |
| Cable Cross-Section, output side | 2 x 1.5 mm² |
| Cable Preparation Length, input side | 8 mm tinned |
| Cable Preparation Length, output side | 8 mm tinned |
Dimension
Connection
