LS-60V24 (24V 60W)

In stock

Menge Preis
1 - 4 11,79
5 - 9 11,49
10 - 19 11,09
20 + 10,79

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LED Trafo 24V 60W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

LS-60V24

LED power supply for 24 Vdc constant voltage
2.5 A (60 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789

Electrical Data

Input voltage (nominal) 220…240 Vac
Input voltage (range) 176…264 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) >0.9   220…240 Vac
Input Current 0.47 A max.   Full Load, 176 Vac
No-load loss ≤0.5 W
Inrush Current 45 A max.
Leakage Current < 0.5 mA   240 Vac
Output Voltage 24 Vdc
Output Current 0…2.5 A
Output Power (nominal) 60 W max.
Efficiency ≥ 87 %
Life Time > 30,000 h    45 °C
Dimmable No



Operating Condition

LED Trafo 24V 60W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

Operating Ambient Temperature (ta) -10…+45 °C
Max. Surface Temperature (tc) 85 °C
Permitted rel. Humidity 20…90 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overload Protection Yes *   105…150 %
Overvoltage protection Yes *   >25.2 Vdc
Overheating protection Yes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
EN 62493
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval Marks CE
RoHS Compliant Yes



Installation

LED Trafo 24V 60W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

Type of Installation Independent installation
Type of Connection Spring-loaded terminal &emsp
Cable Cross-section, input side 0.5…1.5 mm²
Cable Cross-section, output side 0.5…1.5 mm²
Cable Preparation length, input side 7.0…9.0 mm
Cable Preparation length, output side 7.0…9.0 mm



Dimension



Connection

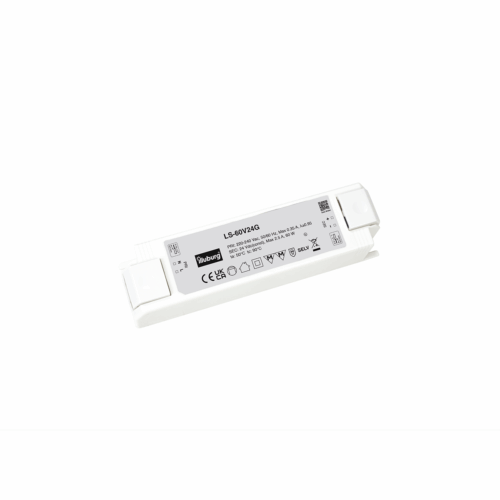

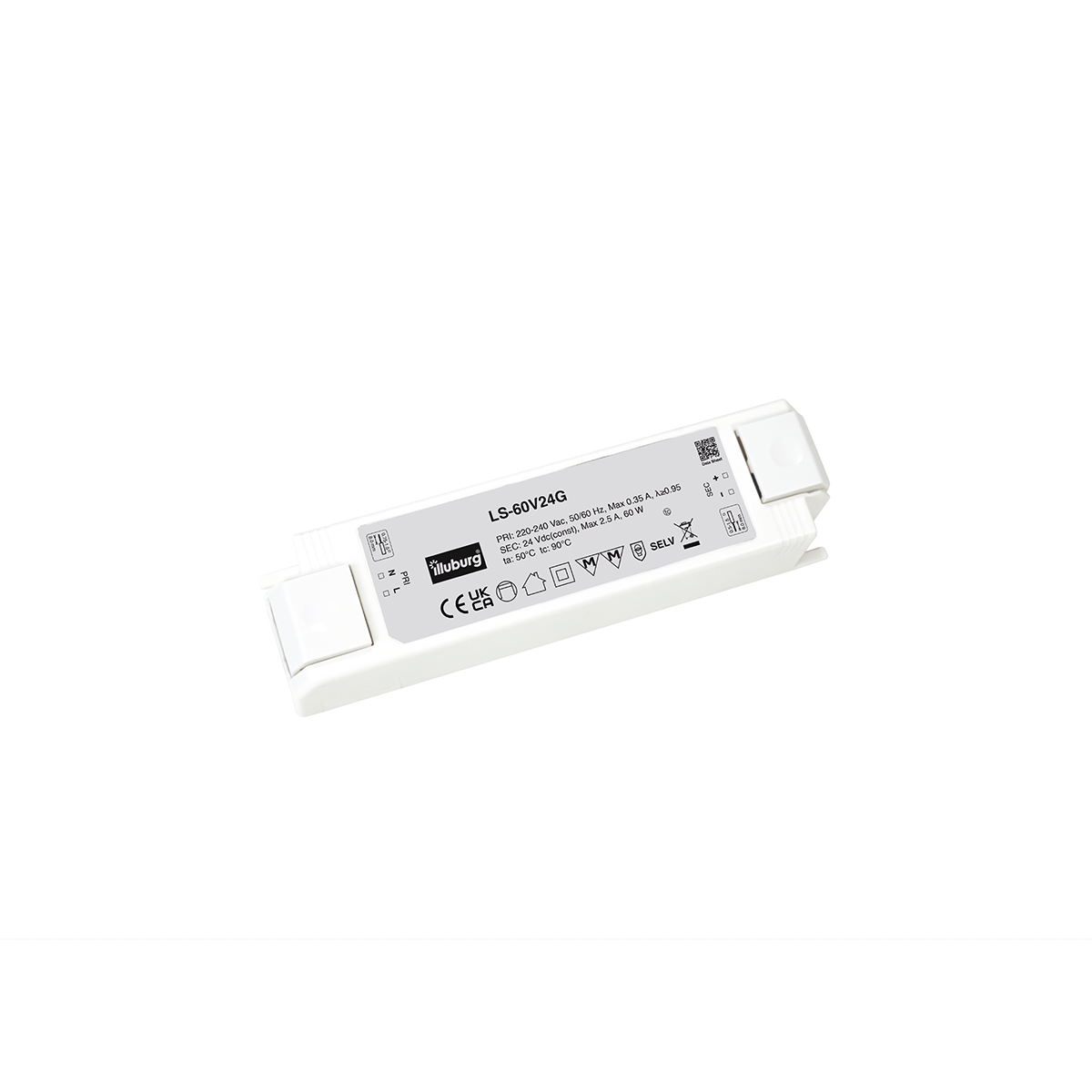

LED power supply LS-60V24: LED transformer constant voltage, input 220 – 240 V (AC), output 24 V (DC), not dimmable, flicker-free, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 60 W, parallel connection possible. Our products can be used with full load.
Flicker-free: flicker-free light source provides better eye protection and guarantees high-quality video recording.

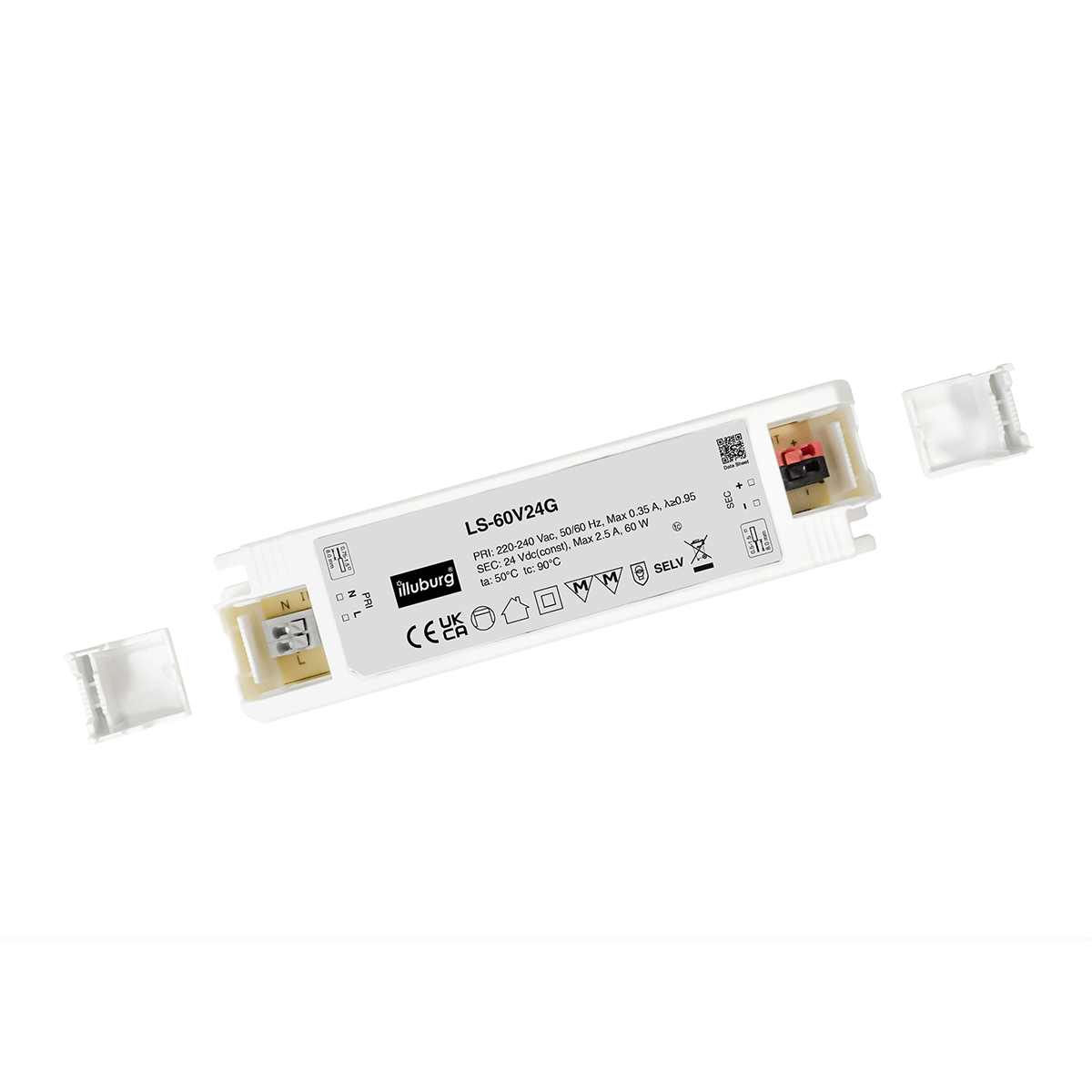

Assembly: dimensions 187 x 45 x 31 mm (L x W x H), ambient temperature (ta) -10 – +45 °C. Connection by spring loaded clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device overload protection, surge protection, short circuit protection and overtemperature protection.
Quality: CE, furniture approval; Service life > 30.000 hours; Surface temperature (tc) 85°C.
huatec led transformer power supply driver transformator 24v 24 volt dc constant voltage same voltage flicker-free 60w 60 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 24V 60W constant voltage.

For business customer, who wants to order our porducts in large quantities or learn more about our new products, please contact us and download our product catalog.
