| Menge | Preis |
| 1 - 4 | 11,97€ |
| 5 - 9 | 11,59€ |
| 10 - 19 | 11,29€ |
| 20 + | 10,99€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
UF-60V24 (24V 60W)
11,97€
Only 4 left in stock
Only 4 left in stock
Description
LED Trafo 24V 60W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
UF-60V24
LED power supply for 24 Vdc constant voltage
2.5 A (60 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.9 Full Load |
| Input Current | 0.7 A max. Full Load |
| No-load loss | ≤ 0.5 W |
| Output Voltage | 24 Vdc |
| Output Current | 0…2.5 A |
| Output Power (nominal) | 60 W max. |
| Efficiency | ≥ 87 % |
| Life Time | 30,000 h |
| Dimmable | No |
Operating Condition
LED Trafo 24V 60W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
LED Trafo 24V 60W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-section, input side | 0.5…1.5 mm² |
| Cable Cross-section, output side | 0.5…1.5 mm² |
| Cable Preparation length, input side | 7.0…9.0 mm |
| Cable Preparation length, output side | 7.0…9.0 mm |

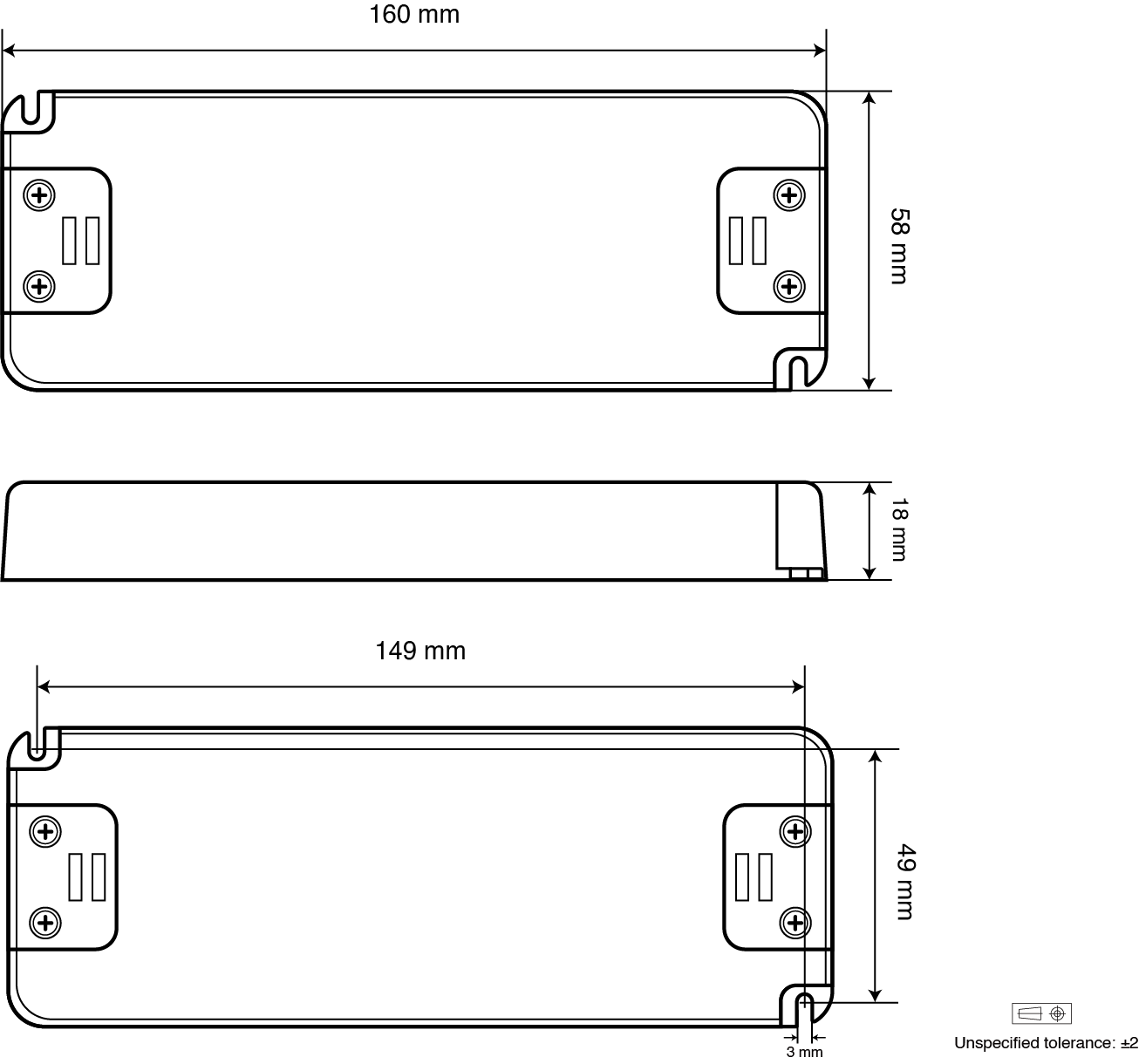

Dimension
Connection
LED power supply UF-20V12: LED transformer constant voltage, input 220 – 240 V (AC), output 12 V (DC), non-dimmable, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 20 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 103 x 36 x 16 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device equipped with overload protection, short circuit protection and overheating protection.
Quality: CE, UKCA, MM approval; Service life > 30.000 hours; Surface temperature (tc) 85°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage super slim 15w 20w 15 20 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 20W constant voltage slim.
