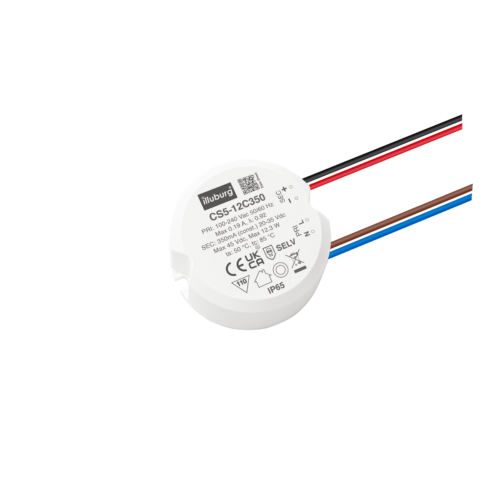

LED Trafo 350mA 12W constant current for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
CS5-12C350
LED power supply for 350 mA constant current
20…35 Vdc, 7…12.3 W, IP65, built-in installation, non-dimmable
Electrical Data
Input Voltage (nominal) | 100…240 Vac |
Input Voltage (range) | 90…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.92C Full Load, 100…240 Vac |
Input Current | 0.19 A max. Full Load, 90 Vac |
Inrush Current | 30 A max. |
Output Voltage | 20…35 Vdc |
Output Current | 350 mA |
Output Power (nominal) | 7…12.3 W |
Efficiency | ≥ 81 % |
Life Time | > 50,000 h |
Dimmable | No |
Operating Condition
Operating Ambient Temperature (ta) | -20…+50 °C |
Max. Surface Temperature (tc) | 80 °C |
Permitted rel. Humidity | 20…90 % |
Protection Class | II |
Type of Protection | IP65 |
LED Trafo 350mA 12W constant current for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * 103…120 % |
Overvoltage Protection | Yes * > 45 Vdc |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Cable Length, input side | 100 ± 5 mm |
Cable Length, output side | 130 ± 5 mm |
Cable Cross-Section, input side | 2 x 20 AWG |
Cable Cross-Section, output side | 2 x 20 AWG |
Cable Preparation Length, input side | 3 mm tinned |
Cable Preparation Length, output side | 3 mm tinned |
LED Trafo 350mA 12W constant current for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Dimension
Connection
