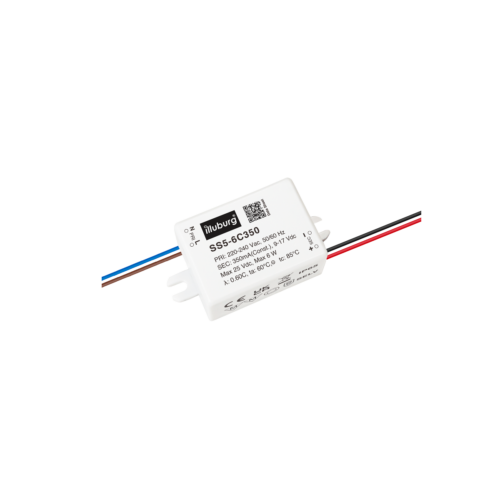

SS5-6C350 (350mA 6W)

6,08

In stock

(0 customer reviews)
MengePreis
1 - 46,08
5 - 95,99
10 - 195,89
20 +5,79



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LED Trafo 350mA 6W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

SS5-6C350

LED power supply for 350 mA constant current
9…17 Vdc, 3.15…5.95 W, IP65, built-in installation, non-dimmable
Flicker-free according to IEEE 1789

Electrical Data

Input Voltage (nominal)220…240 Vac
Input Voltage198…264 Vac
Input Voltage (DC)176…370 Vdc
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.60C   Full load
Input Current0.08 A max.
Inrush Current10 A max.   th = 100 μs, cold start
No-load Loss≤ 0.5 W
Output Voltage9…17 Vdc
Output Current350 mA
Output Power (nominal)3.15…5.95 W
Efficiency≥ 74 %
Life Time> 50,000 h
DimmableNo



Operating Condition

Operating Ambient Temperature (ta)-20…+60 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. Humidity5…85 %
Protection ClassII
Type of ProtectionIP65



LED Trafo 350mA 12W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *
Overvoltage ProtectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 60598-1, EN 62384
EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

Cable Length, input side180 ± 5 mm
Cable Length, output side180 ± 5 mm
Cable Cross-Section, input side2 x 0.5 mm²
Cable Cross-Section, output side2 x 22 AWG
Cable Preparation Length, input side10 mm tinned
Cable Preparation Length, output side10 mm tinned



Dimension



Connection
