350mA, 15W, Triac dimmable, IP20, 56x25mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 11,69€ |
| 5 - 9 | 11,49€ |
| 10 - 49 | 11,19€ |
| 50 + | 10,99€ |
CS5-15C350-D3
11,69€
Out of stock
Out of stock
Description

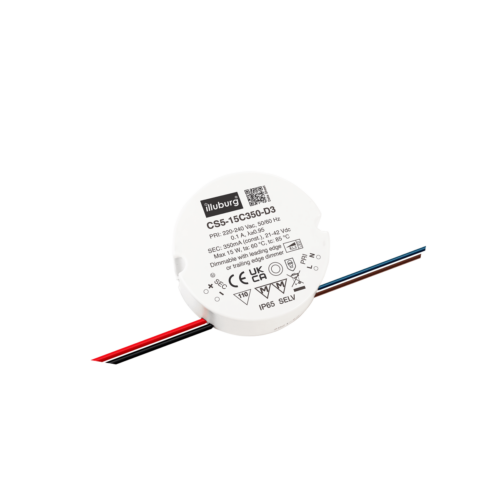

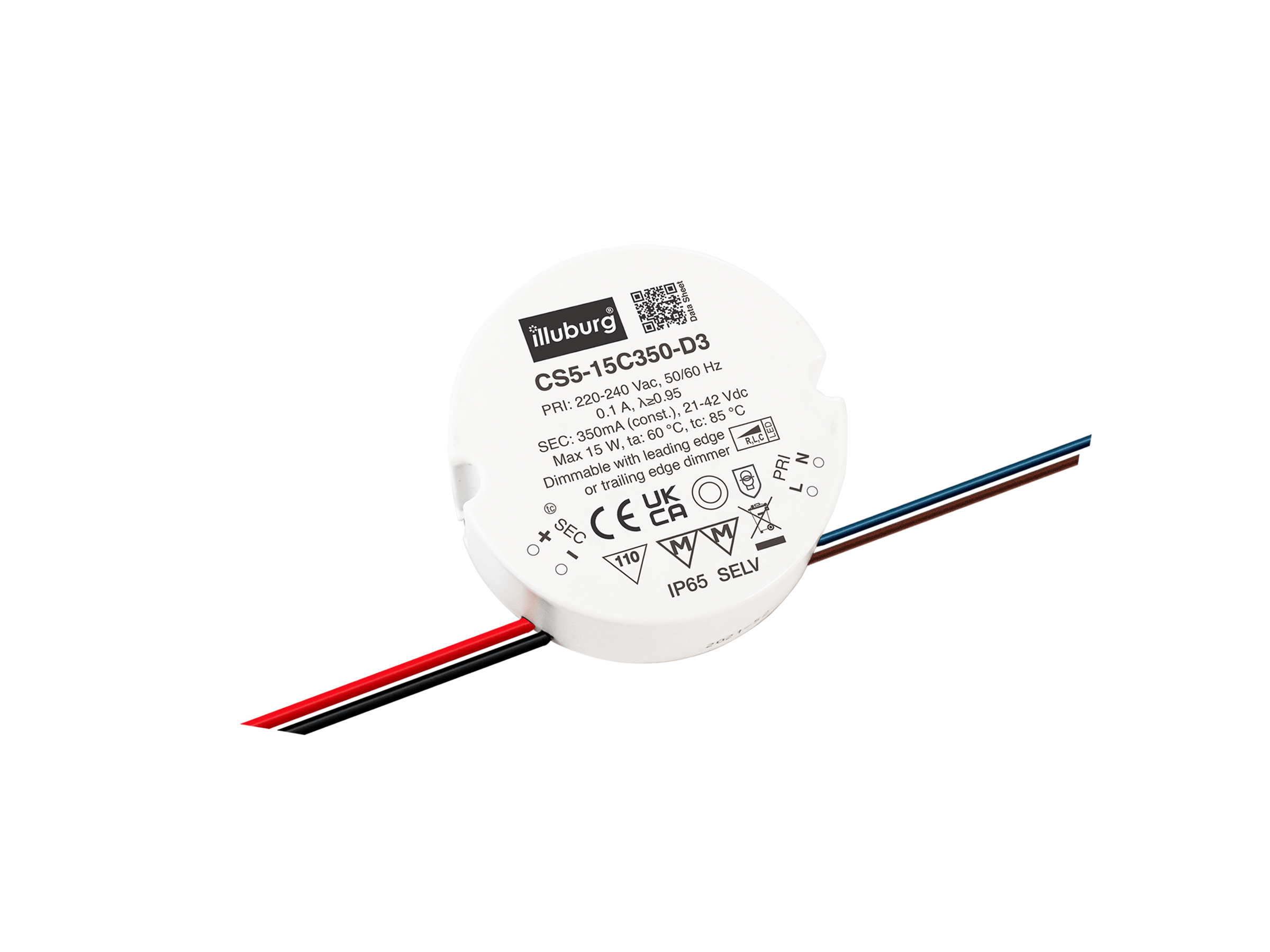

CS5-15C350-D3
LED power supply for 350 mA constant current
21…42 Vdc, 7.5…15 W, IP65, independent installation
TRIAC (leading & trailing edge) dimmable
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full load |
| Input Current | 0.1 A max. |
| Inrush Current | 5 A max. |
| Output Voltage | 21…42 Vdc |
| Output Current | 350 mA |
| Output Power (nominal) | 7.5…15 W |
| Efficiency | ≥ 82 % Full load |
| Life Time | > 50,000 h |
| Dimming Mode | TRIAC (leading & trailing edge) |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+60 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overvoltage Protection | Yes * > 49 Vdc |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable length, input side | 170 ± 5 mm |
| Cable length, output side | 170 ± 5 mm |
| Cable Cross-Section, input side | 2 x 20 AWG |
| Cable Cross-Section, output side | 2 x 22 AWG |
| Cable Preparation Length, input side | 5 mm |
| Cable Preparation Length, output side | 5 mm |

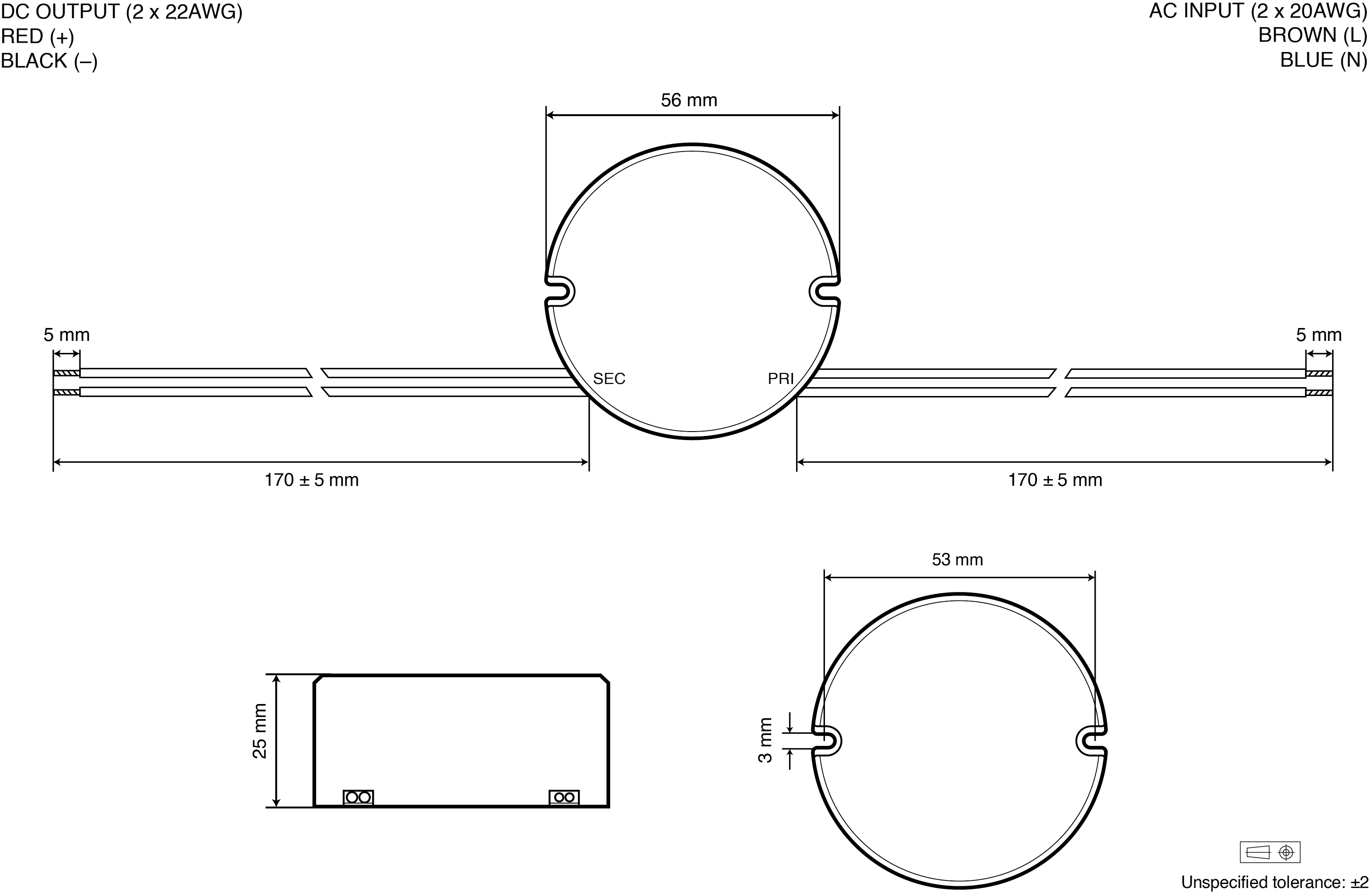

Dimension
Connection
