Menge | Preis |
1 - 4 | 7,77€ |
5 - 9 | 7,69€ |
10 - 19 | 7,59€ |
20 + | 7,49€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
7,77€
In stock
Menge | Preis |
1 - 4 | 7,77€ |
5 - 9 | 7,69€ |
10 - 19 | 7,59€ |
20 + | 7,49€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock

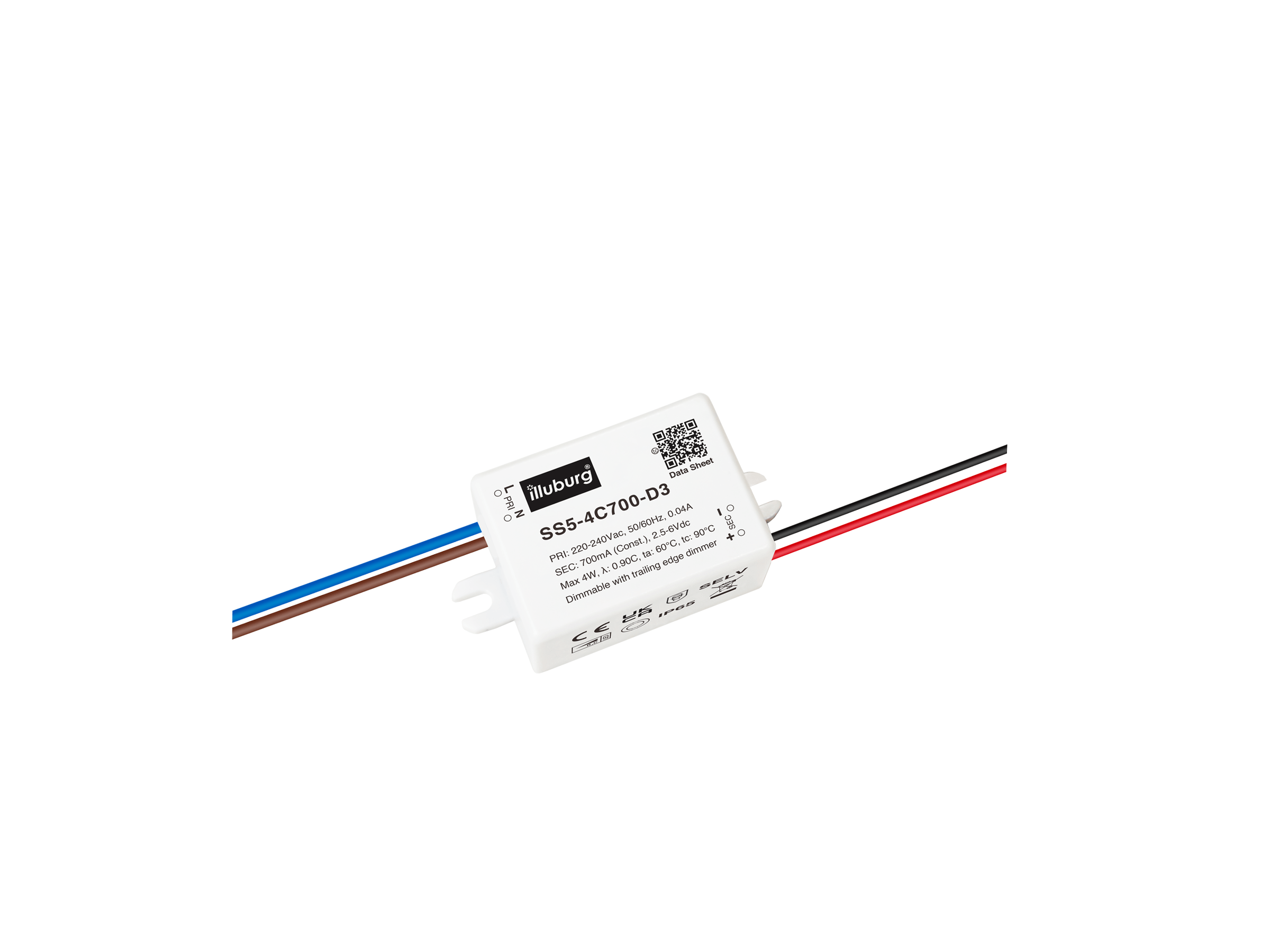

SS5-4C700-D3
LED power supply for 700 mA constant current
2.5…6 Vdc, 2…4 W, IP65, independent installation
Trailing edge (TRIAC) dimmable
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.90C Full load |
Input Current | 0.04 A max. |
Inrush Current | 5 A max. |
Output Voltage | 2.5…6 Vdc |
Output Current | 700 mA |
Output Power (nominal) | 2…4 W |
Efficiency | ≥ 63 % Full load |
Life Time | > 50,000 h |
Dimming Mode | TRIAC (trailing edge) |
Operating Condition
Operating Ambient Temperature (ta) | -20…+60 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. Humidity | 5…85 % |
Protection Class | II |
Type of Protection | IP65 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overvoltage Protection | Yes * > 14 Vdc |
No-load Protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Cable length, input side | 180 ± 5 mm |
Cable length, output side | 180 ± 5 mm |
Cable Cross-Section, input side | 2 x 20 AWG |
Cable Cross-Section, output side | 2 x 22 AWG |
Cable Preparation Length, input side | 5 mm |
Cable Preparation Length, output side | 5 mm |
Dimension
Connection
