| Menge | Preis |
| 1 - 4 | 8,61€ |
| 5 - 9 | 8,49€ |
| 10 - 19 | 8,39€ |
| 20 + | 8,29€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
SS5-10C500-D3 (500mA 10W)
8,61€
In stock
In stock
Description
SS5-10C500-D3
LED power supply for 500 mA constant current
10…20 Vdc, 5…10 W, IP65, independent installation
Trailing edge (TRIAC) dimmable
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | 0.90 C Full Load |
| Input Current | 0.08 A |
| Inrush Current | 5 A (th = 100μs) Cold start |
| Output Voltage | 10…20 Vdc |
| Output Current | 500 mA |
| Output Power (nominal) | 5…10 W |
| Efficiency | 76 % Full Load |
| Life Time | 50,000 h |
| Dimming Mode | TRIAC (trailing edge) |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+60 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP65 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overvoltage protection | Yes * Input: 264 Vac max. Output: ≤ 48 V |
| No load protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62384, EN 60598-1, EN 57710 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable length, input side | 170(±5) mm |
| Cable length, output side | 170(±5) mm |
| Cable Cross-Section, input side | 2x 20AWG |
| Cable Cross-Section, output side | 2x 22AWG |
| Cable Preparation Length, input side | 5.0 mm |
| Cable Preparation Length, output side | 5.0 mm |
Dimension

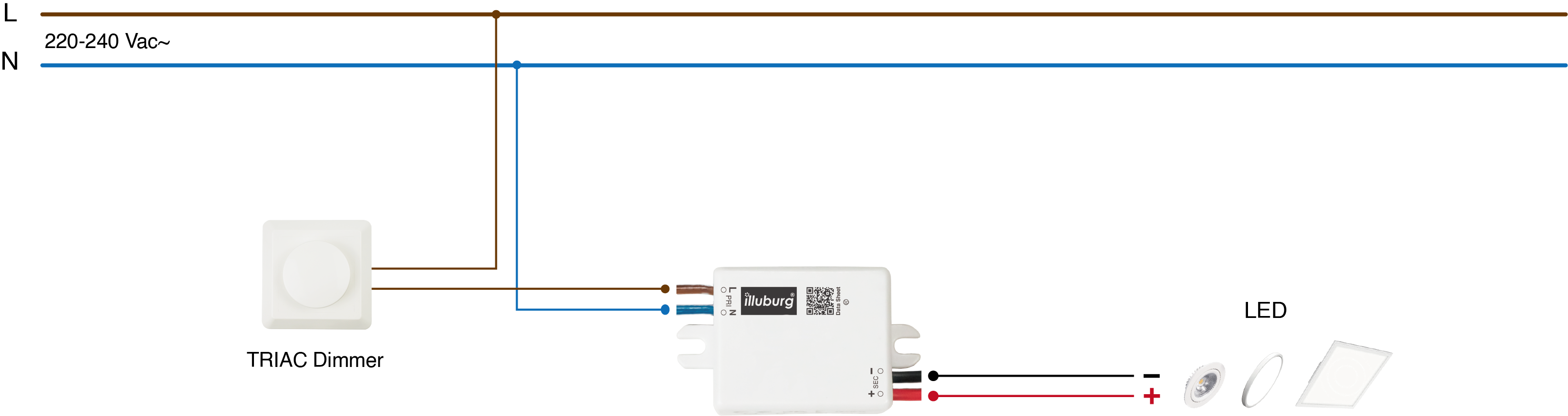

Connection
