| Menge | Preis |
| 1 - 4 | 8,61€ |
| 5 - 9 | 8,49€ |
| 10 - 19 | 8,39€ |
| 20 + | 8,29€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
CS5-18C700 (700mA 18W)
8,61€
In stock
In stock
Description
LED Trafo 700mA 18W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

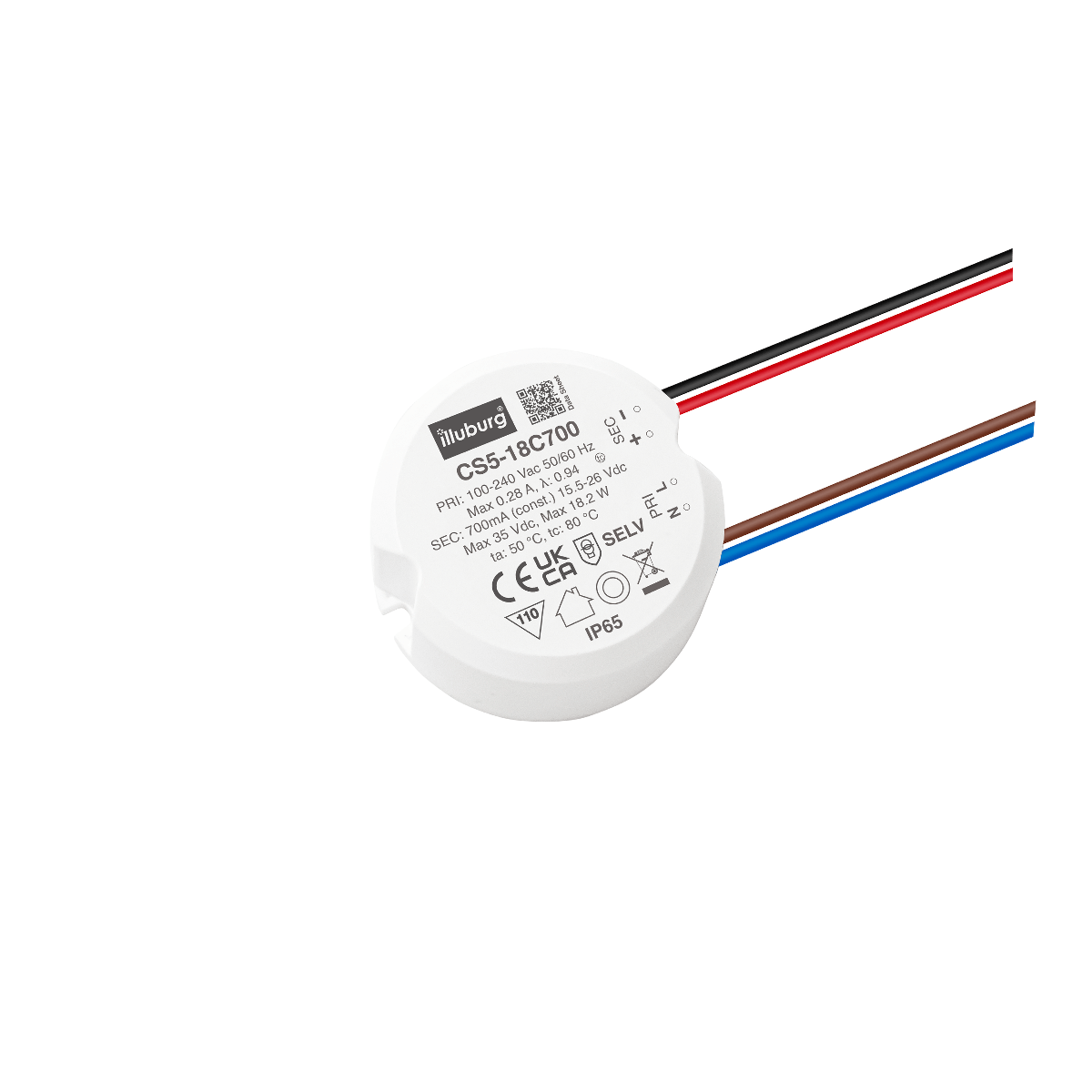

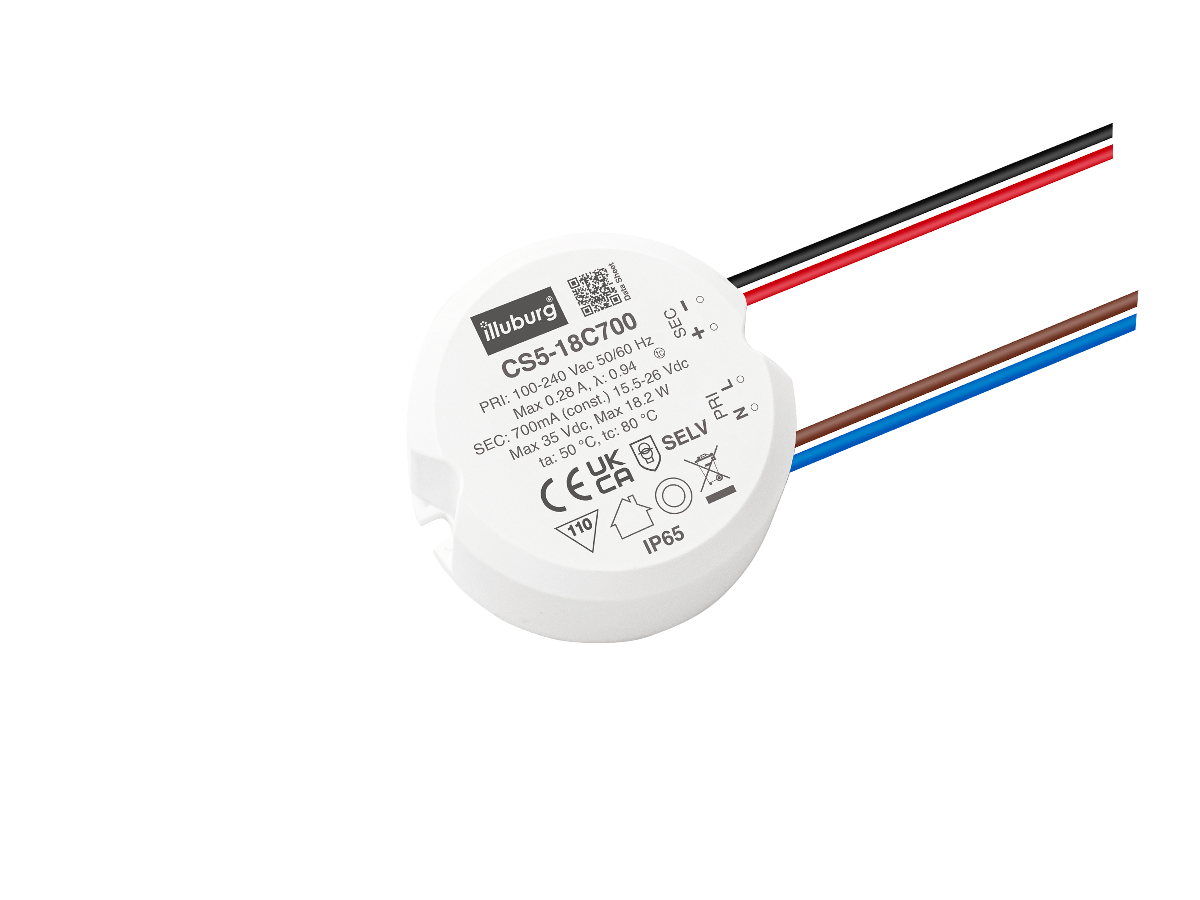

CS5-18C700
LED power supply for 700 mA constant current
15.5…26 Vdc, 10.9…18.2 W, IP65, built-in installation, non-dimmable
Electrical Data
| Input Voltage (nominal) | 100…240 Vac |
| Input Voltage (range) | 90…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.94C Full Load, 100…240 Vac |
| Input Current | 0.28 A max. Full Load, 90 Vac |
| Inrush Current | 30 A max. |
| Output Voltage | 15.5…26 Vdc |
| Output Current | 700 mA |
| Output Power (nominal) | 10.9…18.2 W |
| Efficiency | ≥ 86 % |
| Life Time | > 50,000 h |
| Dimmable | No |
LED Trafo 700mA 18W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Operating Condition
| Operating Ambient Temperature (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 80 °C |
| Permitted rel. Humidity | 20…90 % |
| Protection Class | II |
| Type of Protection | IP65 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 103…120 % |
| Overvoltage Protection | Yes * > 35 Vdc |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
LED Trafo 700mA 18W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Installation
| Cable Length, input side | 100 ± 5 mm |
| Cable Length, output side | 130 ± 5 mm |
| Cable Cross-Section, input side | 2 x 20 AWG |
| Cable Cross-Section, output side | 2 x 20 AWG |
| Cable Preparation Length, input side | 3 mm tinned |
| Cable Preparation Length, output side | 3 mm tinned |
Dimension
Connection
