700mA constant, 15…25W, IP65, 65x28mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 11,99€ |
| 5 - 9 | 11,69€ |
| 10 - 19 | 11,49€ |
| 20 + | 11,19€ |
CS5-25C700
11,99€
In stock
In stock
Description
CS5-25C700
LED power supply for 700 mA constant current
21.5…36 Vdc, 15…25 W, IP65, built-in installation, non-dimmable
Electrical Data
| Input Voltage (nominal) | 100…240 Vac |
| Input Voltage (range) | 90…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95C Full Load, 100…240 Vac |
| Input Current | 0.38 A max. Full Load, 90 Vac |
| Inrush Current | 20 A max. |
| Output Voltage | 21.5…36 Vdc |
| Output Current | 700 mA |
| Output Power (nominal) | 15…25.2 W |
| Efficiency | ≥ 86 % Full Load, 240 Vac |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 20…90 % |
| Protection Class | II |
| Type of Protection | IP65 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 103…120 % |
| Overvoltage Protection | Yes * > 46 Vdc |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE，UKCA |
| RoHS Compliant | Yes |
Installation
| Cable Length, input side | 90 ± 5 mm |
| Cable Length, output side | 90 ± 5 mm |
| Cable Cross-Section, input side | 2 x 20 AWG |
| Cable Cross-Section, output side | 2 x 22 AWG |
| Cable Preparation Length, input side | 3 mm tinned |
| Cable Preparation Length, output side | 3 mm tinned |
Dimension

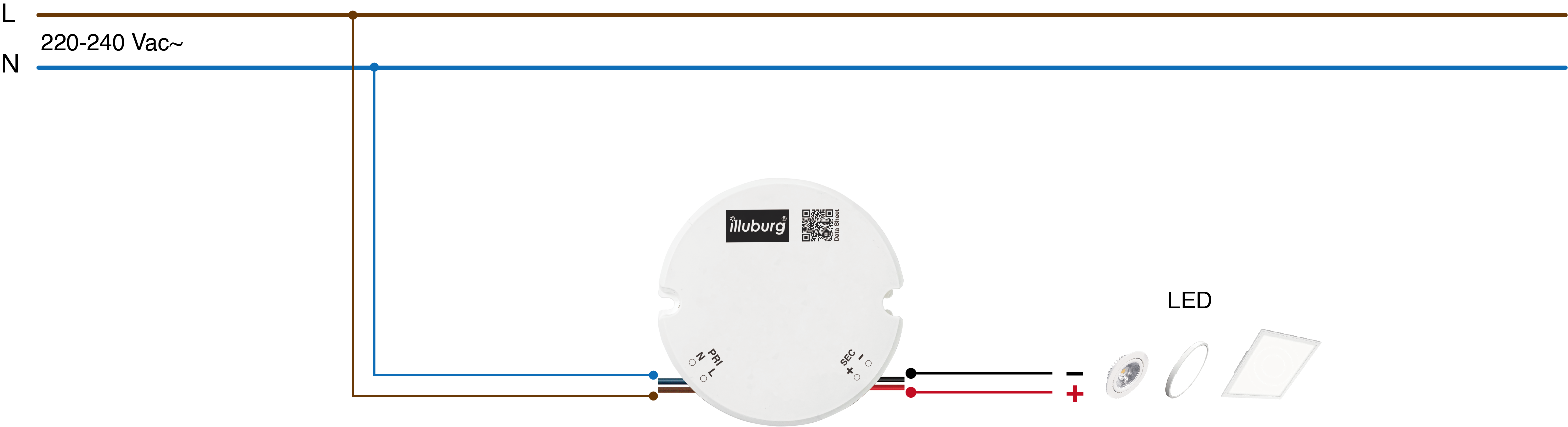

Connection
