| Menge | Preis |
| 1 - 4 | 6,08€ |
| 5 - 9 | 5,99€ |
| 10 - 19 | 5,89€ |
| 20 + | 5,79€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
LS-8CS (8W 120…200mA)
6,08€
In stock
In stock
Description
illuburg LED driver 120-200mA 8W IP20 constant current for LED transformer power supply

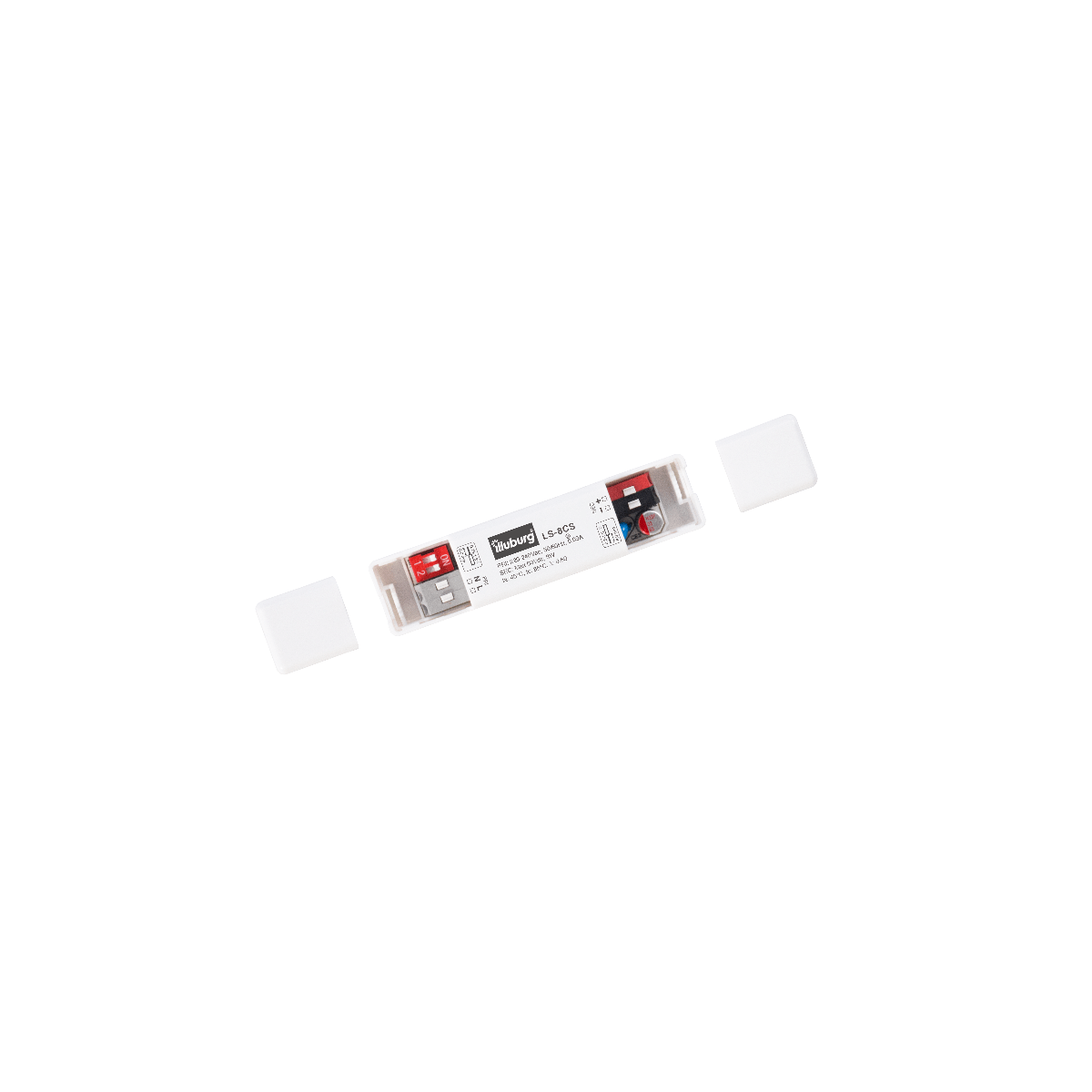

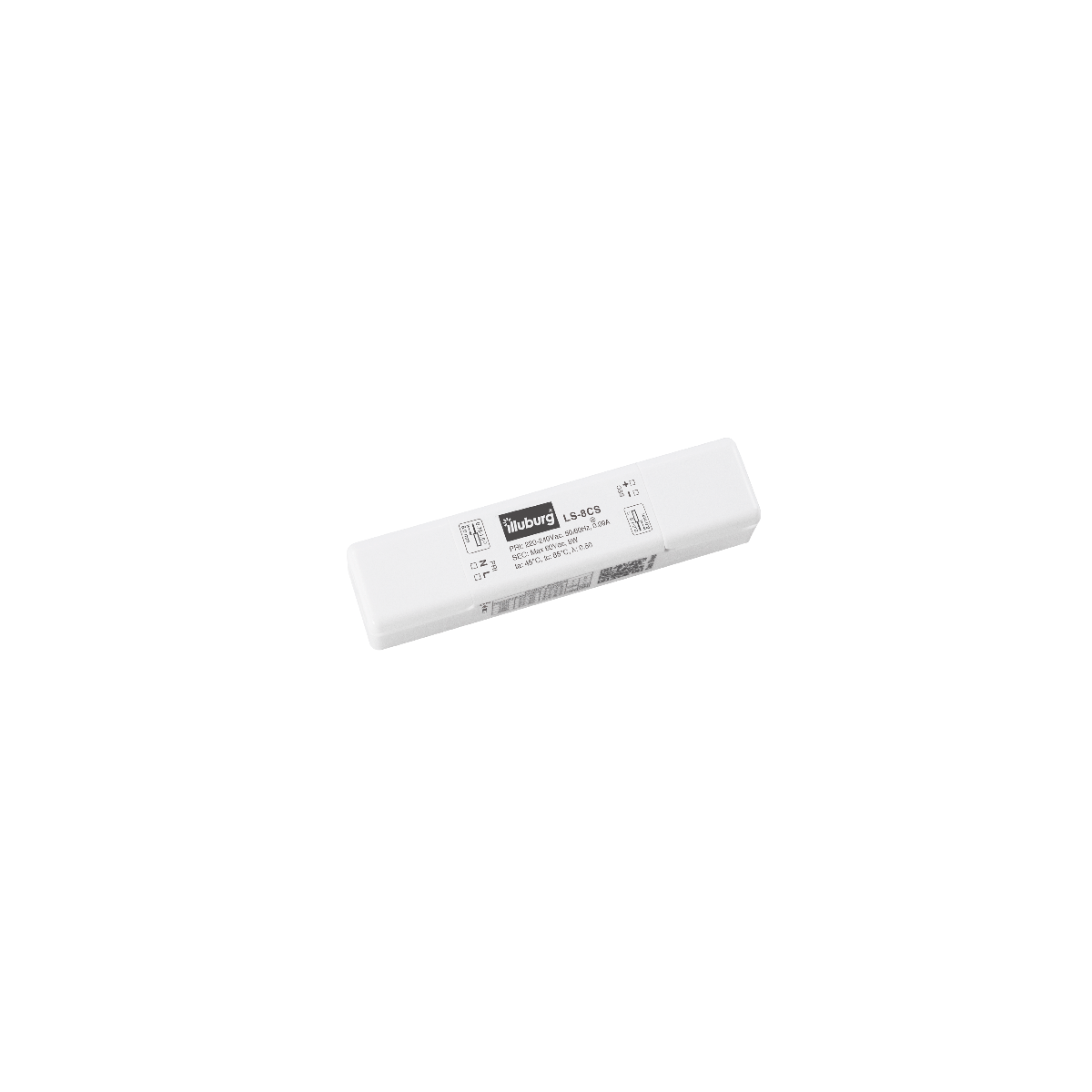

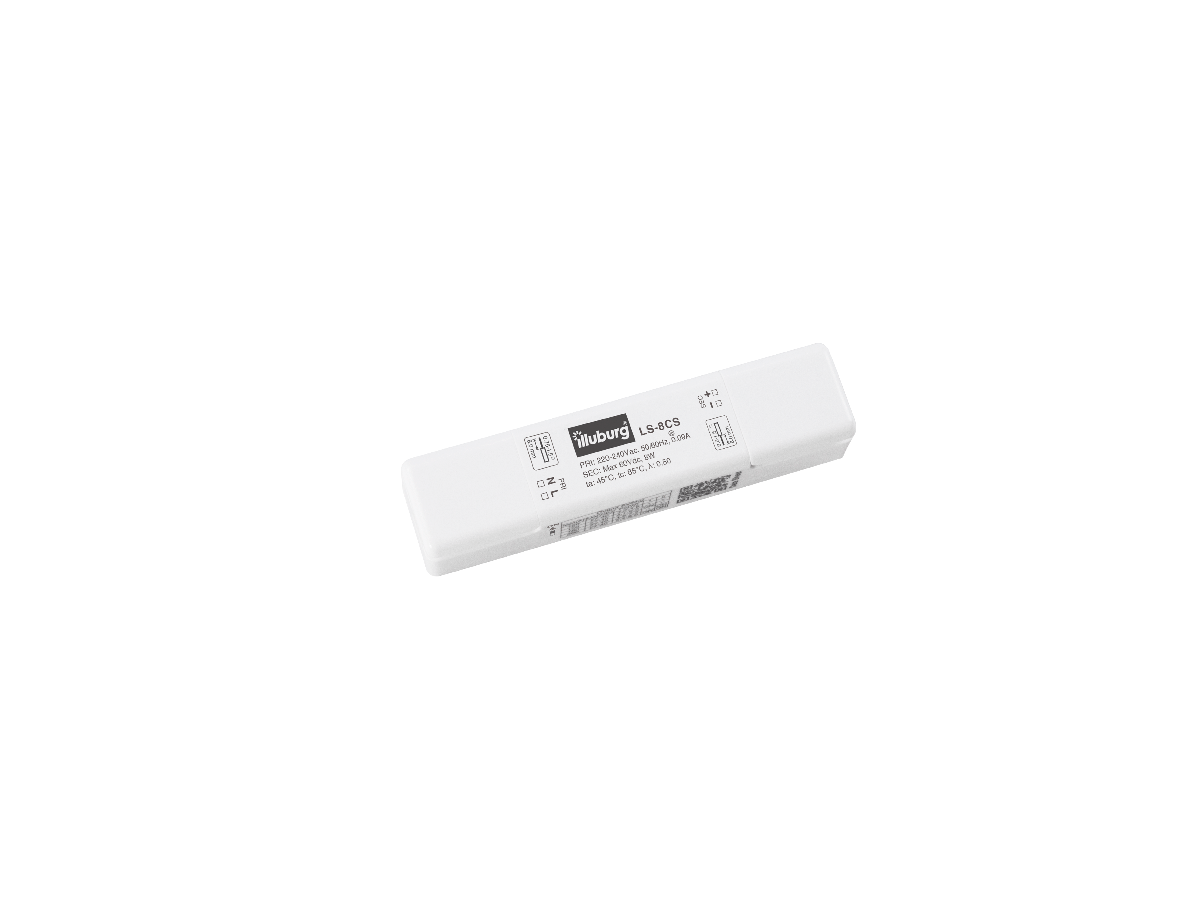

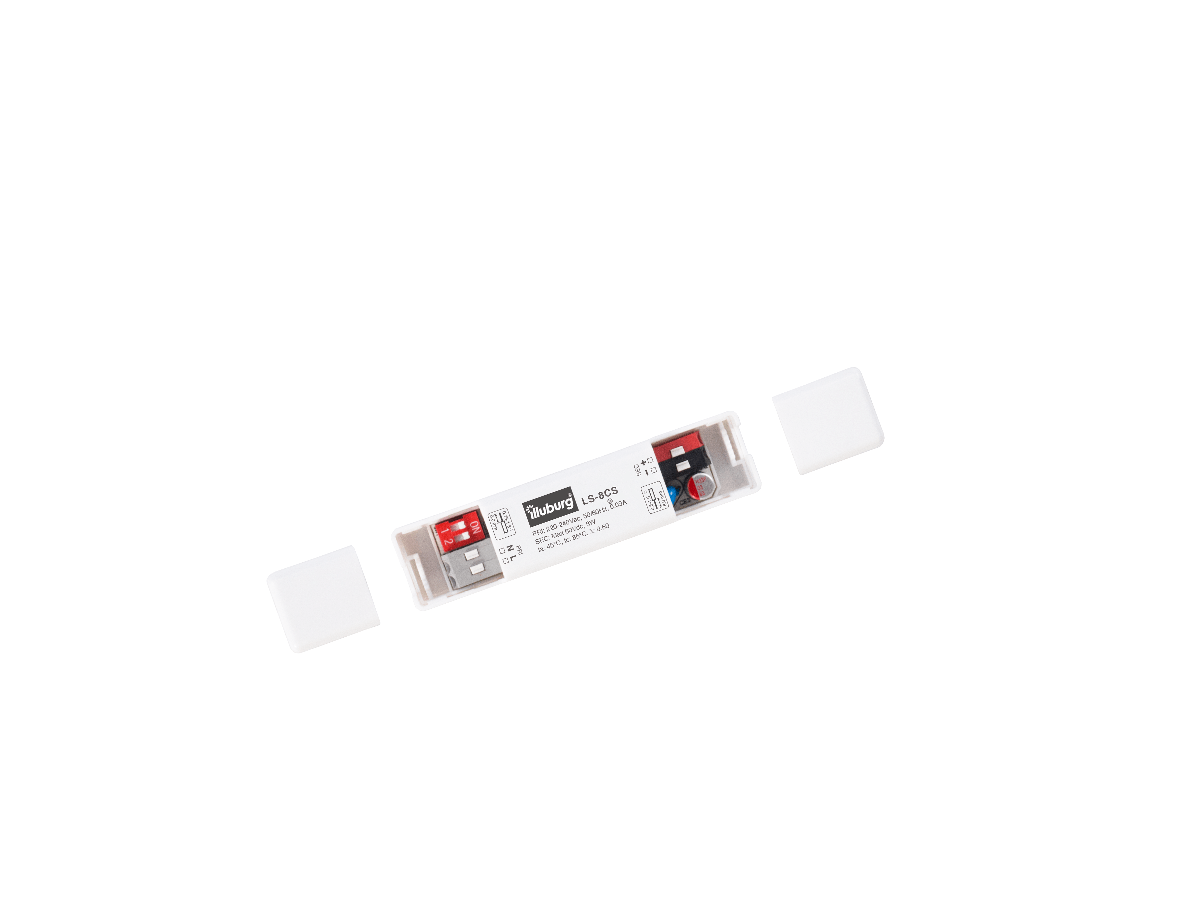

LS-8CS
LED power supply with adjustable output current
27…40 Vdc, 3.3…8 W, IP20, built-in installation, non-dimmable
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.50C |
| Input Current | 0.1 A max. |
| Inrush Current | 5 A max. |
| No-load Loss | < 0.5 W |
| Output Voltage | 27…40 Vdc |
| Output Current | 120 mA, 27…40 Vdc, 3.3…4.8 W 150 mA, 27…40 Vdc, 4.1…6 W 180 mA, 27…40 Vdc, 4.9…7.2 W 200 mA, 27…40 Vdc, 5.4…8 W |
| Efficiency | ≥ 74 % |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP20 |
illuburg LED driver 120-200mA 8W IP20 constant current for LED transformer power supply
Protection
| Short Circuit Protection | Yes * |
| Overcurrent Protection | Yes * |
| Overvoltage Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of installation | Independent installation |
| Type of connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.5…1.5 mm² |
| Cable Preparation Length, input side | 8 mm |
| Cable Preparation Length, output side | 8 mm |
illuburg LED driver 120-200mA 8W IP20 constant current for LED transformer power supply
Dimension
Connection
