LM7-250V24T(24V 250W)

32,89

Out of stock

(0 customer reviews)
MengePreis
1 - 432,89
5 - 931,99
10 - 1931,39
20 +30,69



Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Out of stock

Description

LM7-250V24T

LED power supply for 24 Vdc constant voltage
10.5 A (250 W) max., IP67, built-in installation, non-dimmable

Electrical Data

Input Voltage (nominal)200…240 Vac
Input Voltage (range)176…305 Vac
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.9   220… 240 Vac, 60%-100% Load
Input Current1.22 A    220 Vac
Inrush Current53 A    220 Vac input, 25 °C cold start,
      duration =808 μs, 10% Ipk-10%Ipk.
Leakage Current≤ 0.7 mA    240 Vac/ 60Hz
Output Voltage24 Vdc
Output Current0…10.5 A
Output Power (nominal)250 W max.
Efficiency≥ 93 %   Full Load 25 °C
Life Time96,000 h   220 Vac, 80% Load, 70 °C
DimmableNo



Operating Condition

Operating Ambient Temperature (ta)-40…+50 °C    IEC 61347-1
Max. Surface Temperature (tc)90 °C
Protection ClassClass I
Type of ProtectionIP67



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *
Overvoltage ProtectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

NormenEN 61347-1, EN 61347-2-13
EN 55015, EN 61000-3-2
EN 61000-3-3, EN 61000-4-2
EN 61000-4-3, EN 61000-4-4
EN 61000-4-5, EN 61000-4-6
EN 61000-4-8, EN 61000-4-11
EN 61547
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

Cable Length, input side660 ± 20 mm
Cable Length, output side240 ± 20 mm
Cable Cross-Section, input side3x 1.0 mm²
Cable Cross-Section, output side2x 1.5 mm²
Cable Preparation Length, input side10 mm tinned
Cable Preparation Length, output side10 mm tinned

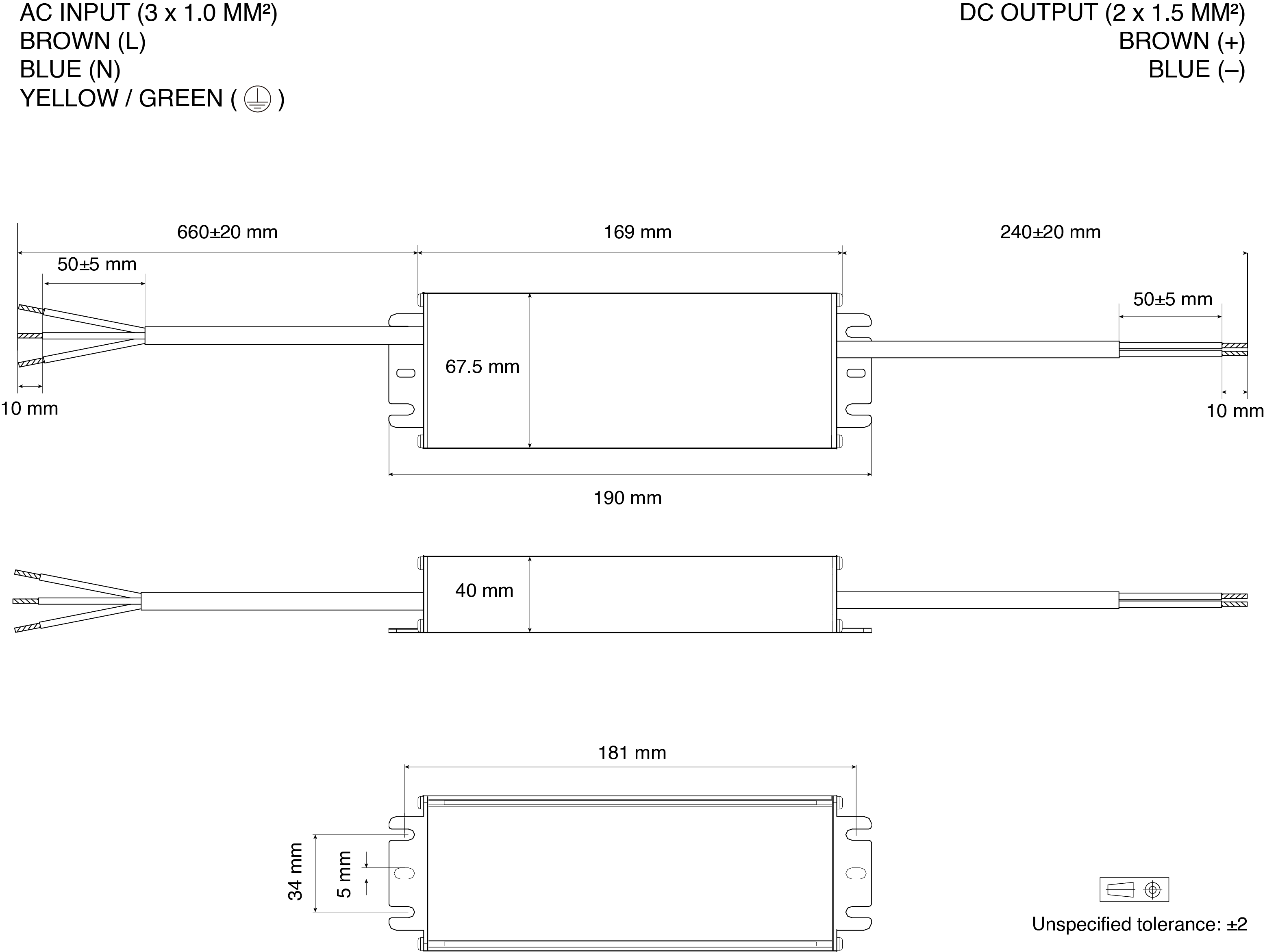

Dimension





Connection



Download
