LED Trafo 24V 180W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
LS-180V24G
LED power supply for 24 Vdc constant voltage
7.5 A (180 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Input voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | >0.95 |
Input Current | 0.89 A max. |
No-load loss | ≤0.5 W |
Inrush Current | 55 A max. |
Output Voltage | 24 Vdc |
Output Current | 0…7.5 A |
Output Power (nominal) | 180 W max. |
Efficiency | ≥ 93 % |
Life Time | > 3 years |
Dimmable | No |
Operating Condition
LED Trafo 24V 150W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Operating Ambient Temperature (ta) | -25…+50 °C |
Max. Surface Temperature (tc) | 90 °C |
Permitted rel. Humidity | 5…85 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overcurrent Protection | Yes * |
Overvoltage protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
LED Trafo 24V 150W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Standards | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547, EN 62384 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Spring-loaded terminal two parallel outputs |
Cable Cross-section, input side | 0.5…1.5 mm² |
Cable Cross-section, output side | 0.5…1.5 mm² |
Cable Preparation length, input side | 7.0…9.0 mm |
Cable Preparation length, output side | 7.0…9.0 mm |

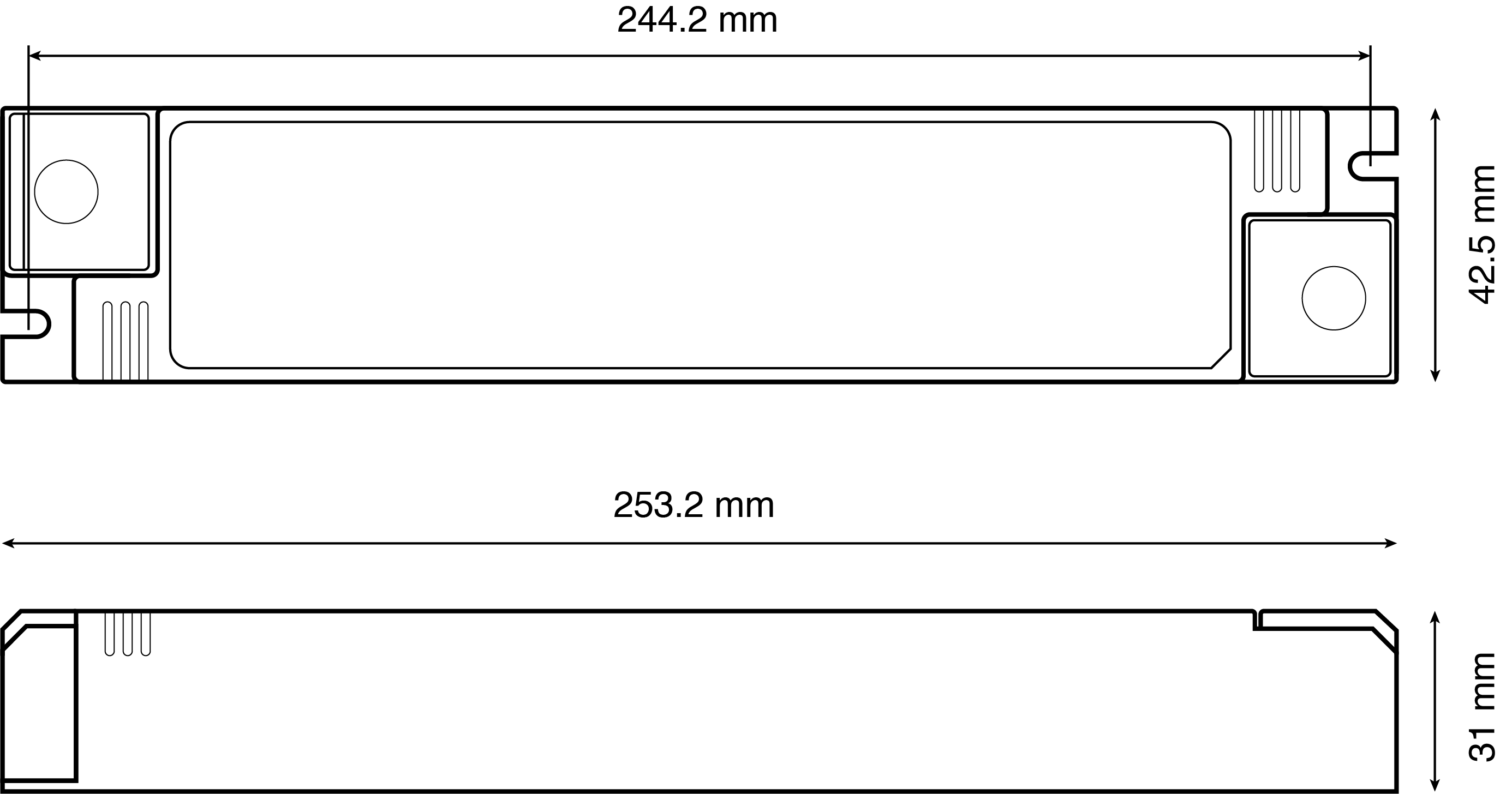

Dimension

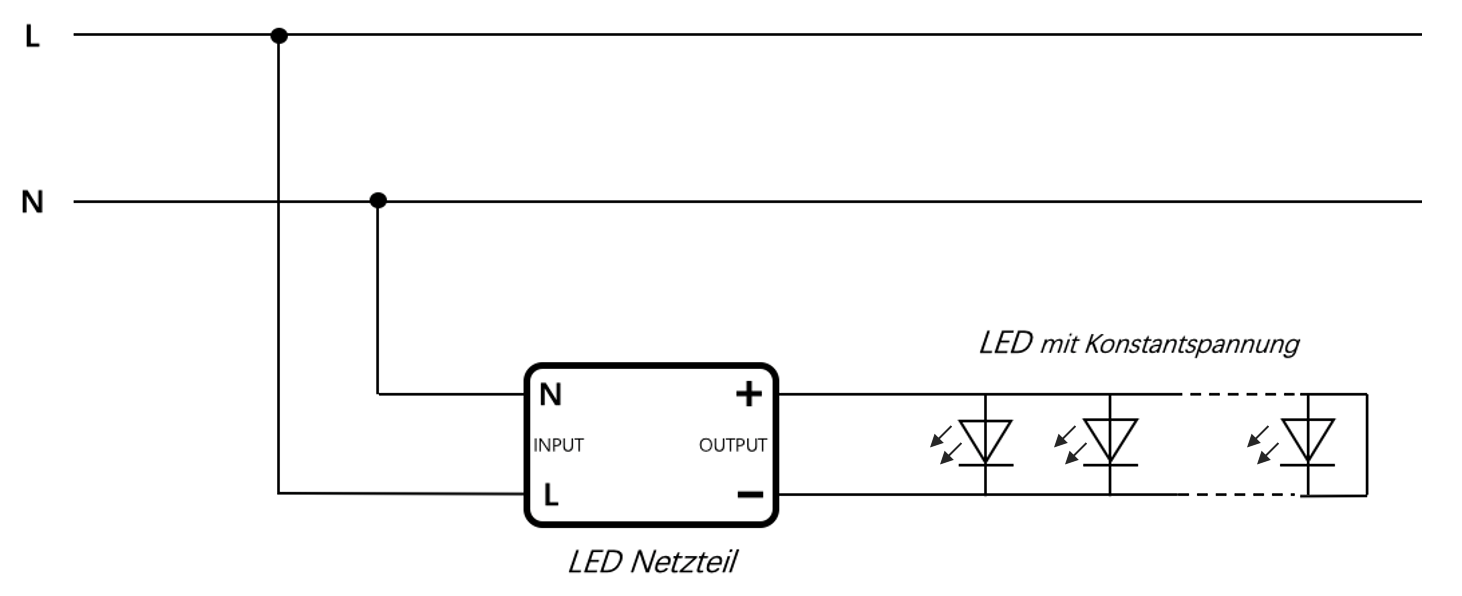

Connection
LED power supply LS-180V24: LED transformer constant voltage, input 220 – 240 V (AC), output 24 V (DC), non-dimmable, flicker-free, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 180 W, parallel connection possible. Our products can be used with full load.
Flicker-free: flicker-free light source provides better eye protection and guarantees high-quality video recording.
Assembly: dimensions 254 x 43 x 31 mm (L x W x H), ambient temperature (ta) -25 – +50 °C. Connection by spring loaded clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device overcurrent protection, overvoltage protection, short circuit protection
Quality: CE, furniture approval; Service life > 30.000 hours; Surface temperature (tc) 90°C.
huatec led transformer power supply driver transformator 24v 24 volt dc constant voltage same voltage flicker-free 180w 180 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 24V 180W constant voltage.
