| Menge | Preis |
| 1 - 4 | 11,97€ |
| 5 - 9 | 11,69€ |
| 10 - 19 | 11,49€ |
| 20 + | 11,29€ |
Price on request for order quantity from 20 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
MI-15V12-DALI2 (12V 15W)
11,97€
In stock
In stock
Description

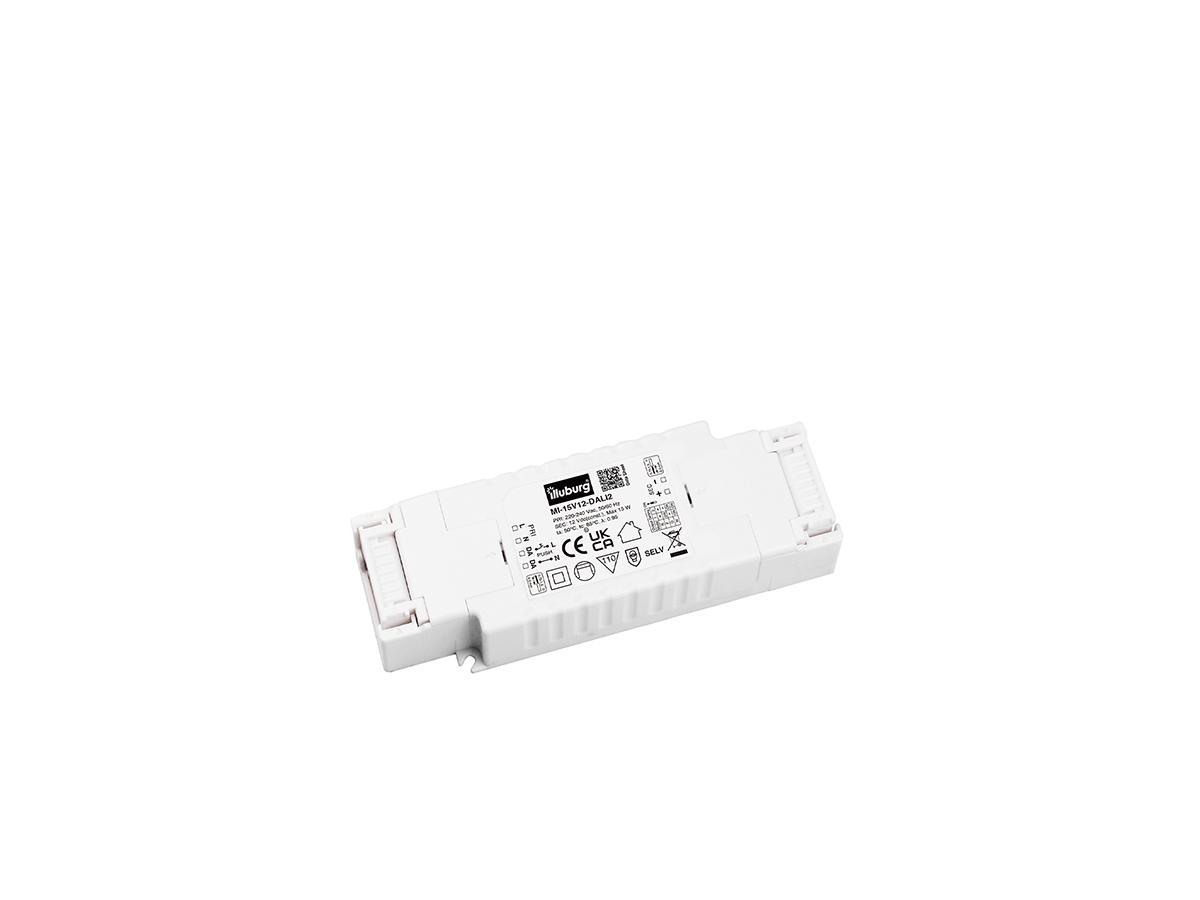

MI-15V12-DALI2
LED power supply for 12 Vdc constant voltage
1.25 A (15W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load, 230 Vac |
| Input Current | 0.1 A max. |
| Inrush Current | 15 A max. |
| Output Voltage | 12 Vdc |
| Output Current | 1.25 A max. |
| Output Power (nominal) | 15 W |
| Output option * | N: LED-Strip O: Osram GU5.3 / MR16 socket P: Philips GU5.3 / MR16 socket W: Other socket * Setting via DIP switches |
| Efficiency | ≥ 83 % Full Load, 230 Vac |
| Life Time | 5 years |
| Dimming mode | DALI, PUSH (pri.) |
Operating Condition
| Operating temperature range (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 10…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Dali Standard (DT-6) | IEC 62386-102, IEC 62386-207 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |

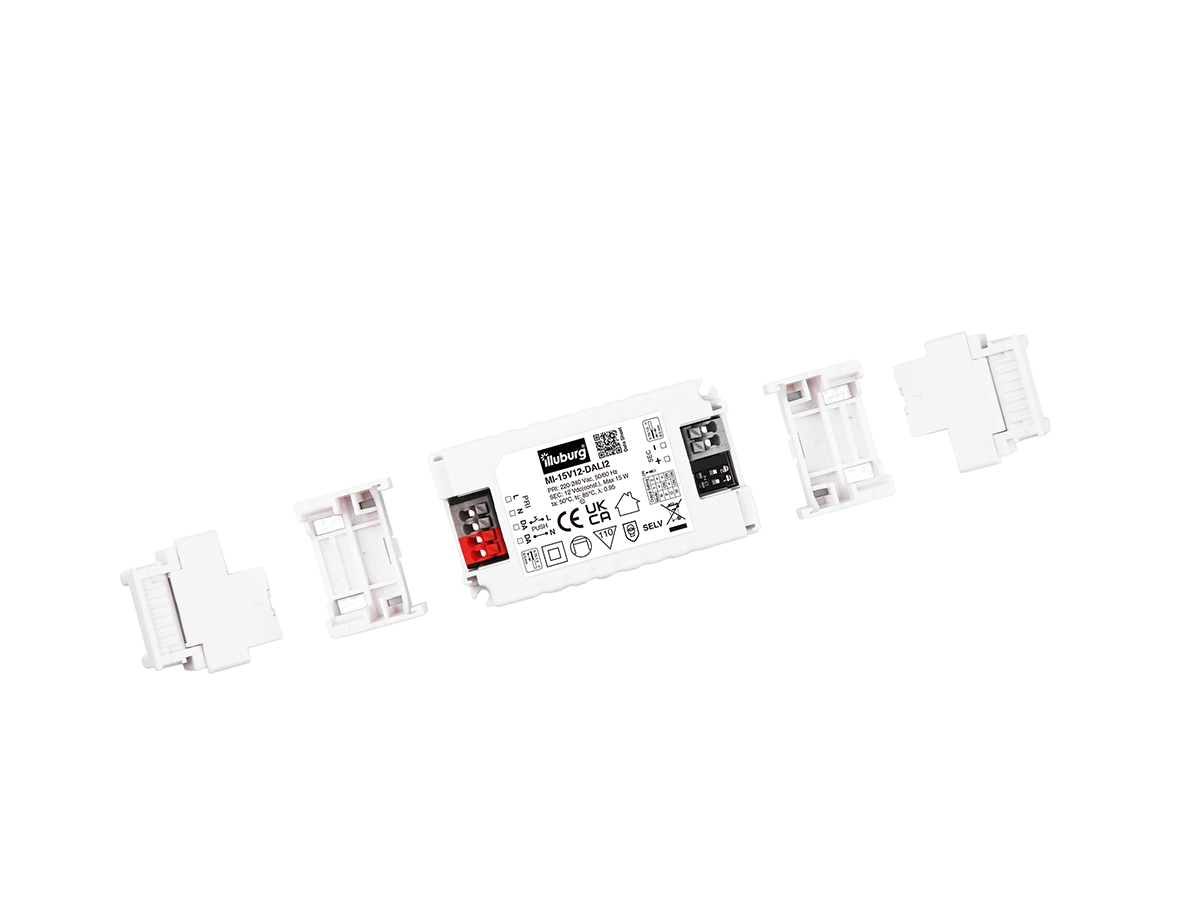

Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 8 mm |
| Cable Preparation Length, output side | 8 mm |
Dimension
Connection
Connection instructions
LED-Netzteil MI-15V12-DALI2: LED Trafo Konstantpannung, Eingang 220 – 240 V (AC), Ausgang 12 V (DC), dimmbar mit DALI2, PUSH(pri.), flackerfrei, unabhängige Installation.
Leistung: Ideal für LEDs (Streifen, Lampen) bis 15 W(für GU5,3 / MR16 oder G4 / MR11 Fassung nicht geeignet), Parallelschaltung möglich. Unsere Produkte können mit Volllast benutzt werden.
Flickerfree: Flackerfreie Lichtquelle bietet besseren Augenschutz und garantiert hochqualitative Videoaufnahme.
Dimmbarkeit: DALI-2, Taster (PUSH, primär) dimmbar, kompatible Dimmer bitte siehe unten die Produktbeschreibung.
Sicherheit & Qualität: Schutzeinrichtung Überlastschutz, Überspannungsschutz, Kurzschlussschutz und Übertemperaturschutz vorhanden.
Montage: Schutzart IP20, Abmessung 150 x 52 x 28 mm (L x B x H), Umgebungstemperatur (ta) -20 – +45 °C, Max. Oberflächentemperatur (tc) 85°C. Einfacher Anschluss durch Schraubklemmen.
huatec eaglerise led trafo netzteil driver treiber transformator 12v 12 volt flickerfree flackerfrei dc konstantspannung gleichspannung 5w 10w 15w 5 10 15 watt dimmbar dimmable led-streifen lampe
LED Trafo 12V 15W dimmbar DALI-2 Push IP20
