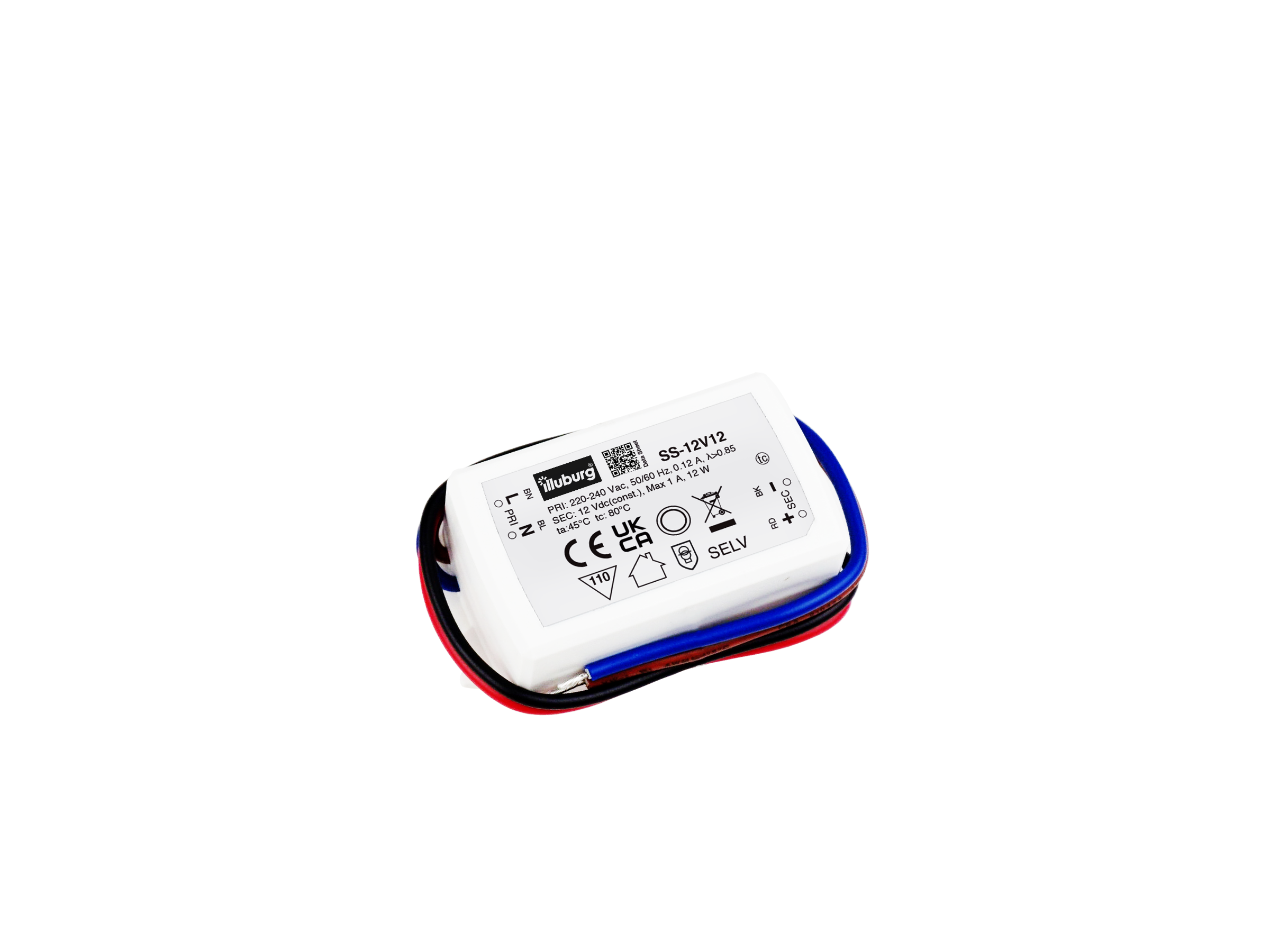

LED Trafo 12V 12W constant voltage for LED Strip Lamp Furniture installation LED Driver Treiber Transformator
SS-12V12
LED power supply for 12 Vdc constant voltage
1 A (12 W) max., IP20, Built-in installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Input voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | >0.85 Full Load, 240 Vac |
Input Current | 0.12 A max. Full Load, 198 Vac |
No-load loss | ≤0.5 W |
Inrush Current | 10 A max. Full Load, 230 Vac |
Leakage Current | < 0.7 mA 240 Vac |
Output Voltage | 12 Vdc 90…264 Vac |
Output Current | 1 A max. |
Output Power (nominal) | 12 W max. |
Efficiency | ≥ 83 % Full Load, 230 Vac |
Life Time | > 30,000 h 45 °C |
Dimmable | No |
Operating Condition
LED Trafo 12V 12W constant voltage for LED Strip Lamp Furniture installation LED Driver Treiber Transformator
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 80 °C |
Permitted rel. Humidity | 20…95 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * 105..150% |
Overvoltage protection | Yes * >12.6 Vdc |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 62384 |
Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 EN 55015, EN 61547 |
Approval Marks | CE |
RoHS Compliant | Yes |
Installation
LED Trafo 12V 12W constant voltage for LED Strip Lamp Furniture installation LED Driver Treiber Transformator
Type of Installation | Built-in installation |
Cable length, input side | 160 ± 5 mm |
Cable length, output side | 160 ± 5 mm |
Cable cross section, input side | 2 x 2.5 mm² (20 AWG) |
Cable cross section, output side | 2 x 2.5 mm² (20 AWG) |
Cable preparation length, input side | 6 mm tinned |
Cable preparation length, output side | 6 mm tinned |
Dimension
Connection
LED power supply SS-12V12: LED transformer constant voltage, input 220 – 240 V (AC), output 12 V (DC), not dimmable, installation installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 12 W, parallel connection possible. We recommend that your application does not exceed 80% of rated power.
Assembly: dimensions 58 x 35 x 23 mm (L x W x H), ambient temperature (ta) -20 – +50 °C.
Safety: Protection class IP20, protection device overload protection, surge protection, short circuit protection and overtemperature protection.
Quality: CE mark; Service life > 30.000 hours; Surface temperature (tc) 80°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage 12w 12 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 12W constant voltage compact size.
