SS-30V24 (24V 30W)

8,61

In stock

MengePreis
1 - 48,61
5 - 98,49
10 - 198,39
20 +8,29



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

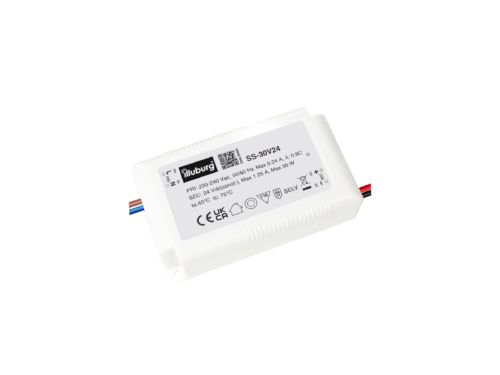

Illuburg LED Driver 24V 30W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer

SS-30V24

LED power supply for 24 Vdc constant voltage
1.25 A (30 W) max., IP20, Built-in installation, non-dimmable
Flickerfree according to IEEE 1789

Electrical Data

Input voltage (nominal)220…240 Vac
Input voltage (range)198…264 Vac
Mains frequency50/60 Hz
Power factor (λ)≥0.9 C   Full Load, 230 Vac
Input current0.24 A max.   Full Load, 198 Vac
No-load loss≤ 0.5 W
Output voltage24 Vdc
Output current0…1.25 A
Output power (nominal)30 W max.
Efficiency≥ 85 %
Life time> 30,000 h
DimmableNo



Operating Condition

LED Driver 24V 30W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer

Operating ambient temperature (ta)-20…+45 °C
Max. surface temperature (tc)75 °C
Permitted rel. humidity20…60 %
Protection classII
Type of protectionIP20



Protection

Short circuit protectionYes *
Overload protectionYes *   105…150 %
Overvoltage protectionYes *   > 25.2 Vdc
Overheating protectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 62384, EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
Approval marksCE, UKCA
RoHS compliantYes



Installation

LED Driver 24V 30W Flickerfree for LED Strip G4 GU5,3 MR11 MR16 Built-in LED Power Supply Transformer

Cable length, input side135 ± 5 mm
Cable length, output side135 ± 5 mm
Cable cross section, input side2 x 0.5 mm² (20 AWG)
Cable cross section, output side2 x 0.5 mm² (20 AWG)
Cable preparation length, input side6 mm tinned
Cable preparation length, output side6 mm tinned



Dimension





Connection



LED POWER SUPPLY SS-30V24: input voltage 220 – 240 V (AC), output voltage 24 V (DC), not dimmable, built-in installation.
OUTPUT POWER: for LED (strips, lamps) up to 30 W, parallel connection is possible. Our products can be used at full load.
FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.
INSTALLATION: protection type IP20, dimension 95 x 53 x 33 mm (L x W x H), operating temperature (ta) -20 – +45 °C, max. surface temperature (tc) 75 °C.
SECURITY & QUALITY: equipped with overload protection, short circuit protection, overvoltage protection and overheating protection. Certification CE, UKCA, durability > 30.000 hours.
illuburg led driver transformer power supply 24v 24 volt 15w 20w 30w 15 20 30 watt constant voltage flickerfree led strip lamp
LED transformer 24V 30W constant voltage
