Menge | Preis |
1 - 4 | 5,24€ |
5 - 9 | 5,09€ |
10 - 19 | 4,99€ |
20 + | 4,89€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
5,24€
Out of stock
Menge | Preis |
1 - 4 | 5,24€ |
5 - 9 | 5,09€ |
10 - 19 | 4,99€ |
20 + | 4,89€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
Out of stock

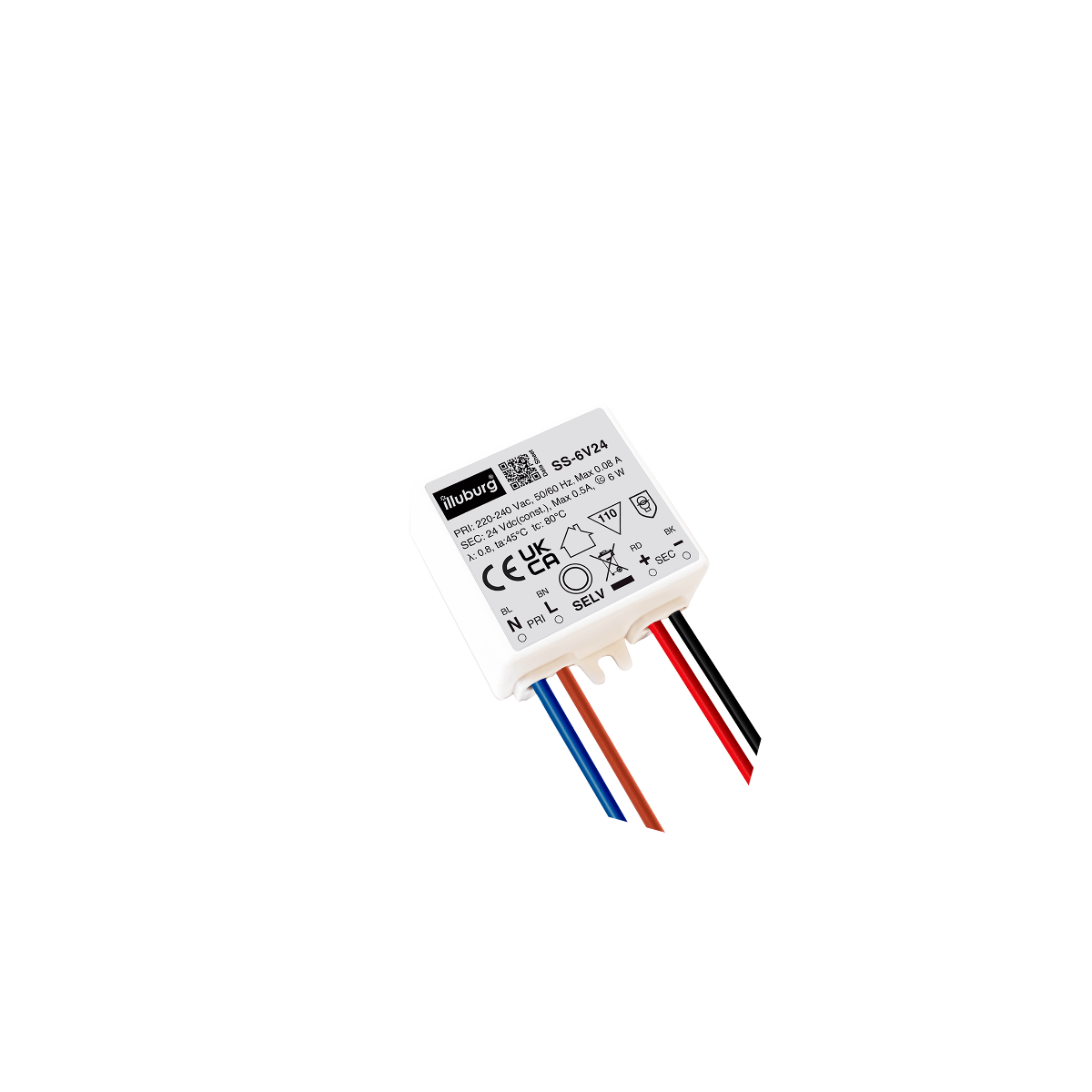

Illuburg LED Driver 24V 6W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
SS-6V24
LED power supply for 24 Vdc constant voltage
0,25 A (6 W) max., IP20, Built-in installation, non-dimmable
Flickerfree according to IEEE 1789
Electrical Data
Rated input voltage | 220…240 Vac |
Range of input voltage | 198…264 Vac |
Range of input voltage (DC) | 176…280 Vac |
Mains frequency | 50/60 Hz |
Power factor (λ) | ≥ 0.75 C Full Load, 230 Vac |
Input current | 0.08 A max. Full Load, 198 Vac |
No-load loss | ≤ 0.5 W |
Inrush current | 10 A max. |
Leakage current | < 0.7 mA 240 Vac |
Output voltage | 24 Vdc |
Output current | 0…0.25 A max. |
Output power (nominal) | 6 W max. |
Efficiency | ≥ 75 % |
Life time | > 50.000 h |
Dimmable | No |
Operating Condition
LED Driver 24V 6W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
Operating ambient temperature (ta) | -20…+45 °C |
Max. surface temperature (tc) | 80 °C |
Permitted rel. humidity | 20…90 % |
Protection class | II |
Type of protection | IP20 |
Protection
Short circuit protection | Yes * |
Overload protection | Yes * 105…150 % |
Overvoltage protection | Yes * >25.2 Vdc |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
Approval marks | CE, UKCA |
RoHS compliant | Yes |
Installation
LED Driver 24V 6W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
Cable length, input side | 160 ± 5 mm |
Cable length, output side | 160 ± 5 mm |
Cable cross section, input side | 2 x 0.5 mm² (20 AWG) |
Cable cross section, output side | 2 x 0.34 mm² (22 AWG) |
Cable preparation length, input side | 6 mm tinned |
Cable preparation length, output side | 6 mm tinned |
Dimension
Connection
LED POWER SUPPLY SS-6V24: input voltage 220 – 240 V (AC), output voltage 24 V (DC), not dimmable, built-in installation.
OUTPUT POWER: for LED (strips, lamps) up to 6 W, parallel connection is possible. Our products can be used at full load.
FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.
INSTALLATION: protection type IP20, dimension 52 x 43 x 21 mm (L x W x H), operating temperature (ta) -20 – +45 °C, max. surface temperature (tc) 80 °C.
SECURITY & QUALITY: equipped with overload protection, short circuit protection and overvoltage protection. Certification CE, UKCA, durability > 44.000 hours.
illuburg led driver transformer power supply 24v 24 volt 4w 5w 6w 4 5 6 watt constant voltage flickerfree led strip lamp
LED transformer 24V 6W constant voltage
