24Vdc, DALI dimmable, 45W, IP20, 168x38x30mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 17,99€ |
| 5 - 9 | 17,69€ |
| 10 - 19 | 17,39€ |
| 20 + | 17,09€ |
LS-45V24E-DALI2 (24V 45W)
17,99€
In stock
In stock
Description

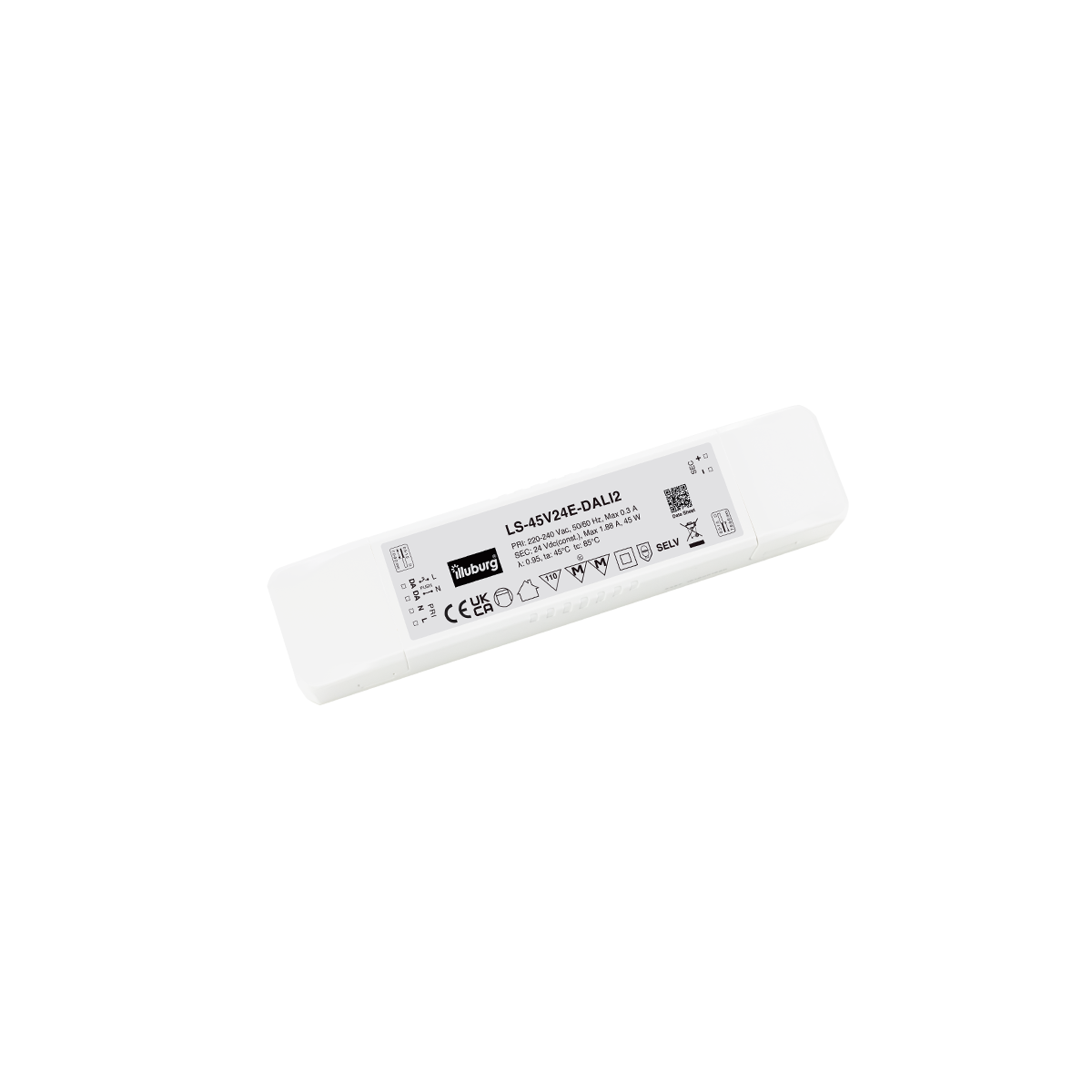

LS-45V24E-DALI2
LED power supply for 24 Vdc constant voltage
1.88 A (45W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 |
| Input Current | 0.3 A max. |
| Inrush Current | 24.4 A max. |
| Output Voltage | 24 Vdc |
| Output Current | 1.88 A max. |
| Output Power (nominal) | 45 W max. |
| Efficiency | ≥ 87 % |
| Life Time | > 50,000 h |
| Dimming mode | DALI-2 (1-100%) Primary PUSH (1-100%) |
Operating Condition
| Operating temperature range (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 20…90 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 105…150 % |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3, EN 62493 |
| Dali Standard (DT-6) | EN 62386-101, EN 62386-102, EN 62386-207 |
| Approval Marks | CE, UKCA |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 1.0…1.5 mm² |
| Cable Cross-Section, output side | 1.0…1.5 mm² |
| Cable Preparation Length, input side | 7.0…9.0 mm |
| Cable Preparation Length, output side | 7.0…9.0 mm |

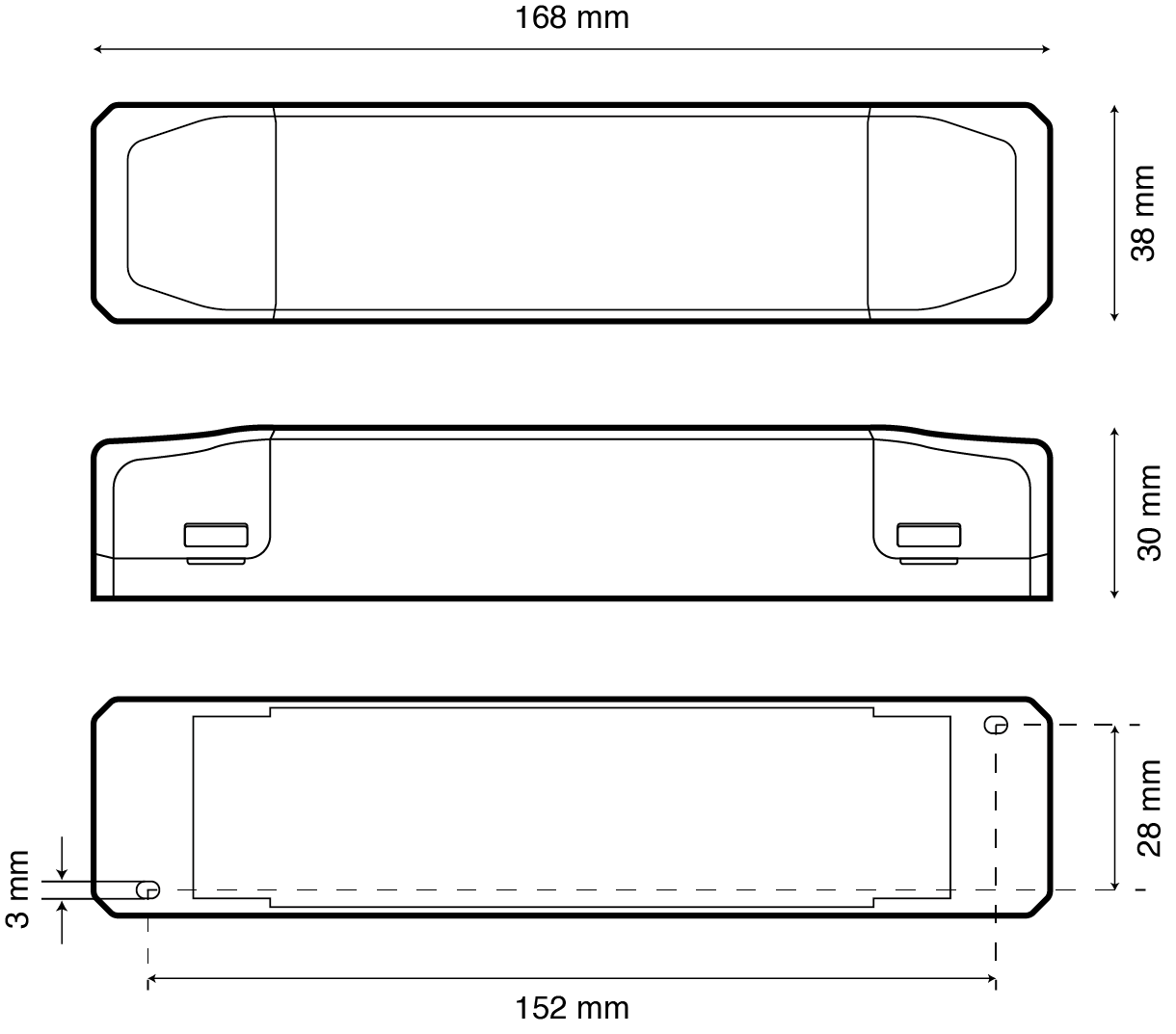

Dimension

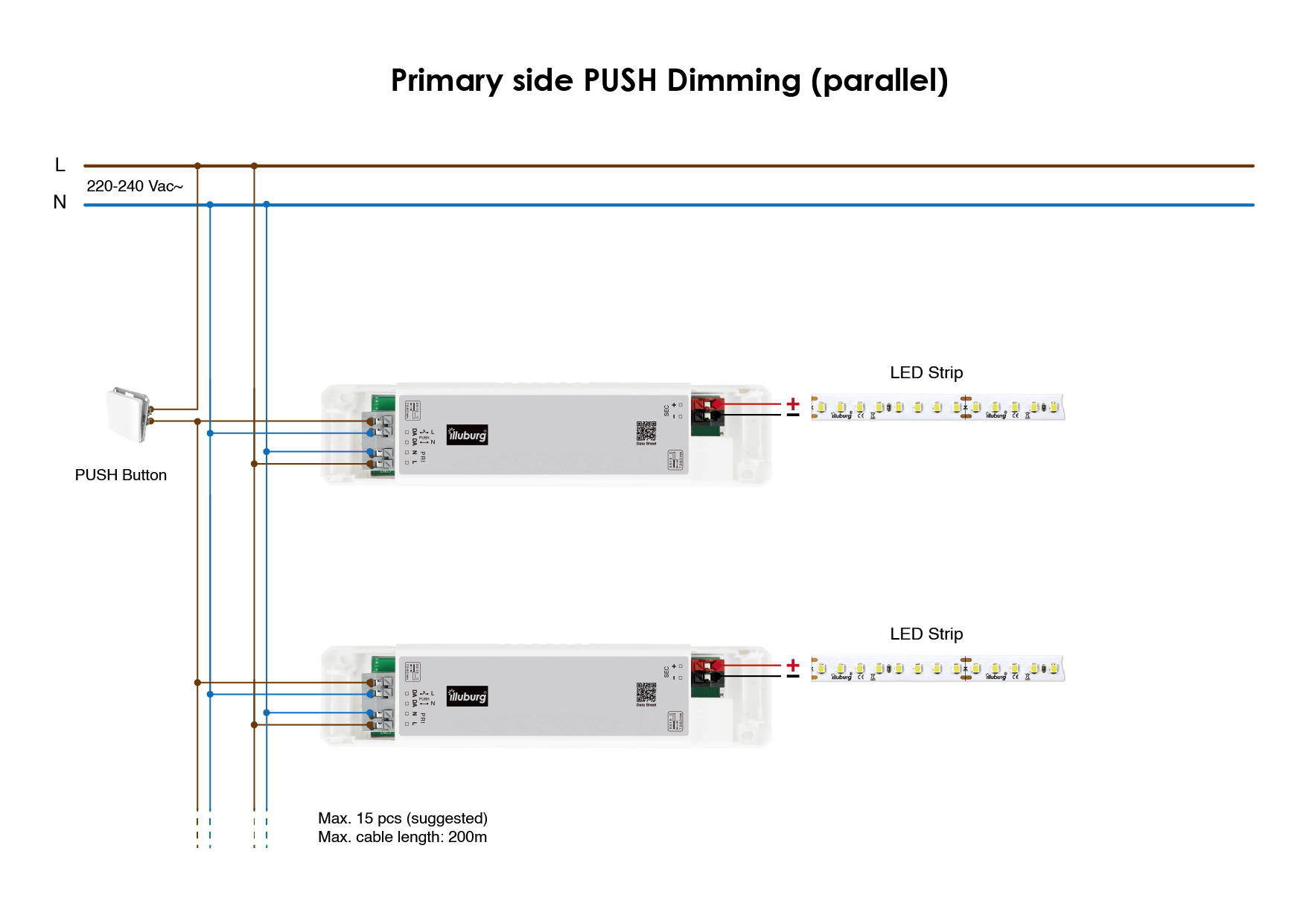

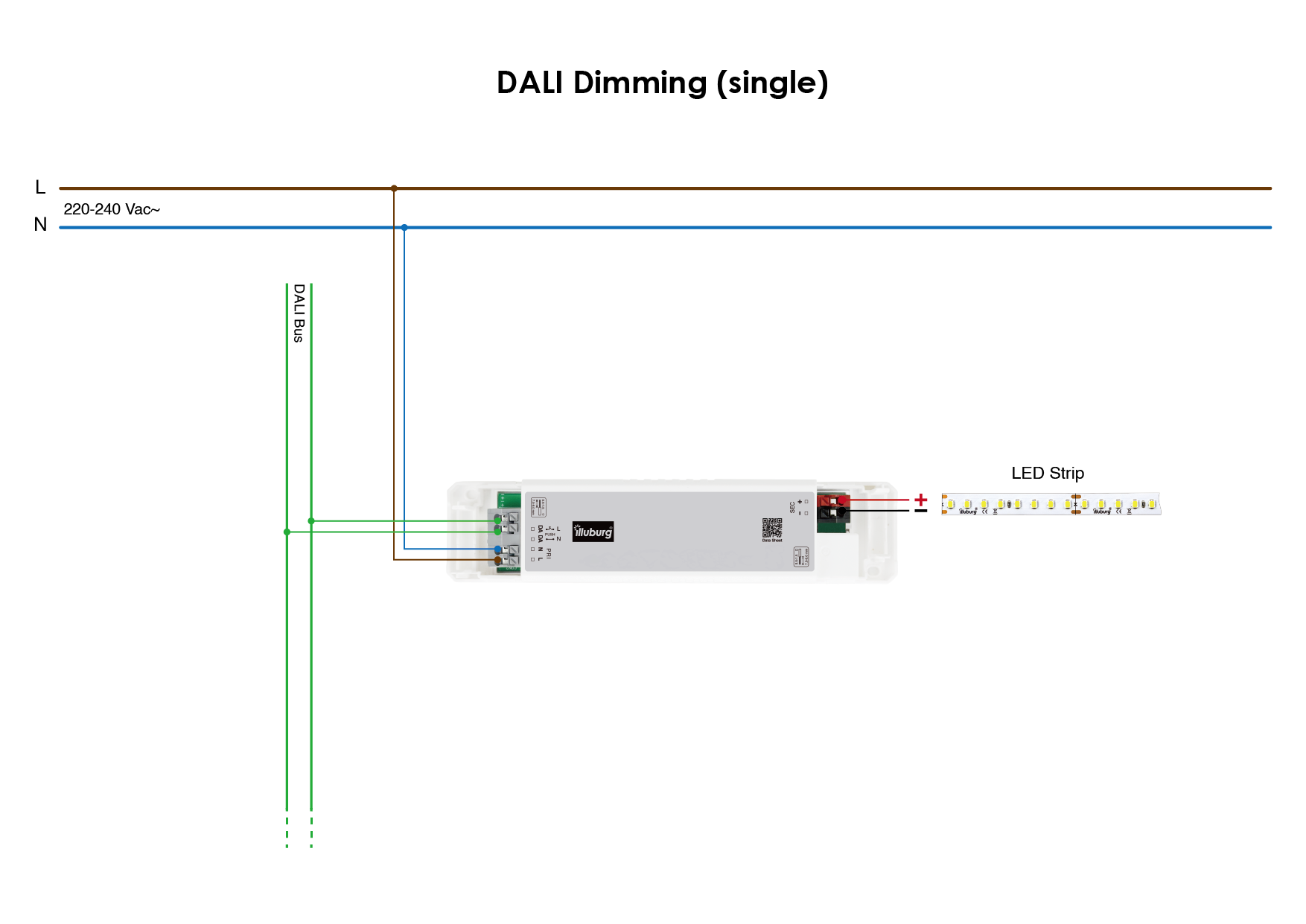

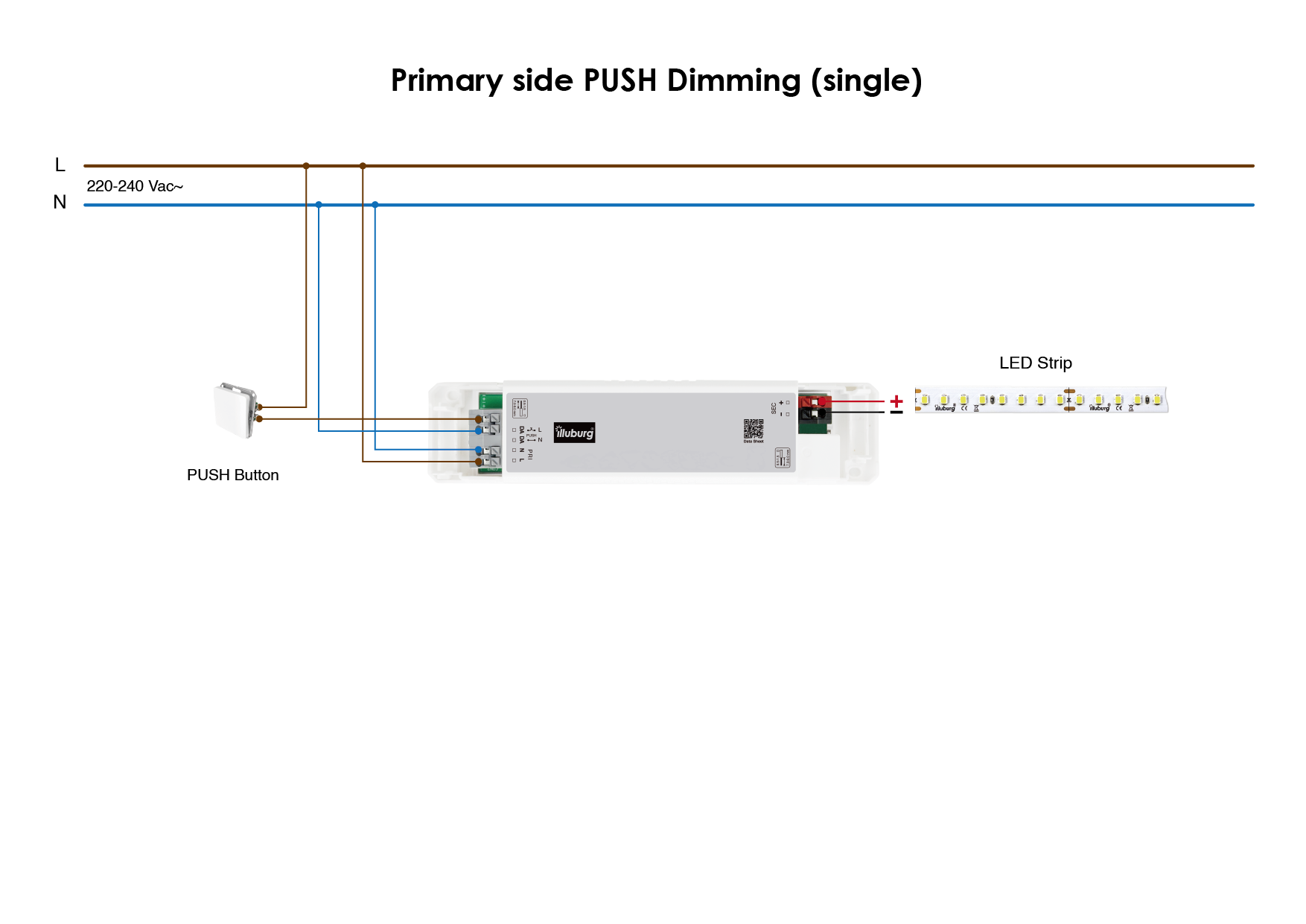

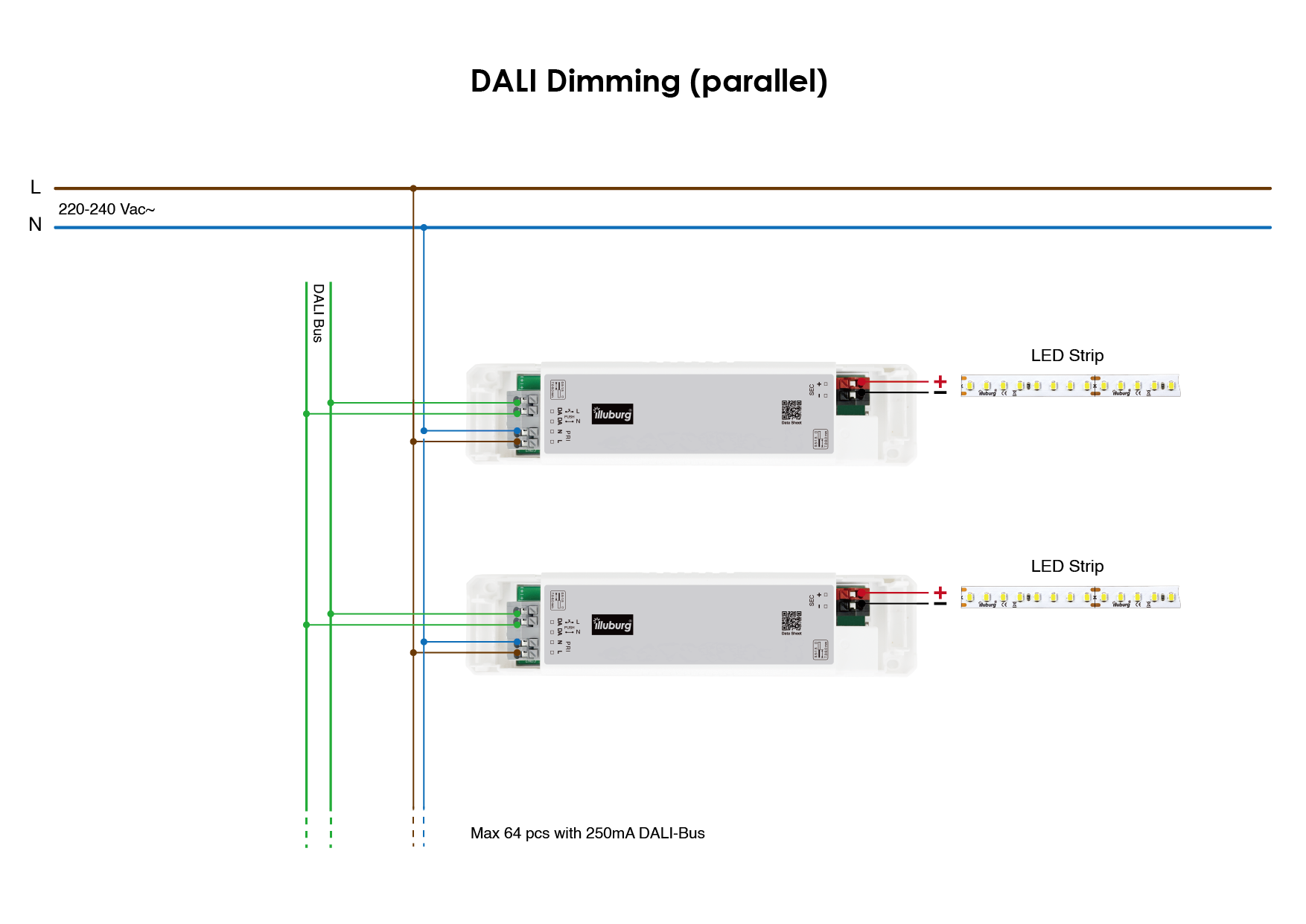

Connection
