SS-12V24 (24V 12W)
6,08€
In stock
In stock
Description

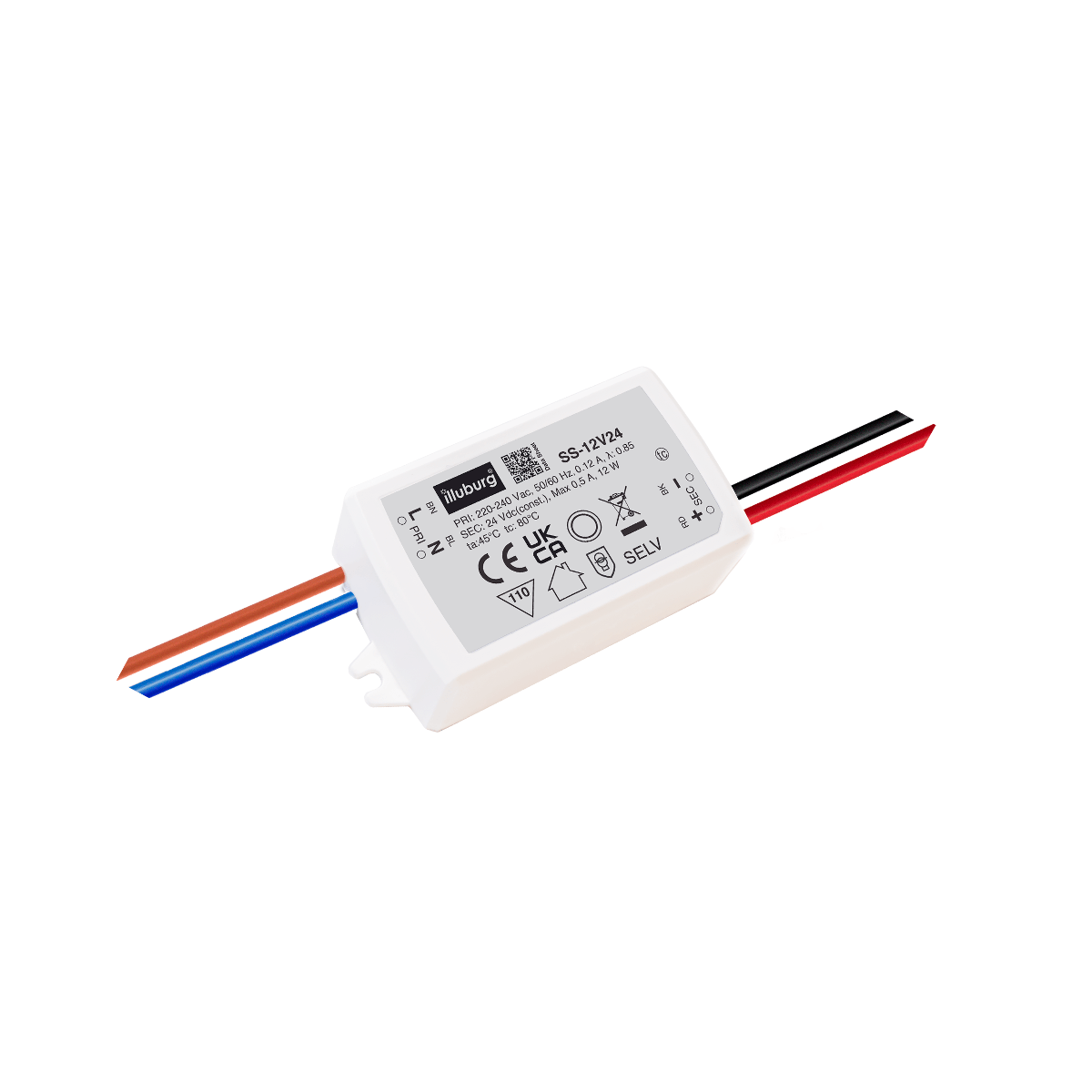

Illuburg LED Driver 24V 12W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
SS-12V24
LED power supply for 24 Vdc constant voltage
0,5 A (12 W) max., IP20, Built-in installation, non-dimmable
Flickerfree according to IEEE 1789
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 198…264 Vac |
| Mains frequency | 50/60 Hz |
| Power factor (λ) | >0.85C Full Load, 230 Vac |
| Input current | 0.12 A max. Full Load, 198 Vac |
| No-load loss | ≤0.5 W |
| Inrush current | 10 A max. Full Load, 230 Vac |
| Leakage current | <0.7 mA 240 Vac |
| Output voltage | 24 Vdc |
| Output current | 0,5 A max. |
| Output power (nominal) | 12 W max. |
| Efficiency | ≥ 83 % Full Load, 230 Vac |
| Life time | > 50.000 h |
| Dimmable | No |
Operating Condition
LED Driver 24V 12W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
| Operating ambient temperature (ta) | -20…+45 °C |
| Max. surface temperature (tc) | 80 °C |
| Permitted rel. humidity | 20…90 % |
| Protection class | II |
| Type of protection | IP20 |
Protection
| Short circuit protection | Yes * |
| Overload protection | Yes * 105…150 % |
| Overvoltage protection | Yes * >12.6 Vdc |
| Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62384, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval marks | CE, UKCA |
| RoHS compliant | Yes |
Installation
LED Driver 24V 12W Flickerfree for LED Strip Lamp Built-in LED Power Supply Transformer
| Cable length, input side | 160 ± 5 mm |
| Cable length, output side | 160 ± 5 mm |
| Cable cross section, input side | 2 x 0.5 mm² (20 AWG) |
| Cable cross section, output side | 2 x 0.5 mm² (20 AWG) |
| Cable preparation length, input side | 6 mm tinned |
| Cable preparation length, output side | 6 mm tinned |
Dimension
Connection
LED POWER SUPPLY SS-12V24: input voltage 220 – 240 V (AC), output voltage 24 V (DC), not dimmable, built-in installation.
OUTPUT POWER: for LED (strips, lamps) up to 12 W, parallel connection is possible. Our products can be used at full load.
FLICKERFREE: flickerfree light source provides better eye protection and ensures high quality video recording.
INSTALLATION: protection type IP20, dimension 69 x 35 x 23 mm (L x W x H), operating temperature (ta) -20 – +45 °C, max. surface temperature (tc) 80 °C.
SECURITY & QUALITY: equipped with overload protection, short circuit protection, overvoltage protection and overheating protection. Certification CE, UKCA, durability > 30.000 hours.
illuburg led driver transformer power supply 24v 24 volt 8w 9w 10w 12w 8 9 10 12 watt constant voltage flickerfree led strip lamp
LED transformer 24V 12W constant voltage
